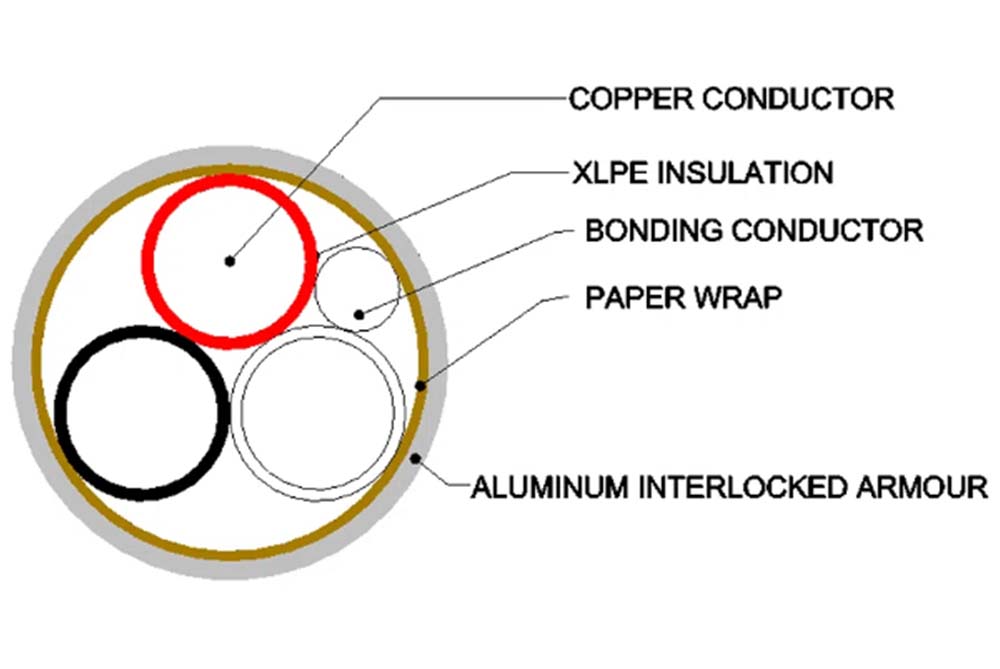

| AC90 600V – 3 Copper Conductors | ||
| Voltage: | 600V | |
| Structure: | Conductor | Solid Soft Copper, ASTM B3 |
| Insulation | Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free | |
| Bonding Conductor | Solid ASTM B3 Soft Bare Copper | |
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour | |
| Sheath Colour | 2 Core: Black White 2 Core: Black Red 3 Core: Black White Red 4 Core: Black White Red and Blue |
|
AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance. For use in ventilated, non-ventilated and ladder-type cable trays. For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.
600V
-40°C to 90°C
Industry compliances: CSA Standard C22.2 No. 51, No.38 and No.2256, RoHS
Flame test compliances: CSA ST1 and FT4
Solid Soft Copper, ASTM B3
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Solid ASTM B3 Soft Bare Copper
Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
2 Core: Black White
2 Core: Black Red
3 Core: Black White Red
4 Core: Black White Red and Blue
| CONDUCTOR SIZE | GROUND SIZE | INSULATION THICKNESS | CABLE DIAMETER | CABLE WEIGHT | MAX PULLING TENSION | MIN. BEND RADIUS | AMPACITY (A) |
| 14/1 AWG | 14/1 AWG | 0.030 in. | 0.445 in. | 105 lbs/Mft | 99 lbs | 6.2 in. | 25 |
| 0.76 mm | 11.3 mm | 156 kg/km | 45 kg | 158 mm | |||
| 12/1 AWG | 14/1 AWG | 0.030 in. | 0.490 in. | 130 lbs/Mft | 157 lbs | 6.9 in. | 30 |
| 0.76 mm | 12.4 mm | 193 kg/km | 71 kg | 174 mm | |||
| 10/1 AWG | 12/1 AWG | 0.030 in. | 0.535 in. | 182 lbs/Mft | 249 lbs | 7.5 in. | 40 |
| 0.76 mm | 13.6 mm | 271 kg/km | 113 kg | 190 mm | |||
| 8/7 AWG | 10/7 AWG | 0.045 in. | 0.714 in. | 309 lbs/Mft | 418 lbs | 10.0 in. | 55 |
| 1.14 mm | 18.1 mm | 460 kg/km | 190 kg | 254 mm | |||
| 6/7 AWG | 8/7 AWG | 0.045 in. | 0.770 in. | 417 lbs/Mft | 702 lbs | 10.8 in. | 75 |
| 1.14 mm | 19.6 mm | 621 kg/km | 318 kg | 274 mm | |||
| 4/7 AWG | 8/7 AWG | 0.045 in. | 0.940 in. | 601 lbs/Mft | 1193 lbs | 13.2 in. | 95 |
| 1.14 mm | 23.9 mm | 894 kg/km | 541 kg | 334 mm | |||
| 3/7 AWG | 6/7 AWG | 0.045 in. | 0.990 in. | 721 lbs/Mft | 1622 lbs | 13.9 in. | 115 |
| 1.14 mm | 25.1 mm | 1073 kg/km | 736 kg | 352 mm | |||
| 2/7 AWG | 6/7 AWG | 0.045 in. | 1.040 in. | 891 lbs/Mft | 1922 lbs | 14.6 in. | 130 |
| 1.14 mm | 26.4 mm | 1326 kg/km | 872 kg | 370 mm |
