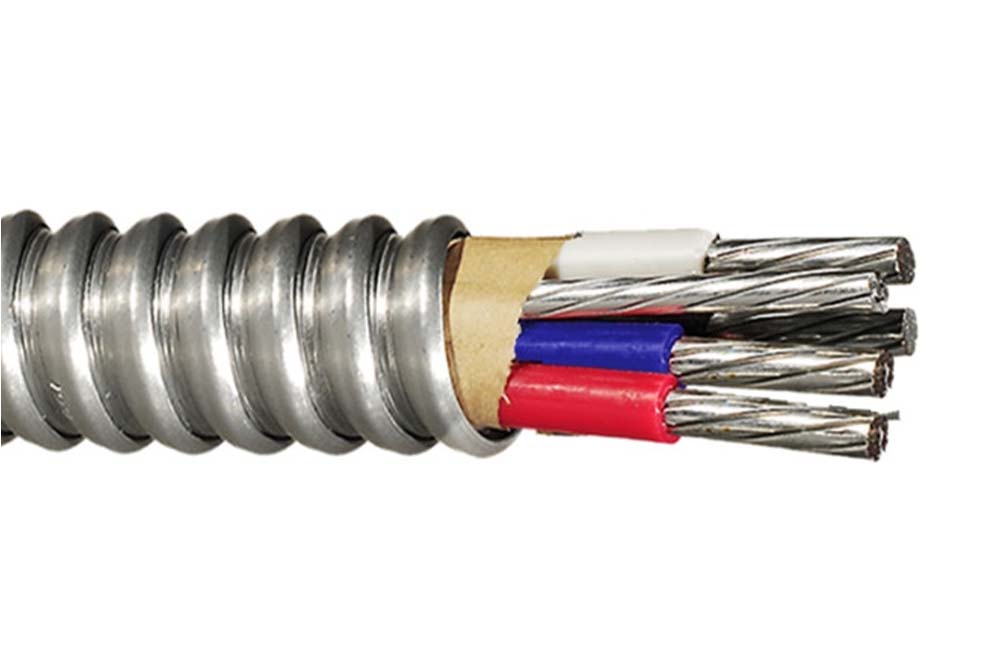

| AC90 600V – 4 Aluminum Conductors | ||
| Voltage: | 600V | |

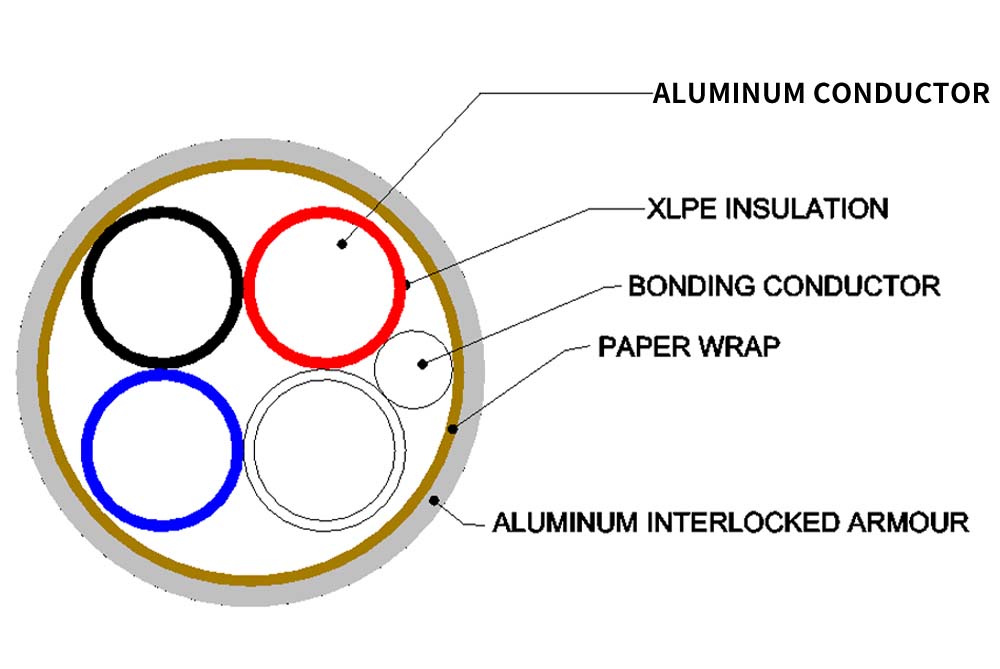

| Structure: | Conductor | Stranded AA-8000 Series Aluminum Alloy (ACM) |
| Insulation | Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free | |
| Bonding Conductor | Stranded AA-8000 Series Aluminum Alloy (ACM) | |
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour | |
| Sheath Colour | 3 Core: Black White Red 4 Core: Black White Red and Blue |
|
AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance. For use in ventilated, non-ventilated and ladder-type cable trays. For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.
600V
-40°C to 90°C
Industry compliances: CSA Standard C22.2 No. 51, No.38 and No.2256, RoHS
Flame test compliances: CSA ST1 and FT4
Stranded AA-8000 Series Aluminum Alloy (ACM)
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Stranded AA-8000 Series Aluminum Alloy (ACM)
Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
3 Core: Black White Red
4 Core: Black White Red and Blue
| PART NO. | CONDUCTOR SIZE | GROUND SIZE | INSULATION THICKNESS | CABLE DIAMETER | CABLE WEIGHT | MAX. PULLING TENSION | MIN. BEND RADIUS | AMPACITY (A) |
| 9030404 | 4 AWG | 6 AWG | 0.045 in. | 0.937 in. | 405 lbs/Mft | 1109 lbs | 13.1 in. | 60 |
| 1.14 mm | 23.9 mm | 603 kg/km | 503 kg | 333 mm | ||||
| 9030204 | 2 AWG | 6 AWG | 0.045 in. | 1.070 in. | 472 lbs/Mft | 1763 lbs | 15.0 in. | 80 |
| 1.14 mm | 27.2 mm | 702 kg/km | 799 kg | 381 mm | ||||
| 9030104 | 1 AWG | 4 AWG | 0.055 in. | 1.260 in. | 591 lbs/Mft | 2203 lbs | 17.6 in. | 92 |
| 1.40 mm | 32.0 mm | 879 kg/km | 999 kg | 448 mm |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.
Henan Guowang Cable is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.
Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
