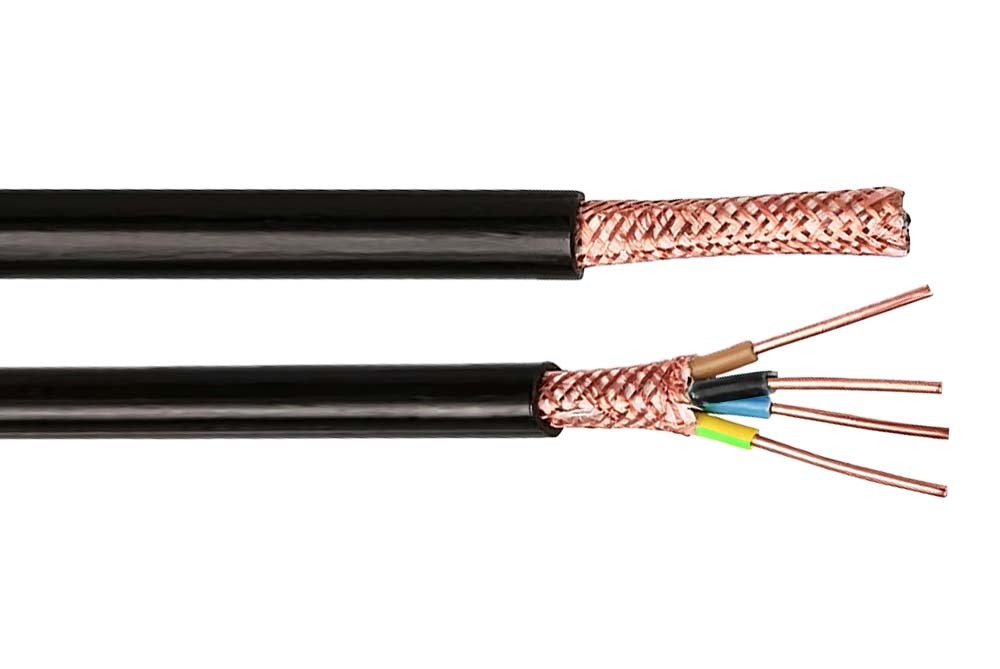

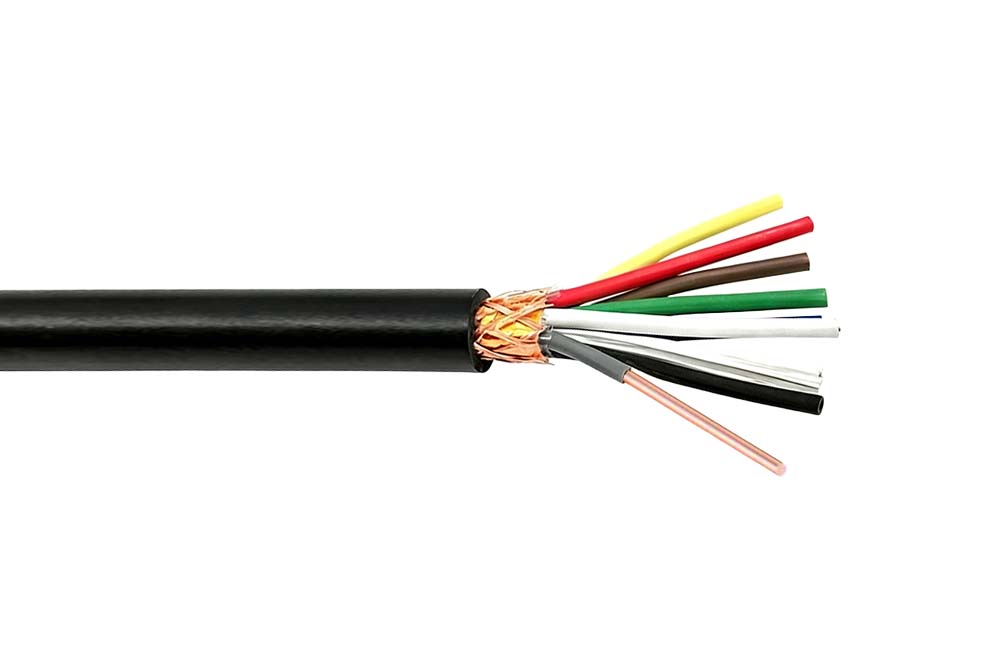

KVVP
KVVP
KVVP
Voltage: 450/750V

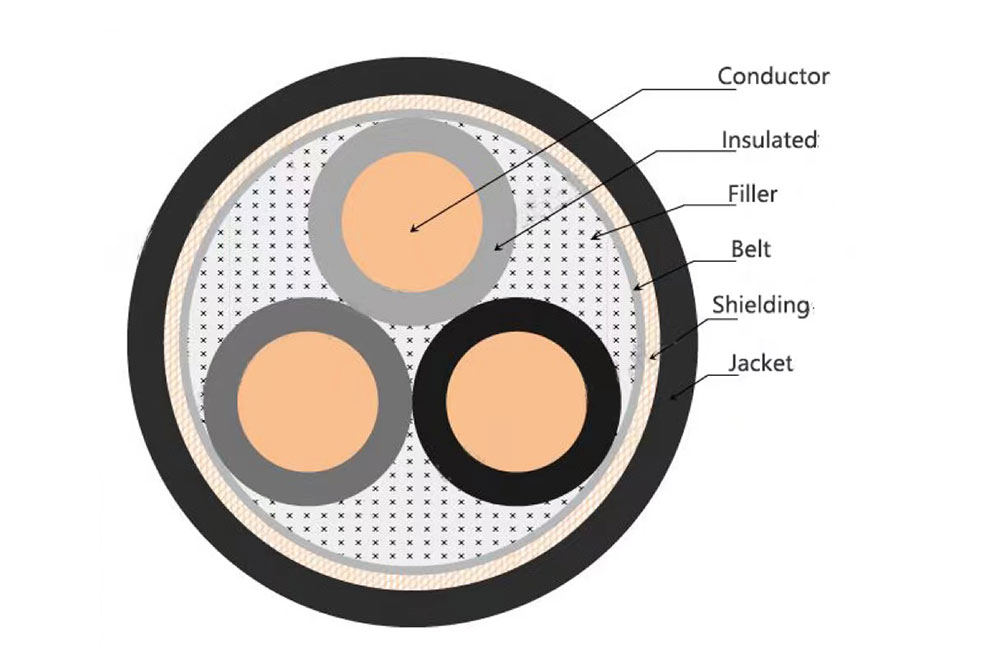

Structure: Conductor Copper
Insulation PVC
Jacket PVC
Shield Braided copper wire
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

Scope of application

System

This product is suitable for automatic control, monitoring circuits, protection circuits and other systems with power frequency AC rated voltage 0.45/0.75kV and below.

Occasion

Fixed laying in metallurgy, electric power, construction and other industries indoors and other occasions requiring shielding.

Product characteristics

This product has certain combustion resistance and shielding properties. The production raw materials are widely sourced and cheap, and are easy to process and manufacture.

Compliant standard

Executive standard

GB/T 9330-2020 Plastic insulated control cable

Additional standard

Service characteristics

Rated voltage:The power frequency AC rated voltage is 0.45/0.75kV, and the maximum voltage of the AC system should not exceed 1.0kV.

Operating temperature:Cable conductor allows the highest working temperature 70 ℃ for a long time. ;During a short circuit, the maximum temperature of the cable conductor shall not exceed 160°C and the duration shall not exceed 5s.

Ambient temperature

The ambient temperature of the cable should not be lower than -15 ° C.

Laying temperature

The laying temperature of the cable should not be lower than 0℃.

 Bending radius

The minimum bending radius should be no less than 6 times the outer diameter of the cable.

Identification of product

 Wire core

color spectrum:The preferred chromatogram for cables is two core’s cable, No preference for chromatography。Three-core cable: yellow/green, light blue, brown, or light blue, black, brown. Four-core cable: yellow/green, light blue, black, brown, or light blue, black, brown, black or brown. Five-core cable: yellow/green, light blue, black, brown, black or brown, or light blue, black, brown, black or brown, black or brown, (Tip: Manufacturers can edit the color spectrum according to actual conditions)

digital identification: When the insulated core is marked with a number, Insulation should be of the same color and arranged numerically, except for yellow/green combination color insulated cores

Numbers apply Arabic numerals printed on the surface of the insulated core, The color of the numbers should be the same and clearly contrast with the insulation color and the writing should be clear,

The numerical designation shall be repeated at equal intervals along the insulated core Two adjacent sets of numerical signs should be reversed. When the flag consists of a single number, then you should put a dash below the number. If the flag consists of two numbers, then they should be arranged up and down and a dash should be placed under the following numbers. The distance between two adjacent sets of digital signs should not be greater than 50mm.

Sheath

Cables shall be continuously identified with the manufacturer's name, product model and rated voltage, The logo of factory’s  name can be a duplicate of the manufacturer or repetitive identification.

The distance between the end of one complete sign and the beginning of the next sign The outer sheath of the cable should not exceed 550mm The cable insulation or tape should not exceed 275mm; The printed mark should be erasure resistant and not easy to fall off, and the printed content on the surface should be clear and recognizable

Delivery of goods and the length of the differences

Delivery of  length

The length of the circle should be 100m, and the length of the disk should be greater than 100m. 24 cores and below : Short cable lengths of not less than 20 meters are allowed for delivery, The delivery length of the short section cable should not exceed 5% of the total delivery length. 24 cores or more: Short cable lengths of not less than 20 meters are allowed for delivery, The delivery length of the short section cable should not exceed 10% of the total delivery length. Or it can be delivered in any length according to mutual agreement

Error in length

The measurement error of delivery length should not exceed ±0.5%.

Packaging, transportation and storage

 Packaging

1、Cable in rolls or coils is orderly winding and properly packed

2、The reel of cable shall comply with JB/T8137-2013,The end of cable should be reliably sealed, The cable ends extending out of the reel should be protected by a protective cover.

3、The package of cable should be attached with a label indicating: manufacturer name, model, specification, rated voltage, length, quality, manufacturing date, standard number or certification mark, correct rotation direction of the cable drum, etc.

 transportation

Transportation generally takes the form of vehicles or ships. During transportation, the cables must be firmly fixed to avoid damage to the cables or disks due to collision or overturning.

storage

Finished cables should be stored in an environment with a temperature between 0 and 40 degrees Celsius and a humidity below 85%. They should not be exposed to direct sunlight or rain. They should be properly ventilated to keep the environment dry. Cables should be stored and used in accordance with the above regulations and can generally be used for more than 25 years.

Ordering matters

Necessary information of ordering such as cable model, specification, length, packaging method, date of delivery, etc. should be correctly indicated.

For example

Model of cable:KVV-0.45/0.75kV

specification:24×1.5

length:10000m

packaging method: Iron plate packaging

date of delivery:Validity period     days

Instructions of Installation

During installation, the ambient temperature should not be lower than 0°C. If the ambient temperature measured by the thermometer is lower than 0°C, the cable should be preheated before installation. The bending radius during cable laying should be strictly controlled

In order to avoid mechanical damage inside the cable。The yellow/green double-color insulated wire cores should be connected according to the designated positions.

Rated Voltage No.of CORES specification conductor structure outer diameter of conductor(mm) insulation thickness(mm) Strap specifications(mm) Shielding specifications(mm) Sheath thickness(mm) reference outer diameter(mm) reference weight(kg/km) DC RESISTANCE (OHM/KM) Minimum insulation resistance at operating temperature(OHM-KM) Test voltage(KV/min) Maximum allowable pulling force of conductor(N)
450/750V 2 2×0.75 1/0.97 0.97 0.6 10×0.05 0.15 1.2 7.6 80.8 24.5 0.012 3/5 105
2×1.0 1/1.13 1.13 0.6 10×0.05 0.15 1.2 8 90.1 18.1 0.011 3/5 140
2×1.5 1/1.38 1.38 0.7 10×0.05 0.15 1.2 8.9 113.1 12.1 0.011 3/5 210
2×2.5 1/1.78 1.78 0.8 15×0.05 0.15 1.2 10.1 150.9 7.41 0.01 3/5 350
2×4 1/2.25 2.25 0.8 15×0.05 0.15 1.2 11 192.7 4.61 0.0085 3/5 560
2×6 1/2.76 2.76 0.8 15×0.05 0.15 1.2 12 245.5 3.08 0.007 3/5 840
3 3×0.75 1/0.97 0.97 0.6 10×0.05 0.15 1.2 8 94.5 24.5 0.012 3/5 158
3×1.0 1/1.13 1.13 0.6 10×0.05 0.15 1.2 8.3 106.7 18.1 0.011 3/5 210
3×1.5 1/1.38 1.38 0.7 10×0.05 0.15 1.2 9.3 136.6 12.1 0.011 3/5 315
3×2.5 1/1.78 1.78 0.8 15×0.05 0.15 1.2 10.6 186.5 7.41 0.01 3/5 525
3×4 1/2.25 2.25 0.8 15×0.05 0.15 1.2 11.6 243.7 4.61 0.0085 3/5 840
3×6 1/2.76 2.76 0.8 20×0.05 0.15 1.5 13.3 335.2 3.08 0.007 3/5 1260
4 4×0.75 1/0.97 0.97 0.6 10×0.05 0.15 1.2 8.5 111.3 24.5 0.012 3/5 210
4×1.0 1/1.13 1.13 0.6 10×0.05 0.15 1.2 8.9 126.7 18.1 0.011 3/5 280
4×1.5 1/1.38 1.38 0.7 15×0.05 0.15 1.2 10 164.3 12.1 0.011 3/5 420
4×2.5 1/1.78 1.78 0.8 15×0.05 0.15 1.2 11.5 227.8 7.41 0.01 3/5 700
4×4 1/2.25 2.25 0.8 20×0.05 0.15 1.2 12.6 301.6 4.61 0.0085 3/5 1120
4×6 1/2.76 2.76 0.8 20×0.05 0.2 1.5 14.7 432.1 3.08 0.007 3/5 1680
5 5×0.75 1/0.97 0.97 0.6 10×0.05 0.15 1.2 9.2 129.1 24.5 0.012 3/5 263
5×1.0 1/1.13 1.13 0.6 10×0.05 0.15 1.2 9.6 148 18.1 0.011 3/5 350
5×1.5 1/1.38 1.38 0.7 15×0.05 0.15 1.2 10.8 193.5 12.1 0.011 3/5 525
5×2.5 1/1.78 1.78 0.8 20×0.05 0.15 1.2 12.4 271 7.41 0.01 3/5 875
5×4 1/2.25 2.25 0.8 20×0.05 0.2 1.5 14.6 397.4 4.61 0.0085 3/5 1400
5×6 1/2.76 2.76 0.8 25×0.05 0.2 1.5 15.9 517.7 3.08 0.007 3/5 2100
6 6×0.5 1/0.80 0.8 0.6 10×0.05 0.15 1.2 9.3 126.2 36 3/5 210
6×0.75 1/0.97 0.97 0.6 15×0.05 0.15 1.2 9.8 147.5 24.5 0.012 3/5 315
6×1.0 1/1.13 1.13 0.6 15×0.05 0.15 1.2 10.3 169.9 18.1 0.011 3/5 420
6×1.5 1/1.38 1.38 0.7 15×0.05 0.15 1.2 11.6 223.7 12.1 0.011 3/5 630
6×2.5 1/1.78 1.78 0.8 20×0.05 0.2 1.5 14.3 350.4 7.41 0.01 3/5 1050
6×4 1/2.25 2.25 0.8 25×0.05 0.2 1.5 15.7 462.4 4.61 0.0085 3/5 1680
6×6 1/2.76 2.76 0.8 25×0.05 0.2 1.5 17.2 605.7 3.08 0.007 3/5 2520
7 7×0.75 1/0.97 0.97 0.6 15×0.05 0.15 1.2 9.8 153.6 24.5 0.012 3/5 368
7×1.0 1/1.13 1.13 0.6 15×0.05 0.15 1.2 10.3 178.1 18.1 0.011 3/5 490
7×1.5 1/1.38 1.38 0.7 15×0.05 0.15 1.2 11.6 235.8 12.1 0.011 3/5 735
7×2.5 1/1.78 1.78 0.8 20×0.05 0.2 1.5 14.3 370.4 7.41 0.01 3/5 1225
7×4 1/2.25 2.25 0.8 25×0.05 0.2 1.5 15.7 494 4.61 0.0085 3/5 1960
7×6 1/2.76 2.76 0.8 25×0.05 0.2 1.5 17.2 652.9 3.08 0.007 3/5 2940
8 8×0.75 1/0.97 0.97 0.6 15×0.05 0.15 1.2 10.5 170.9 24.5 0.012 3/5 420
8×1.0 1/1.13 1.13 0.6 15×0.05 0.15 1.2 11 198.7 18.1 0.011 3/5 560
8×1.5 1/1.38 1.38 0.7 20×0.05 0.15 1.5 13.1 282.1 12.1 0.011 3/5 840
8×2.5 1/1.78 1.78 0.8 20×0.05 0.2 1.5 15.3 414.9 7.41 0.01 3/5 1400
8×4 1/2.25 2.25 0.8 25×0.05 0.2 1.5 16.9 555.5 4.61 0.0085 3/5 2240
8×6 1/2.76 2.76 0.8 30×0.05 0.2 1.5 18.5 736.3 3.08 0.007 3/5 3360
9 9×0.5 1/0.80 0.8 0.6 15×0.05 0.15 1.2 10.7 160.8 36 3/5 315
9×0.75 1/0.97 0.97 0.6 15×0.05 0.15 1.2 11.3 190.4 24.5 0.012 3/5 473
9×1.0 1/1.13 1.13 0.6 15×0.05 0.15 1.2 11.9 221.5 18.1 0.011 3/5 630
9×1.5 1/1.38 1.38 0.7 20×0.05 0.2 1.5 14.4 330.3 12.1 0.011 3/5 945
9×2.5 1/1.78 1.78 0.8 25×0.05 0.2 1.5 16.7 463.6 7.41 0.01 3/5 1575
9×4 1/2.25 2.25 0.8 30×0.05 0.2 1.5 18.4 621.6 4.61 0.0085 3/5 2520
9×6 1/2.76 2.76 0.8 30×0.05 0.2 1.7 20.7 844.2 3.08 0.007 3/5 3780
10 10×0.75 1/0.97 0.97 0.6 15×0.05 0.15 1.2 12 211 24.5 0.012 3/5 525
10×1.0 1/1.13 1.13 0.6 20×0.05 0.15 1.2 12.6 245.9 18.1 0.011 3/5 700
10×1.5 1/1.38 1.38 0.7 20×0.05 0.2 1.5 15.3 366.2 12.1 0.011 3/5 1050
10×2.5 1/1.78 1.78 0.8 25×0.05 0.2 1.5 17.7 516.1 7.41 0.01 3/5 1750
10×4 1/2.25 2.25 0.8 30×0.05 0.2 1.7 20 712 4.61 0.0085 3/5 2800
10×6 1/2.76 2.76 0.8 35×0.05 0.2 1.7 22 942.1 3.08 0.007 3/5 4200
11 11×0.5 1/0.80 0.8 0.6 15×0.05 0.15 1.2 11.6 186.5 36 3/5 385
11×0.75 1/0.97 0.97 0.6 20×0.05 0.15 1.2 12.3 222 24.5 0.012 3/5 578
11×1.0 1/1.13 1.13 0.6 20×0.05 0.15 1.2 13 259.6 18.1 0.011 3/5 770
11×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 15.7 386.4 12.1 0.011 3/5 1155
11×2.5 1/1.78 1.78 0.8 30×0.05 0.2 1.5 18.2 546.7 7.41 0.01 3/5 1925
11×4 1/2.25 2.25 0.8 30×0.05 0.2 1.7 20.5 756.9 4.61 0.0085 3/5 3080
11×6 1/2.76 2.76 0.8 35×0.05 0.2 1.7 22.7 1005.2 3.08 0.007 3/5 4620
12 12×0.75 1/0.97 0.97 0.6 20×0.05 0.15 1.2 12.3 233 24.5 0.012 3/5 630
12×1.0 1/1.13 1.13 0.6 20×0.05 0.15 1.5 13.6 292.2 18.1 0.011 3/5 840
12×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 15.7 406.7 12.1 0.011 3/5 1260
12×2.5 1/1.78 1.78 0.8 30×0.05 0.2 1.5 18.2 578.7 7.41 0.01 3/5 2100
12×4 1/2.25 2.25 0.8 30×0.05 0.2 1.7 20.5 804.1 4.61 0.0085 3/5 3360
12×6 1/2.76 2.76 0.8 35×0.05 0.2 1.7 22.7 1072.4 3.08 0.007 3/5 5040
13 13×0.5 1/0.80 0.8 0.6 15×0.05 0.15 1.2 12.1 208.7 36 3/5 455
13×0.75 1/0.97 0.97 0.6 20×0.05 0.15 1.5 13.5 268.5 24.5 0.012 3/5 683
13×1.0 1/1.13 1.13 0.6 20×0.05 0.2 1.5 14.4 328.7 18.1 0.011 3/5 910
13×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 16.4 436.4 12.1 0.011 3/5 1365
13×2.5 1/1.78 1.78 0.8 30×0.05 0.2 1.5 19.1 622.5 7.41 0.01 3/5 2275
13×4 1/2.25 2.25 0.8 35×0.05 0.2 1.7 21.5 865.7 4.61 0.0085 3/5 3640
13×6 1/2.76 2.76 0.8 40×0.05 0.2 1.7 23.8 1156.2 3.08 0.007 3/5 5460
14 14×0.75 1/0.97 0.97 0.6 20×0.05 0.15 1.5 13.5 279.6 24.5 0.012 3/5 735
14×1.0 1/1.13 1.13 0.6 20×0.05 0.2 1.5 14.4 342.5 18.1 0.011 3/5 980
14×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 16.4 456.6 12.1 0.011 3/5 1470
14×2.5 1/1.78 1.78 0.8 30×0.05 0.2 1.5 19.1 654.5 7.41 0.01 3/5 2450
14×4 1/2.25 2.25 0.8 35×0.05 0.2 1.7 21.5 912.9 4.61 0.0085 3/5 3920
14×6 1/2.76 2.76 0.8 40×0.05 0.2 1.7 23.8 1223.4 3.08 0.007 3/5 5880
15 15×0.5 1/0.80 0.8 0.6 20×0.05 0.15 1.5 13.3 250 36 3/5 525
15×0.75 1/0.97 0.97 0.6 20×0.05 0.2 1.5 14.4 313.6 24.5 0.012 3/5 788
15×1.0 1/1.13 1.13 0.6 20×0.05 0.2 1.5 15.1 365.4 18.1 0.011 3/5 1050
15×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 17.2 487.8 12.1 0.011 3/5 1575
15×2.5 1/1.78 1.78 0.8 30×0.05 0.2 1.7 20.4 719.2 7.41 0.01 3/5 2625
15×4 1/2.25 2.25 0.8 35×0.05 0.2 1.7 22.7 977 4.61 0.0085 3/5 4200
15×6 1/2.76 2.76 0.8 40×0.05 0.25 1.7 25.3 1338.5 3.08 0.007 3/5 6300
16 16×0.75 1/0.97 0.97 0.6 20×0.05 0.2 1.5 14.4 324.6 24.5 0.012 3/5 840
16×1.0 1/1.13 1.13 0.6 20×0.05 0.2 1.5 15.1 379.3 18.1 0.011 3/5 1120
16×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 17.2 508.1 12.1 0.011 3/5 1680
16×2.5 1/1.78 1.78 0.8 30×0.05 0.2 1.7 20.4 751.2 7.41 0.01 3/5 2800
17 17×0.5 1/0.80 0.8 0.6 20×0.05 0.2 1.5 14.2 289.6 36 3/5 595
17×0.75 1/0.97 0.97 0.6 20×0.05 0.2 1.5 15 344.7 24.5 0.012 3/5 893
17×1.0 1/1.13 1.13 0.6 25×0.05 0.2 1.5 15.8 402.9 18.1 0.011 3/5 1190
17×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 18.1 540.2 12.1 0.011 3/5 1785
17×2.5 1/1.78 1.78 0.8 35×0.05 0.2 1.7 21.5 799.1 7.41 0.01 3/5 2975
17×4 1/2.25 2.25 0.8 40×0.05 0.2 1.7 23.8 1089.8 4.61 0.0085 3/5 4760
17×6 1/2.76 2.76 0.8 45×0.05 0.25 1.7 26.6 1496 3.08 0.007 3/5 7140
18 18×0.5 1/0.80 0.8 0.6 20×0.05 0.2 1.5 14.2 298 36 3/5 630
18×0.75 1/0.97 0.97 0.6 20×0.05 0.2 1.5 15 355.7 24.5 0.012 3/5 945
18×1.0 1/1.13 1.13 0.6 25×0.05 0.2 1.5 15.8 416.8 18.1 0.011 3/5 1260
18×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 18.1 560.5 12.1 0.011 3/5 1890
18×2.5 1/1.78 1.78 0.8 35×0.05 0.2 1.7 21.5 48.1 7.41 0.01 3/5 3150
18×4 1/2.25 2.25 0.8 40×0.05 0.2 1.7 23.8 1137 4.61 0.0085 3/5 5040
18×6 1/2.76 2.76 0.8 45×0.05 0.25 1.7 26.6 1563.3 3.08 0.007 3/5 7560
19 19×0.75 1/0.97 0.97 0.6 20×0.05 0.2 1.5 15 364.6 24.5 0.012 3/5 998
19×1.0 1/1.13 1.13 0.6 25×0.05 0.2 1.5 15.8 428.2 18.1 0.011 3/5 1330
19×1.5 1/1.38 1.38 0.7 25×0.05 0.2 1.5 18.1 577.2 12.1 0.011 3/5 1995
19×2.5 1/1.78 1.78 0.8 35×0.05 0.2 1.7 21.5 857.9 7.41 0.01 3/5 3325
20 20×0.5 1/0.80 0.8 0.6 20×0.05 0.2 1.5 14.5 316.8 36 3/5 700
20×0.75 1/0.97 0.97 0.6 20×0.05 0.2 1.5 15.3 379.7 24.5 0.012 3/5 1050
20×1.0 1/1.13 1.13 0.6 25×0.05 0.2 1.5 16.2 446.5 18.1 0.011 3/5 1400
20×1.5 1/1.38 1.38 0.7 30×0.05 0.2 1.5 18.5 602.7 12.1 0.011 3/5 2100
20×2.5 1/1.78 1.78 0.8 35×0.05 0.2 1.7 22 896.8 7.41 0.01 3/5 3500
20×4 1/2.25 2.25 0.8 40×0.05 0.25 1.7 24.6 1260.3 4.61 0.0085 3/5 5600
20×6 1/2.76 2.76 0.8 45×0.05 0.25 1.7 27.3 1698.7 3.08 0.007 3/5 8400
21 21×0.5 1/0.80 0.8 0.6 20×0.05 0.2 1.5 14.8 328.8 36 3/5 735
21×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 15.7 394.6 24.5 0.012 3/5 1103
21×1.0 1/1.13 1.13 0.6 25×0.05 0.2 1.5 16.5 464.5 18.1 0.011 3/5 1470
21×1.5 1/1.38 1.38 0.7 30×0.05 0.2 1.5 18.9 627.9 12.1 0.011 3/5 2205
21×2.5 1/1.78 1.78 0.8 35×0.05 0.2 1.7 22.5 935.3 7.41 0.01 3/5 3675
21×4 1/2.25 2.25 0.8 40×0.05 0.25 1.7 25.2 1315.8 4.61 0.0085 3/5 5880
21×6 1/2.76 2.76 0.8 45×0.05 0.25 1.7 27.9 1775.2 3.08 0.007 3/5 8820
22 22×0.5 1/0.80 0.8 0.6 20×0.05 0.2 1.5 15.6 347.1 36 3/5 770
22×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 16.5 416.4 24.5 0.012 3/5 1155
22×1.0 1/1.13 1.13 0.6 25×0.05 0.2 1.5 17.4 489.8 18.1 0.011 3/5 1540
22×1.5 1/1.38 1.38 0.7 30×0.05 0.2 1.7 20.4 680.9 12.1 0.011 3/5 2310
22×2.5 1/1.78 1.78 0.8 40×0.05 0.2 1.7 23.8 985.4 7.41 0.01 3/5 3850
22×4 1/2.25 2.25 0.8 45×0.05 0.25 1.7 26.8 1385.3 4.61 0.0085 3/5 6160
22×6 1/2.76 2.76 0.8 50×0.05 0.25 2 30.3 1909.9 3.08 0.007 3/5 9240
23 23×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 16.2 362.9 36 3/5 805
23×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 17.2 435.4 24.5 0.012 3/5 1208
23×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 18.1 512.3 18.1 0.011 3/5 1610
23×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 21.2 712.2 12.1 0.011 3/5 2415
23×2.5 1/1.78 1.78 0.8 40×0.05 0.2 1.7 24.8 1030.8 7.41 0.01 3/5 4025
23×4 1/2.25 2.25 0.8 45×0.05 0.25 1.7 27.9 1449.1 4.61 0.0085 3/5 6440
23×6 1/2.76 2.76 0.8 50×0.05 0.25 2 31.6 1998 3.08 0.007 3/5 9660
24 24×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 17.2 446.4 24.5 0.012 3/5 1260
24×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 18.1 526.1 18.1 0.011 3/5 1680
24×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 21.2 732.4 12.1 0.011 3/5 2520
24×2.5 1/1.78 1.78 0.8 40×0.05 0.25 1.7 25.1 1091.2 7.41 0.01 3/5 4200
25 25×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 16.5 383.7 36 3/5 875
25×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 17.5 461.6 24.5 0.012 3/5 1313
25×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 18.5 544.5 18.1 0.011 3/5 1750
25×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 21.7 758.5 12.1 0.011 3/5 2625
25×2.5 1/1.78 1.78 0.8 40×0.05 0.25 1.7 25.6 1131 7.41 0.01 3/5 4375
25×4 1/2.25 2.25 0.8 45×0.05 0.25 1.7 28.5 1552.3 4.61 0.0085 3/5 7000
25×6 1/2.76 2.76 0.8 55×0.05 0.25 2 32.2 2143.4 3.08 0.007 3/5 10500
26 26×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 16.5 392.1 36 3/5 910
26×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 17.5 472.7 24.5 0.012 3/5 1365
26×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 18.5 558.4 18.1 0.011 3/5 1820
26×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 21.7 778.7 12.1 0.011 3/5 2730
26×2.5 1/1.78 1.78 0.8 40×0.05 0.25 1.7 25.6 1163 7.41 0.01 3/5 4550
26×4 1/2.25 2.25 0.8 45×0.05 0.25 1.7 28.5 1599.5 4.61 0.0085 3/5 7280
26×6 1/2.76 2.76 0.8 55×0.05 0.25 2 32.2 2210.6 3.08 0.007 3/5 10920
27 27×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 17.5 483.7 24.5 0.012 3/5 1418
27×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 18.5 572.2 18.1 0.011 3/5 1890
27×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 21.7 799 12.1 0.011 3/5 2835
27×2.5 1/1.78 1.78 0.8 40×0.05 0.25 1.7 25.6 1195 7.41 0.01 3/5 4725
28 28×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 17 415.6 36 3/5 980
28×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 18.1 502.1 24.5 0.012 3/5 1470
28×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 19.1 593.9 18.1 0.011 3/5 1960
28×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 22.4 829.4 12.1 0.011 3/5 2940
28×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 26.5 1240.7 7.41 0.01 3/5 4900
28×4 1/2.25 2.25 0.8 50×0.05 0.25 2 30.1 1751.7 4.61 0.0085 3/5 7840
28×6 1/2.76 2.76 0.8 55×0.05 0.25 2 33.4 2364.7 3.08 0.007 3/5 11760
29 29×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 17 424.1 36 3/5 1015
29×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 18.1 513.1 24.5 0.012 3/5 1523
29×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 19.1 607.8 18.1 0.011 3/5 2030
29×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 22.4 849.6 12.1 0.011 3/5 3045
29×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 26.5 1272.7 7.41 0.01 3/5 5075
29×4 1/2.25 2.25 0.8 50×0.05 0.25 2 30.1 1798.9 4.61 0.0085 3/5 8120
29×6 1/2.76 2.76 0.8 55×0.05 0.25 2 33.4 2431.9 3.08 0.007 3/5 12180
30 30×0.75 1/0.97 0.97 0.6 25×0.05 0.2 1.5 18.1 524.2 24.5 0.012 3/5 1575
30×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.5 19.1 621.6 18.1 0.011 3/5 2100
30×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 22.4 869.8 12.1 0.011 3/5 3150
30×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 26.5 1304.7 7.41 0.01 3/5 5250
31 31×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 17.6 448.5 36 3/5 1085
31×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.5 18.7 543.5 24.5 0.012 3/5 1628
31×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.2 663.3 18.1 0.011 3/5 2170
31×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 23.2 901.8 12.1 0.011 3/5 3255
31×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 27.5 1352.5 7.41 0.01 3/5 5425
31×4 1/2.25 2.25 0.8 50×0.05 0.25 2 31.2 1913.1 4.61 0.0085 3/5 8680
31×6 1/2.76 2.76 0.8 55×0.05 0.25 2 34.6 2588.8 3.08 0.007 3/5 13020
32 32×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 17.6 456.9 36 3/5 1120
32×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.5 18.7 554.5 24.5 0.012 3/5 1680
32×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.2 677.2 18.1 0.011 3/5 2240
32×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 23.2 922.1 12.1 0.011 3/5 3360
32×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 27.5 1384.5 7.41 0.01 3/5 5600
32×4 1/2.25 2.25 0.8 50×0.05 0.25 2 31.2 1960.3 4.61 0.0085 3/5 8960
32×6 1/2.76 2.76 0.8 55×0.05 0.25 2 34.6 2656 3.08 0.007 3/5 13440
33 33×0.5 1/0.80 0.8 0.6 25×0.05 0.2 1.5 17.6 465.4 36 3/5 1155
33×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.5 18.7 565.6 24.5 0.012 3/5 1733
33×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.2 691 18.1 0.011 3/5 2310
33×1.5 1/1.38 1.38 0.7 35×0.05 0.2 1.7 23.2 942.3 12.1 0.011 3/5 3465
33×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 27.5 1416.5 7.41 0.01 3/5 5775
33×4 1/2.25 2.25 0.8 50×0.05 0.25 2 31.2 2007.5 4.61 0.0085 3/5 9240
33×6 1/2.76 2.76 0.8 55×0.05 0.25 2 34.6 2723.2 3.08 0.007 3/5 13860
34 34×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.5 18.2 482 36 3/5 1190
34×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.7 19.7 604 24.5 0.012 3/5 1785
34×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.9 715.3 18.1 0.011 3/5 2380
34×1.5 1/1.38 1.38 0.7 40×0.05 0.2 1.7 24 975.2 12.1 0.011 3/5 3570
34×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 28.5 1465.6 7.41 0.01 3/5 5950
34×4 1/2.25 2.25 0.8 55×0.05 0.25 2 32.4 2076.2 4.61 0.0085 3/5 9520
34×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 36.6 2891.3 3.08 0.007 3/5 14280
35 35×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.5 18.2 490.4 36 3/5 1225
35×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.7 19.7 615.1 24.5 0.012 3/5 1838
35×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.9 729.2 18.1 0.011 3/5 2450
35×1.5 1/1.38 1.38 0.7 40×0.05 0.2 1.7 24 995.4 12.1 0.011 3/5 3675
35×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 28.5 1497.7 7.41 0.01 3/5 6125
35×4 1/2.25 2.25 0.8 55×0.05 0.25 2 32.4 2123.4 4.61 0.0085 3/5 9800
35×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 36.6 2958.5 3.08 0.007 3/5 14700
36 36×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.5 18.2 498.9 36 3/5 1260
36×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.7 19.7 626.1 24.5 0.012 3/5 1890
36×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.9 743.1 18.1 0.011 3/5 2520
36×1.5 1/1.38 1.38 0.7 40×0.05 0.2 1.7 24 1015.7 12.1 0.011 3/5 3780
36×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 28.5 1529.7 7.41 0.01 3/5 6300
36×4 1/2.25 2.25 0.8 55×0.05 0.25 2 32.4 2170.6 4.61 0.0085 3/5 10080
36×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 36.6 3025.7 3.08 0.007 3/5 15120
37 37×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.7 19.7 635 24.5 0.012 3/5 1943
37×1.0 1/1.13 1.13 0.6 30×0.05 0.2 1.7 20.9 754.4 18.1 0.011 3/5 2590
37×1.5 1/1.38 1.38 0.7 40×0.05 0.2 1.7 24 1032.4 12.1 0.011 3/5 3885
37×2.5 1/1.78 1.78 0.8 45×0.05 0.25 1.7 28.5 1556.5 7.41 0.01 3/5 6475
38 38×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.5 18.8 521.3 36 3/5 1330
38×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.7 20.4 654.6 24.5 0.012 3/5 1995
38×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 21.6 777.6 18.1 0.011 3/5 2660
38×1.5 1/1.38 1.38 0.7 40×0.05 0.25 1.7 25.1 1092.1 12.1 0.011 3/5 3990
38×2.5 1/1.78 1.78 0.8 50×0.05 0.25 2 30.1 1645.2 7.41 0.01 3/5 6650
38×4 1/2.25 2.25 0.8 55×0.05 0.25 2 33.5 2276.6 4.61 0.0085 3/5 10640
38×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 37.9 3175.2 3.08 0.007 3/5 15960
39 39×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.5 18.8 529.7 36 3/5 1365
39×0.75 1/0.97 0.97 0.6 30×0.05 0.2 1.7 20.4 665.6 24.5 0.012 3/5 2048
39×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 21.6 791.4 18.1 0.011 3/5 2730
39×1.5 1/1.38 1.38 0.7 40×0.05 0.25 1.7 25.1 1112.3 12.1 0.011 3/5 4095
39×2.5 1/1.78 1.78 0.8 50×0.05 0.25 2 30.1 1677.2 7.41 0.01 3/5 6825
39×4 1/2.25 2.25 0.8 55×0.05 0.25 2 33.5 2323.8 4.61 0.0085 3/5 10920
39×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 37.9 3242.4 3.08 0.007 3/5 16380
40 40×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.5 20.2 555.4 36 3/5 1400
40×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 21.9 696.8 24.5 0.012 3/5 2100
40×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.2 826.9 18.1 0.011 3/5 2800
40×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27 1160.8 12.1 0.011 3/5 4200
40×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 32.4 1746.9 7.41 0.01 3/5 7000
40×4 1/2.25 2.25 0.8 60×0.05 0.25 2 36.2 2413.8 4.61 0.0085 3/5 11200
40×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 40.9 3364.7 3.08 0.007 3/5 16800
41 41×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.7 20.6 583 36 3/5 1435
41×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 21.9 707.8 24.5 0.012 3/5 2153
41×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.2 840.7 18.1 0.011 3/5 2870
41×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27 1181 12.1 0.011 3/5 4305
41×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 32.4 1779 7.41 0.01 3/5 7175
41×4 1/2.25 2.25 0.8 60×0.05 0.25 2.2 36.6 2495.3 4.61 0.0085 3/5 11480
41×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 40.9 3431.9 3.08 0.007 3/5 17220
42 42×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.7 20.6 591.4 36 3/5 1470
42×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 21.9 718.9 24.5 0.012 3/5 2205
42×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.2 854.6 18.1 0.011 3/5 2940
42×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27 1201.3 12.1 0.011 3/5 4410
42×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 32.4 1811 7.41 0.01 3/5 7350
42×4 1/2.25 2.25 0.8 60×0.05 0.25 2.2 36.6 2542.5 4.61 0.0085 3/5 11760
42×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 40.9 3499.2 3.08 0.007 3/5 17640
43 43×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.7 20.6 599.8 36 3/5 1505
43×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 21.9 729.9 24.5 0.012 3/5 2258
43×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.2 868.5 18.1 0.011 3/5 3010
43×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27 1221.5 12.1 0.011 3/5 4515
43×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 32.4 1843 7.41 0.01 3/5 7525
43×4 1/2.25 2.25 0.8 60×0.05 0.25 2.2 36.6 2589.7 4.61 0.0085 3/5 12040
43×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 40.9 3566.4 3.08 0.007 3/5 18060
44 44×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 21.9 740.9 24.5 0.012 3/5 2310
44×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.2 882.3 18.1 0.011 3/5 3080
44×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27 1241.8 12.1 0.011 3/5 4620
44×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 32.4 1875 7.41 0.01 3/5 7700
45 45×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.7 20.9 620.8 36 3/5 1575
45×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.2 756.4 24.5 0.012 3/5 2363
45×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.6 901 18.1 0.011 3/5 3150
45×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27.5 1268.4 12.1 0.011 3/5 4725
45×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33 1915.5 7.41 0.01 3/5 7875
45×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 37.4 2737.3 4.61 0.0085 3/5 12600
45×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 41.6 3713.3 3.08 0.007 3/5 18900
46 46×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.7 20.9 629.3 36 3/5 1610
46×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.2 767.5 24.5 0.012 3/5 2415
46×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.6 914.9 18.1 0.011 3/5 3220
46×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27.5 1288.6 12.1 0.011 3/5 4830
46×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33 1947.6 7.41 0.01 3/5 8050
46×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 37.4 2784.5 4.61 0.0085 3/5 12880
46×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 41.6 3780.5 3.08 0.007 3/5 19320
47 47×0.5 1/0.80 0.8 0.6 30×0.05 0.2 1.7 20.9 637.7 36 3/5 1645
47×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.2 778.5 24.5 0.012 3/5 2468
47×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.6 928.8 18.1 0.011 3/5 3290
47×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27.5 1308.9 12.1 0.011 3/5 4935
47×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33 1979.6 7.41 0.01 3/5 8225
47×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 37.4 2831.7 4.61 0.0085 3/5 13160
47×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 41.6 3847.7 3.08 0.007 3/5 19740
48 48×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.2 789.5 24.5 0.012 3/5 2520
48×1.0 1/1.13 1.13 0.6 35×0.05 0.2 1.7 23.6 942.6 18.1 0.011 3/5 3360
48×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 27.5 1329.1 12.1 0.011 3/5 5040
48×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33 2011.6 7.41 0.01 3/5 8400
49 49×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 21.4 661.7 36 3/5 1715
49×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.8 808.5 24.5 0.012 3/5 2573
49×1.0 1/1.13 1.13 0.6 40×0.05 0.2 1.7 24.2 964.8 18.1 0.011 3/5 3430
49×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 28.2 1360.4 12.1 0.011 3/5 5145
49×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33.8 2058.5 7.41 0.01 3/5 8575
49×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 38.4 2945.4 4.61 0.0085 3/5 13720
49×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 42.7 4004.2 3.08 0.007 3/5 20580
50 50×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 21.4 670.2 36 3/5 1750
50×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.8 819.5 24.5 0.012 3/5 2625
50×1.0 1/1.13 1.13 0.6 40×0.05 0.2 1.7 24.2 978.7 18.1 0.011 3/5 3500
50×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 28.2 1380.6 12.1 0.011 3/5 5250
50×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33.8 2090.5 7.41 0.01 3/5 8750
50×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 38.4 2992.6 4.61 0.0085 3/5 14000
50×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 42.7 4071.4 3.08 0.007 3/5 21000
51 51×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 21.4 678.6 36 3/5 1785
51×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.8 830.5 24.5 0.012 3/5 2678
51×1.0 1/1.13 1.13 0.6 40×0.05 0.2 1.7 24.2 992.6 18.1 0.011 3/5 3570
51×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 28.2 1400.9 12.1 0.011 3/5 5355
51×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33.8 2122.5 7.41 0.01 3/5 8925
51×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 38.4 3039.8 4.61 0.0085 3/5 14280
51×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 42.7 4138.7 3.08 0.007 3/5 21420
52 52×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 22.8 841.5 24.5 0.012 3/5 2730
52×1.0 1/1.13 1.13 0.6 40×0.05 0.2 1.7 24.2 1006.4 18.1 0.011 3/5 3640
52×1.5 1/1.38 1.38 0.7 45×0.05 0.25 1.7 28.2 1421.1 12.1 0.011 3/5 5460
52×2.5 1/1.78 1.78 0.8 55×0.05 0.25 2 33.8 2154.6 7.41 0.01 3/5 9100
53 53×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22 703.6 36 3/5 1855
53×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 23.4 861.5 24.5 0.012 3/5 2783
53×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.1 1058.4 18.1 0.011 3/5 3710
53×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 29.6 1495.5 12.1 0.011 3/5 5565
53×2.5 1/1.78 1.78 0.8 60×0.05 0.25 2.2 35.2 2236.7 7.41 0.01 3/5 9275
53×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 39.6 3156.4 4.61 0.0085 3/5 14840
53×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 44 4298.3 3.08 0.007 3/5 22260
54 54×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22 712 36 3/5 1890
54×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 23.4 872.5 24.5 0.012 3/5 2835
54×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.1 1072.2 18.1 0.011 3/5 3780
54×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 29.6 1515.7 12.1 0.011 3/5 5670
54×2.5 1/1.78 1.78 0.8 60×0.05 0.25 2.2 35.2 2268.7 7.41 0.01 3/5 9450
54×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 39.6 3203.6 4.61 0.0085 3/5 15120
54×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 44 4365.5 3.08 0.007 3/5 22680
55 55×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22 720.4 36 3/5 1925
55×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 23.4 883.6 24.5 0.012 3/5 2888
55×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.1 1086.1 18.1 0.011 3/5 3850
55×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 29.6 1536 12.1 0.011 3/5 5775
55×2.5 1/1.78 1.78 0.8 60×0.05 0.25 2.2 35.2 2300.7 7.41 0.01 3/5 9625
55×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 39.6 3250.8 4.61 0.0085 3/5 15400
55×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 44 4432.7 3.08 0.007 3/5 23100
56 56×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22 728.8 36 3/5 1960
56×0.75 1/0.97 0.97 0.6 35×0.05 0.2 1.7 23.4 894.6 24.5 0.012 3/5 2940
56×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.1 1099.9 18.1 0.011 3/5 3920
56×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 29.6 1556.2 12.1 0.011 3/5 5880
56×2.5 1/1.78 1.78 0.8 60×0.05 0.25 2.2 35.2 2332.8 7.41 0.01 3/5 9800
56×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 39.6 3298 4.61 0.0085 3/5 15680
56×6 1/2.76 2.76 0.8 60×0.05 0.3 2.2 44 4499.9 3.08 0.007 3/5 23520
57 57×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22.6 744.2 36 3/5 1995
57×0.75 1/0.97 0.97 0.6 40×0.05 0.2 1.7 24.1 913.1 24.5 0.012 3/5 2993
57×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.8 1122.6 18.1 0.011 3/5 3990
57×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 30.4 1587.8 12.1 0.011 3/5 5985
57×2.5 1/1.78 1.78 0.8 60×0.05 0.3 2.2 36.5 2420.8 7.41 0.01 3/5 9975
57×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 40.7 3362.4 4.61 0.0085 3/5 15960
57×6 1/2.76 2.76 0.8 60×0.05 0.3 2.5 45.9 4650.7 3.08 0.007 3/5 23940
58 58×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22.6 752.7 36 3/5 2030
58×0.75 1/0.97 0.97 0.6 40×0.05 0.2 1.7 24.1 924.1 24.5 0.012 3/5 3045
58×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.8 1136.5 18.1 0.011 3/5 4060
58×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 30.4 1608 12.1 0.011 3/5 6090
58×2.5 1/1.78 1.78 0.8 60×0.05 0.3 2.2 36.5 2452.9 7.41 0.01 3/5 10150
58×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 40.7 3409.6 4.61 0.0085 3/5 16240
58×6 1/2.76 2.76 0.8 60×0.05 0.3 2.5 45.9 4717.9 3.08 0.007 3/5 24360
59 59×0.5 1/0.80 0.8 0.6 35×0.05 0.2 1.7 22.6 761.1 36 3/5 2065
59×0.75 1/0.97 0.97 0.6 40×0.05 0.2 1.7 24.1 935.1 24.5 0.012 3/5 3098
59×1.0 1/1.13 1.13 0.6 40×0.05 0.25 1.7 25.8 1150.3 18.1 0.011 3/5 4130
59×1.5 1/1.38 1.38 0.7 50×0.05 0.25 2 30.4 1628.3 12.1 0.011 3/5 6195
59×2.5 1/1.78 1.78 0.8 60×0.05 0.3 2.2 36.5 2484.9 7.41 0.01 3/5 10325
59×4 1/2.25 2.25 0.8 60×0.05 0.3 2.2 40.7 3456.8 4.61 0.0085 3/5 16520
59×6 1/2.76 2.76 0.8 60×0.05 0.3 2.5 45.9 4785.1 3.08 0.007 3/5 24780
60 60×0.5 1/0.80 0.8 0.6 35×0.05
  • Who we are?

    We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.

  • How can we guarantee quality?

    Always a pre-production sample before mass production; Always final Inspection before shipment.

  • What can you buy from us?

    Wire, Cable

  • Why should you buy from us not from other suppliers?

    We have twenty years of experience in design and development

  • What services can we provide?

    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency: USD,EUR;
    Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
    Language Spoken: English,Chinese,French

  • How long does it take to get a quote back?

    Most quotes are returned within 24 hours

Testing

Cable inspection is divided into factory inspection and type inspection

1、 Factory inspection

Factory inspection includes 100% inspection and sampling inspection

100% inspection:(1)Electrical performance test;Insulated wire core voltage test(2)Delivery length

Sampling inspection should be carried out on cables that have completed 100% of the inspection items and passed the inspection.

Type inspection:(1)Structural dimension inspection:Insulation thickness, sheath thickness, cabling, shielding, lining, armor, outer diameter, the difference between the maximum outer diameter and the minimum outer diameter of the finished cable on the same section(2)Insulation mechanical and physical properties(3)Mechanical and physical properties of sheath(4)Electrical performance test:Conductor resistance、Finished product voltage test、Insulation resistance(5)Burning behavior of cables(6)Exterior:Printing logo, appearance.

2、 type inspection

Type test sample cables should be randomly selected from the cables that have passed the factory inspection.

Items for type inspection:(1)Structural dimension inspection:Insulation thickness, sheath thickness, cabling, shielding, lining, armor, outer diameter, the difference between the maximum outer diameter and the minimum outer diameter of the finished cable on the same section(2)Insulation mechanical and physical properties(3)Mechanical and physical properties of sheath(4)Electrical performance test:Conductor resistance、Finished product voltage test、Insulation resistance(5)Burning behavior of cables(6)Exterior:Printing logo, appearance.(7)Delivery length

Product performance requirements and test methods comply with the provisions of standard GB/T 9330-2008

acceptance

1、The purpose of the performance acceptance test is to verify whether all the performance of the contract products meet the requirements

2、The location of the performance acceptance test is the purchaser’s site

3、The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.

4、Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the demander. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.

5、Content of performance acceptance test

In accordance with supplier quality assurance and test requirements.

6、Criteria for performance acceptance test

In accordance with supplier's quality assurance and test requirements.

7、The performance acceptance test shall be conducted by the demander and participated by the supplier. The test program shall be provided by the demander and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.

8、 Confirmation of performance acceptance test results

The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be accepted by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.

9、When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.

Supervision

1、 Basis for supervision

Refer to the "Interim Provisions on Quality Supervision of Large Electric Power Equipment" and "Working Regulations of the General Representative Group in Large Electric Power Equipment Manufacturing Plants" issued by the former Ministry of Electric Power Industry and the Ministry of Machinery Industry.

Refer to DL/T 586-2008 "Technical Guidelines for Equipment Manufacturing Supervision"

GB/T 50319-2013 "Code for Supervision of Construction Projects", GB/T 19000-2016/ISO 9000:2015 "Quality Management and Quality Assurance" standards.

Relevant business terms and technical agreements in the equipment purchase contract signed between the user and the manufacturer, including legally binding documents, letters, correspondence, etc.

Product equipment drawings confirmed by the user and the manufacturer and modification notice issued by the design unit.

National standards, industry standards, and enterprise standards involved in technical documents and design drawings (subject to the latest version). If the standards used in technical documents and design drawings are inconsistent with each other, national standards, industry standards, and enterprise standards will be used in the derivation order.

When the design drawings are inconsistent with the quoted standards, the requirements in the standards shall prevail in principle, except for those with special requirements for parts and components.

2、Method of construction

Document witness, on-site witness and shutdown pending inspection, namely R point, W point, H point

After each manufacturing supervision content is completed, the supplier and the manufacturing supervision representative will complete the signature procedures on the witness form. The supplier shall submit one copy to the demander's manufacturing supervision representative

Point R: The supplier only needs to provide inspection or test records or report items, that is, document witness

Point W: Inspection or test items attended by the buyer’s supervision representative, that is, on-site witness

Point H: The supplier stops work at this point to wait for inspection or testing by the demander's manufacturing supervision representative, that is, the supplier stops work pending inspection.

After receiving the witness notice, the demander shall promptly send representatives to the supplier's inspection or testing site to participate in on-site witnessing or stop work pending inspection. If the representative of the demand side cannot attend on time, point W can be automatically converted to point R. However, if point H does not receive written notification from the demand side and agrees to be converted to point R, the supplier will not move to the next process on its own and agree with the demand side to change the witness time. . If the buyer still cannot participate on time after the change, point H will be automatically converted to point R.

3、Requirements for suppliers to cooperate with manufacturing supervision

3.1The supplier has the obligation to cooperate with the demander's supervision and provide relevant information in a timely manner without incurring any costs.

3.2The supplier provides work and life convenience to the demand-side manufacturing supervision representatives

3.3The supplier shall notify the demander's manufacturing supervision representative of the equipment manufacturing supervision items and time before witnessing on-site or suspending work for inspection.

3.4The demander's manufacturing supervision representative has the right to check (borrow) technical data related to the contract manufacturing supervision equipment. If the demander considers that it is necessary to copy and archive it, the supplier should provide convenience.

     3.5The supplier shall provide the inspection and test records and reports to the supervision representative of the demander after  the witness.

  • Please fill in your name

  • Please provide your phone number

  • Please fill in your email address

  • Please fill in your country

  • Please fill in your requirement information

  • Submit information

Hot Products

Home WhatsApp Mail Inquiry
