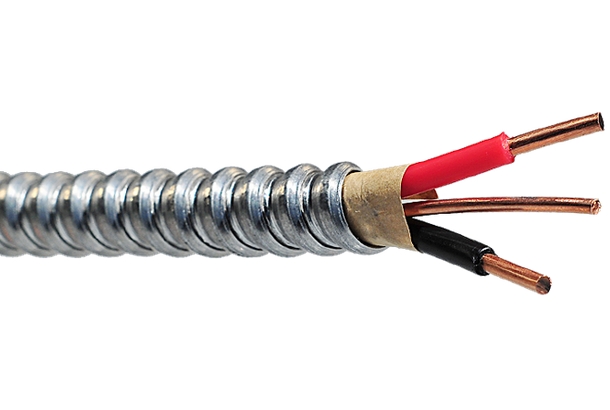

| AC90 600V – 2 Copper Conductors | ||
| Voltage: | 600V | |

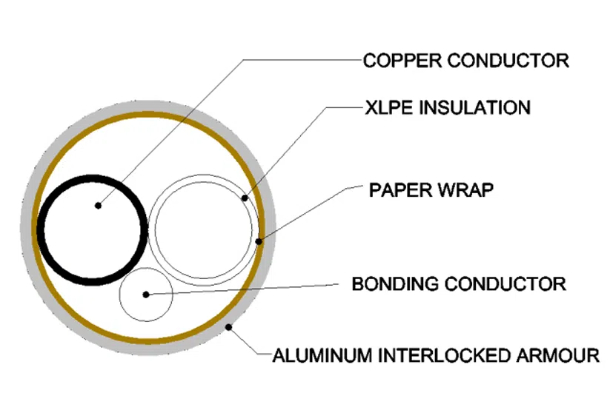

| Structure: | Conductor | Solid Soft Copper, ASTM B3 |
| Insulation |
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free |
|
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour | |
| Colour Code | Black, White | |
AC90 Armored Building Cable from Guowang has been certified by CSA/CUL, it is designed for harsh environments with exceptional flame resistance and low smoke emission properties.
Suitable for use in ventilated, non-ventilated, and ladder-type cable trays.
Approved for dry locations, ceiling plenums, exposed or concealed wiring, and aboveground service entrances.
AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance.
Solid Soft Copper, ASTM B3
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Solid Soft Bare Copper, ASTM B3
Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
CSA C22.2 No. 51, Armoured Cables (Type AC90)
CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90)
CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test
IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated
-40°C Cold Bend and -40°C Cold Impact
Limited Smoke and Halogen Free
-40°C to 90°C
600V
Insulation in colors according to the manufacturing standard.
| PART NO. | CONDUCTOR COUNT | CONDUCTOR SIZE | GROUND SIZE | INSULATION THICKNESS | CABLE DIAMETER | CABLE WEIGHT | MAX. PULLING TENSION | MIN. BEND RADIUS | AMPACITY (A) |
| 8021451 | 2 | 14 AWG | 14 AWG | 0.030 in | 0.430 in | 80 lbs/Mft | 66 lbs | 6.02 in | 20 |
| 0.76 mm | 10.9 mm | 120 kg/km | 30 kg | 153 mm | |||||
| 8021251 | 2 | 12 AWG | 12 AWG | 0.030 in | 0.454 in | 99 lbs/Mft | 104 lbs | 6.36 in | 24 |
| 0.76 mm | 11.6 mm | 148 kg/km | 47 kg | 161 mm | |||||
| 8021051 | 2 | 10 AWG | 12 AWG | 0.030 in | 0.512 in | 138 lbs/Mft | 166 lbs | 7.17 in | 32 |
| 0.76 mm | 13.0 mm | 206 kg/km | 75 kg | 182 mm |
