| AC90 600V – 3 Aluminum Conductors | ||
| Voltage: | 600V | |

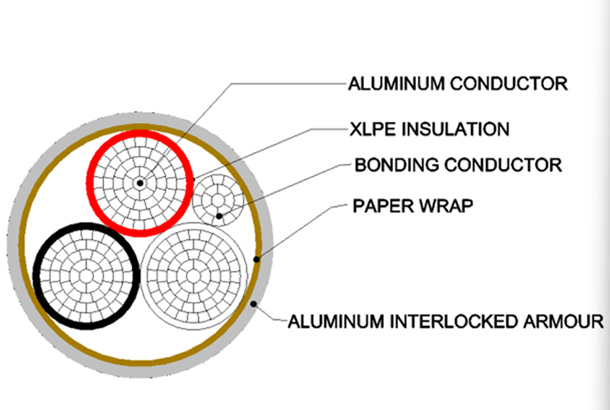

| Structure: | Conductor | Stranded AA-8000 Series Aluminum Alloy (ACM) |
| Insulation |
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free |
|
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour | |
| Colour Code | Black, White and Red | |

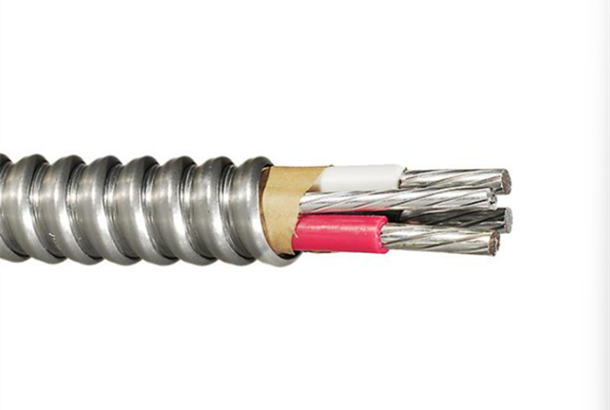

AC90 600 Volt Aluminum Wire is a flexible aluminum electrical cable with an armor that is specifically designed for open and concealed wiring in dry areas. It is also suitable for use in ventilated, non-ventilated, and ladder-type electrical cable trays. It serves as a cost-effective alternative to conduit wiring. The minimum temperature is -25°C for cables with two conductors, and -10°C for cables with three conductors. The maximum conductor temperature is 90°C. The wire is rated at 600V.
AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance.
Stranded AA-8000 Series Aluminum Alloy (ACM)
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Stranded AA-8000 Series Aluminum Alloy (ACM)
Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
CSA C22.2 No. 51, Armoured Cables (Type AC90)
CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90)
CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test
IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated
-40°C Cold Bend and -40°C Cold Impact
Limited Smoke and Halogen Free
-40°C to 90°C
600V
Insulation in colors according to the manufacturing standard.
| PART NO. | CONDUCTOR SIZE | GROUND SIZE | INSULATION THICKNESS | CABLE DIAMETER | CABLE WEIGHT | MAX PULLING TENSION | MIN. BEND RADIUS | AMPACITY (A) |
| 9030603 | 6 AWG | 8 AWG | 0.045 in. | 0.800 in. | 243 lbs/Mft | 526 lbs | 11.2 in. | 55 |
| 1.14 mm | 20.3 mm | 361 kg/km | 239 kg | 285 mm | ||||
| 9030403 | 4 AWG | 6 AWG | 0.045 in. | 0.880 in. | 286 lbs/Mft | 832 lbs | 12.3 in. | 75 |
| 1.14 mm | 22.4 mm | 426 kg/km | 377 kg | 313 mm | ||||
| 9030203 | 2 AWG | 6 AWG | 0.045 in. | 1.030 in. | 392 lbs/Mft | 1322 lbs | 14.4 in. | 100 |
| 1.14 mm | 26.2 mm | 583 kg/km | 600 kg | 366 mm | ||||
| 9030103 | 1 AWG | 4 AWG | 0.055 in. | 1.160 in. | 477 lbs/Mft | 1653 lbs | 16.2 in. | 115 |
| 1.40 mm | 29.5 mm | 710 kg/km | 750 kg | 413 mm | ||||
| 90301/003 | 1/0 AWG | 4 AWG | 0.055 in. | 1.250 in. | 622 lbs/Mft | 2081 lbs | 17.5 in. | 135 |
| 1.40 mm | 31.8 mm | 925 kg/km | 944 kg | 445 mm | ||||
| 90302/003 | 2/0 AWG | 4 AWG | 0.055 in. | 1.320 in. | 738 lbs/Mft | 2696 lbs | 18.5 in. | 150 |
| 1.40 mm | 33.5 mm | 1099 kg/km | 1223 kg | 469 mm | ||||
| 90303/003 | 3/0 AWG | 4 AWG | 0.055 in. | 1.420 in. | 843 lbs/Mft | 3375 lbs | 19.9 in. | 175 |
| 1.40 mm | 36.1 mm | 1254 kg/km | 1531 kg | 505 mm | ||||
| 90304/003 | 4/0 AWG | 4 AWG | 0.055 in. | 1.530 in. | 994 lbs/Mft | 4199 lbs | 21.4 in. | 205 |
| 1.40 mm | 38.9 mm | 1479 kg/km | 1905 kg | 544 mm | ||||
| 90325003 | 250 kcmil | 2 AWG | 0.065 in. | 1.641 in. | 1203 lbs/Mft | 5152 lbs | 23.0 in. | 230 |
| 1.65 mm | 41.7 mm | 1791 kg/km | 2337 kg | 584 mm | ||||
| 90330003 | 300 kcmil | 2 AWG | 0.065 in. | 1.828 in. | 1355 lbs/Mft | 5807 lbs | 25.6 in. | 260 |
| 1.65 mm | 46.4 mm | 2017 kg/km | 2634 kg | 650 mm | ||||
| 90335003 | 350 kcmil | 2 AWG | 0.065 in. | 1.843 in. | 1546 lbs/Mft | 7396 lbs | 25.8 in. | 280 |
| 1.65 mm | 46.8 mm | 2301 kg/km | 3355 kg | 655 mm | ||||
| 90340003 | 400 kcmil | 2 AWG | 0.065 in. | 1.991 in. | 1713 lbs/Mft | 7960 lbs | 27.9 in. | 305 |
| 1.65 mm | 50.6 mm | 2549 kg/km | 3611 kg | 708 mm | ||||
| 90350003 | 500 kcmil | 1 AWG | 0.080 in. | 2.155 in. | 2112 lbs/Mft | 9804 lbs | 30.2 in. | 350 |
| 2.03 mm | 54.7 mm | 3143 kg/km | 4447 kg | 766 mm | ||||
| 90360003 | 600 kcmil | 1 AWG | 0.080 in. | 2.320 in. | 2447 lbs/Mft | 12103 lbs | 32.5 in. | 385 |
| 2.03 mm | 59 mm | 3642 kg/km | 5490 kg | 825 mm | ||||
| 90375003 | 750 kcmil | 1/0 AWG | 0.080 in. | 2.523 in. | 2934 lbs/Mft | 15568 lbs | 35.3 in. | 435 |
| 2.03 mm | 64.1 m | 4367 kg/km | 7062 kg | 897 mm |
