| AC90 600V – 3 Copper Conductors | ||
| Voltage: | 600V | |

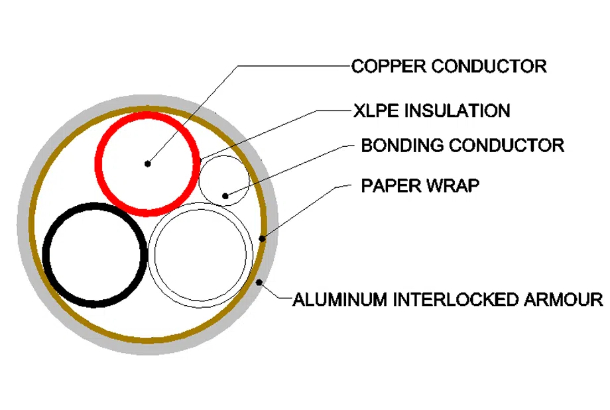

| Structure: | Conductor |
Solid Soft Copper, ASTM B3 8-2 AWG – Stranded Soft Copper, ASTM B8 |
| Insulation |
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free |
|
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour | |
| Colour Code |
Black, White and Red |
|

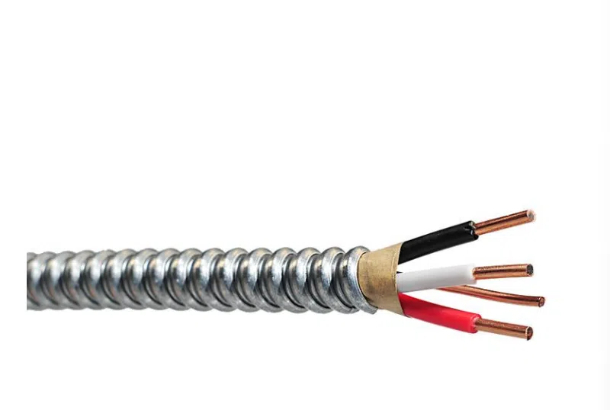

AC90 Armored Building Cable from Guowang has been certified by CSA/CUL, it is designed for harsh environments with exceptional flame resistance and low smoke emission properties.
Suitable for use in ventilated, non-ventilated, and ladder-type cable trays.
Approved for dry locations, ceiling plenums, exposed or concealed wiring, and aboveground service entrances.
AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance.
Solid Soft Copper, ASTM B3 8-2 AWG - Stranded Soft Copper, ASTM B8
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Solid ASTM B3 or Stranded ASTM B8 Soft Bare Copper
Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
CSA C22.2 No. 51, Armoured Cables (Type AC90)
CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90)
CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test
IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated
-40°C Cold Bend and -40°C Cold Impact
Limited Smoke and Halogen Free
-40°C to 90°C
600V
Insulation in colors according to the manufacturing standard.
| PART NO. | CONDUCTOR SIZE | GROUND SIZE | INSULATION THICKNESS | CABLE DIAMETER | CABLE WEIGHT | MAX PULLING TENSION | MIN. BEND RADIUS | AMPACITY (A) |
| 8021403 | 14/1 AWG | 14/1 AWG | 0.030 in. | 0.445 in. | 105 lbs/Mft | 99 lbs | 6.2 in. | 25 |
| 0.76 mm | 11.3 mm | 156 kg/km | 45 kg | 158 mm | ||||
| 8021203 | 12/1 AWG | 14/1 AWG | 0.030 in. | 0.490 in. | 130 lbs/Mft | 157 lbs | 6.9 in. | 30 |
| 0.76 mm | 12.4 mm | 193 kg/km | 71 kg | 174 mm | ||||
| 8021003 | 10/1 AWG | 12/1 AWG | 0.030 in. | 0.535 in. | 182 lbs/Mft | 249 lbs | 7.5 in. | 40 |
| 0.76 mm | 13.6 mm | 271 kg/km | 113 kg | 190 mm | ||||
| 8030803 | 8/7 AWG | 10/7 AWG | 0.045 in. | 0.714 in. | 309 lbs/Mft | 418 lbs | 10.0 in. | 55 |
| 1.14 mm | 18.1 mm | 460 kg/km | 190 kg | 254 mm | ||||
| 8030603 | 6/7 AWG | 8/7 AWG | 0.045 in. | 0.770 in. | 417 lbs/Mft | 702 lbs | 10.8 in. | 75 |
| 1.14 mm | 19.6 mm | 621 kg/km | 318 kg | 274 mm | ||||
| 8030403 | 4/7 AWG | 8/7 AWG | 0.045 in. | 0.940 in. | 601 lbs/Mft | 1193 lbs | 13.2 in. | 95 |
| 1.14 mm | 23.9 mm | 894 kg/km | 541 kg | 334 mm | ||||
| 8030303 | 3/7 AWG | 6/7 AWG | 0.045 in. | 0.990 in. | 721 lbs/Mft | 1622 lbs | 13.9 in. | 115 |
| 1.14 mm | 25.1 mm | 1073 kg/km | 736 kg | 352 mm | ||||
| 8030203 | 2/7 AWG | 6/7 AWG | 0.045 in. | 1.040 in. | 891 lbs/Mft | 1922 lbs | 14.6 in. | 130 |
| 1.14 mm | 26.4 mm | 1326 kg/km | 872 kg | 370 mm |
