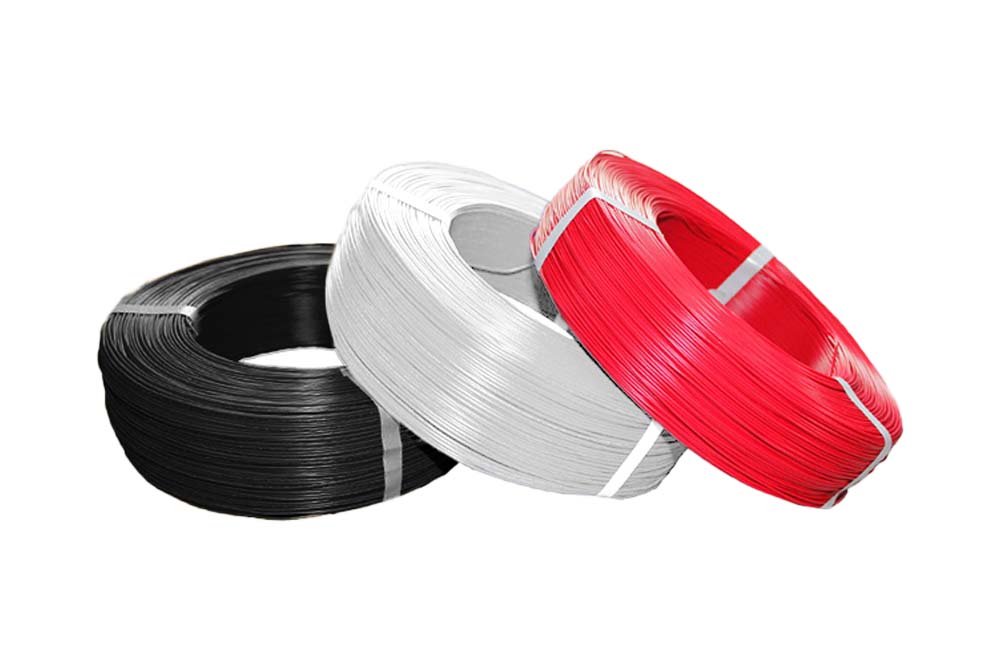

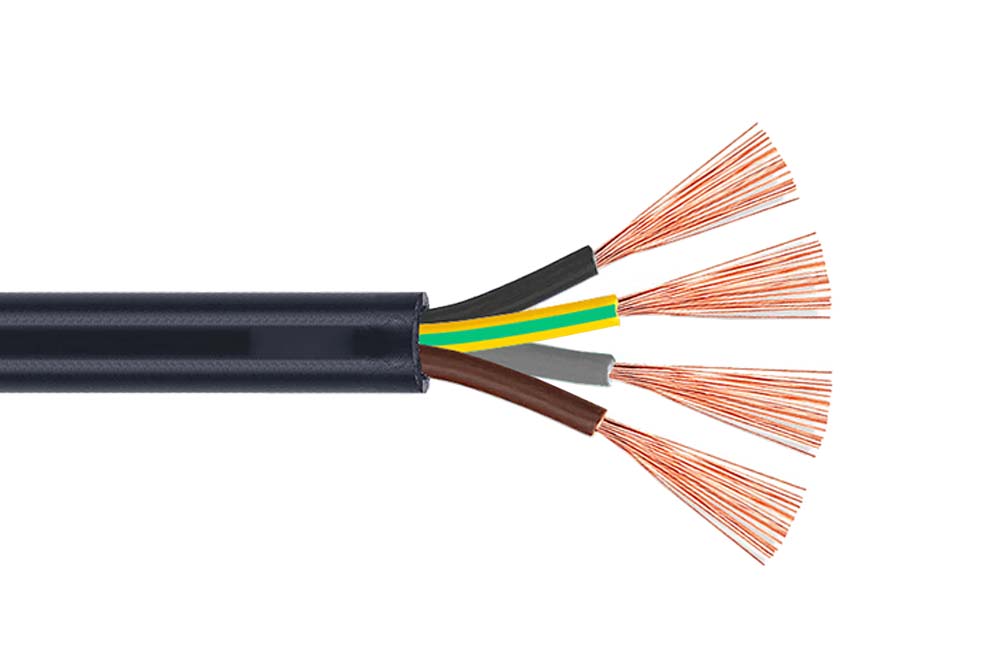

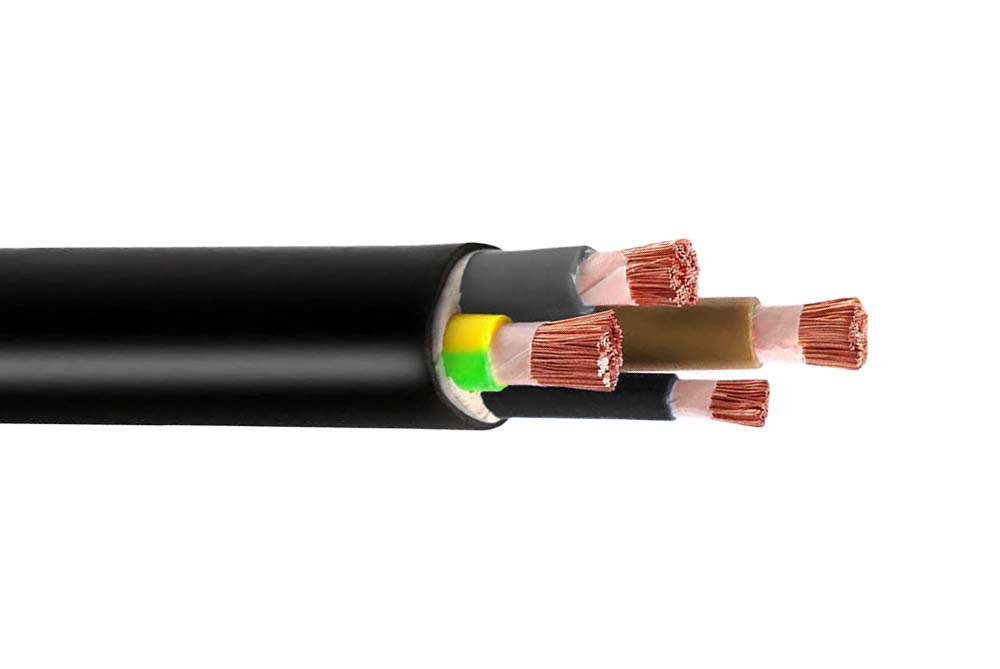

| H05VV-F | ||
| Voltage: | 300/500V | |

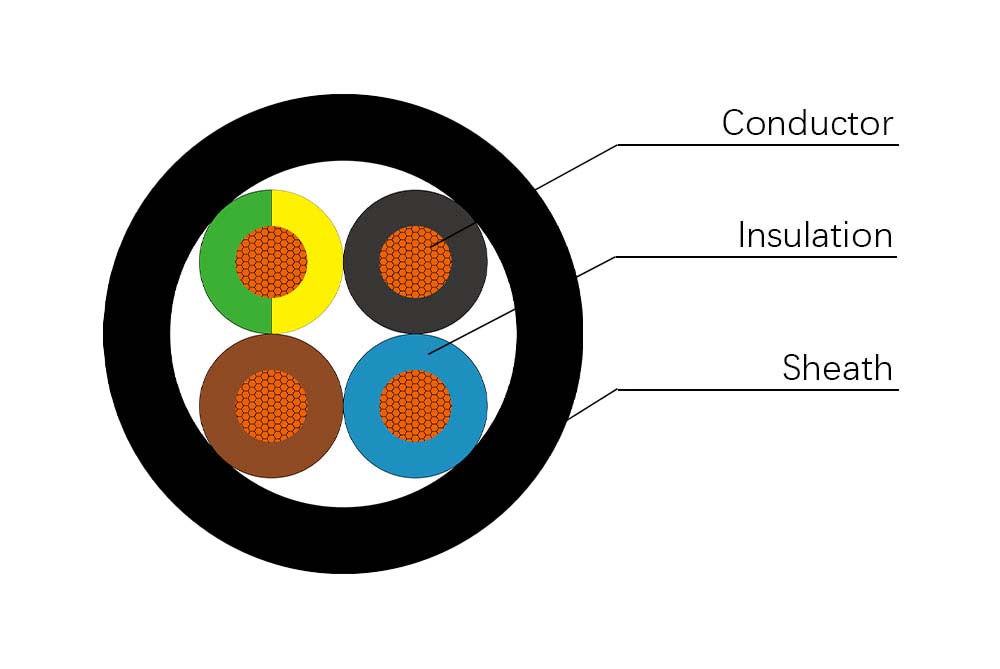

| Structure: | Conductor | Copper |
| Insulation | PVC | |
| Jacket | PVC | |
| Feature | Flexible cable | |
This cable is suitable for the power line with AC 50Hz and rated voltage is 300/500V.
It is used in power lines, control lines and signal transmission lines for electrical appliances, meters, electronic equipment and automation devices, and it can also be used in anti-theft alarm systems, building intercom systems, etc.
This cable has the characteristics of good flexibility, high bending performance, good insulation performance, simple manufacturing process, stable structure and certain wear resistance.
JB/T 8734-2012, the PVC insulated flexible wires and flexible cables with rated voltage of 450/750V and below.
The rated voltage is 0.3/0.5kV.
The maximum allowable long-term operating temperature of the cable conductor is 70℃.
The Environment temperature of the cable should not be lower than 0℃.
The laying temperature of the cable should not be lower than 0℃.
The allowable bending radius of a cable with an outer diameter (D) smaller than 25mm should be not less than 4D, and the allowable bending radius of a cable with an outer diameter (D) greater than 25mm should be not less than 6D.

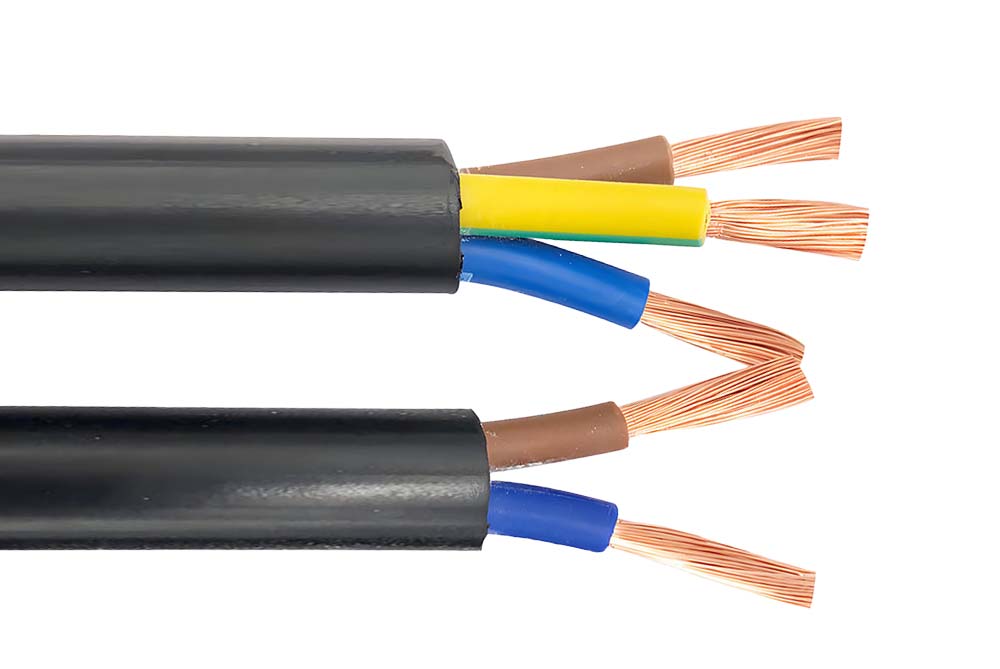

Color identification: Two-core cable: blue, brown; Three-core cable: gray, brown, black; Four-core cable: blue, brown, gray, black; Five-core cable: blue, brown, black, gray, black; For cables larger than 5 cores, digital identification is adopted.
1.The cable should have continuous identification of the manufacturer's name, product model and rated voltage, and the manufacturer's name identification can be repeated identification of the manufacturer or trademark;
The distance between the end of one complete sign and the beginning of the next sign shall not exceed 275mm; The printed logo should be erasable and not easy to fall off, and the printed content on the surface should be clearly recognizable.
Each loop of cable should be 100m in length, and the length of the cable drum should be greater than 100m. Delivery of short segments not less than 10m in length shall be permitted, the number of which shall not exceed 10% of the total length of delivery, and the number of short segments in each piece shall not exceed 5, or delivery of cables of any length may be permitted by mutual agreement.
The measurement error of delivery length is ±0.5%.
Cables in rolls and coils should be neatly wound and properly packed; The cable tray shall comply with the provisions of JB/T8137-1999; The cable ends should be securely sealed, and the cable ends extending out of the disk should be covered with a protective cover, the length of the cable ends extending out of the disk should be less than 300mm. It should be labeled with a content on the package of the cable: manufacturer name, model, specification, rated voltage, length, quality, manufacturing date, standard number or certification mark, the correct rotation direction of the cable tray, etc.
Transport is generally in the form of vehicles and ships, and the cable must be firmly fixed during transport to avoid bumping or tipping over to cause damage to the cable or drum. Do not lay the cable tray flat; It is strictly forbidden to drop the cable tray containing the cable from a height during transportation.
The finished cable should be stored in an environment where the temperature is between 5 and 40℃, and the humidity is below 85%, so that it is not directly exposed to sunlight or rain, and should be properly ventilated to keep the environment dry.
The model, specification, length, delivery date, packing method and other necessary information of the cable should be correctly marked when ordering, such as:
Model: H05VV-F
Specification: 7×1.0
Length: 1000m
Packing method: pure wooden tray packing
Date of delivery: to date
Effective transport method: train transport, automobile transport, ship transport or air transport
Place of delivery: buyer's warehouse or site or the buyer's own pick-up
Note: The mode of transport and the place of delivery shall be designated by the buyer.
During installation, the ambient temperature should not be lower than 0℃. If the ambient temperature measured by the thermometer is lower than 0℃, preheat the cable before preparing for installation. In high temperature environments without effective insulation measures, frequent sunlight or cold places, the corresponding special type of plastic wire should be selected.
| SPECIFICATION | CONDUCTOR STRUCTURE | OUTER DIAMETER OF CONDUCTOR (MM) |
INSULATION THICKNESS (MM) |
SHEATH THICKNESS (MM) |
OUTSIDE DIAMETER (MM) |
WEIGHT (kg/km) |
MAXIMUM DC RESISTANCE AT 20℃ (Ω/km) |
Minimum insulation resistance at operating temperature (KΩ/km) |
TESTING VOLATAGE (KV/min) | MAXIMUM ALLOWABLE TRACTIVE FORCE (N) |
| 2×4 | 56/0.30 | 2.56 | 0.8 | 1.1 | 10.5 | 186.2 | 4.95 | 0.0079 | 2/5 | 560 |
| 2×6 | 84/0.30 | 3.54 | 0.8 | 1.1 | 12.5 | 261 | 3.3 | 0.0069 | 2/5 | 840 |
| 2×10 | 77/0.40 | 4.56 | 1 | 1.2 | 15.5 | 409.3 | 1.91 | 0.0056 | 2/5 | 1400 |
| 3×4 | 56/0.30 | 2.56 | 0.8 | 1.2 | 11.4 | 234.8 | 4.95 | 0.0079 | 2/5 | 840 |
| 3×6 | 84/0.30 | 3.54 | 0.8 | 1.2 | 13.5 | 328.5 | 3.3 | 0.0069 | 2/5 | 1260 |
| 3×10 | 77/0.40 | 4.56 | 1 | 1.4 | 16.9 | 523.3 | 1.91 | 0.0056 | 2/5 | 2100 |
| 4×4 | 56/0.30 | 2.56 | 0.8 | 1.2 | 12.4 | 288.5 | 4.95 | 0.0079 | 2/5 | 1120 |
| 4×6 | 84/0.30 | 3.54 | 0.8 | 1.2 | 14.8 | 404.9 | 3.3 | 0.0069 | 2/5 | 1680 |
| 4×10 | 77/0.40 | 4.56 | 1 | 1.4 | 18.6 | 646.2 | 1.91 | 0.0056 | 2/5 | 2800 |
| 5×4 | 56/0.30 | 2.56 | 0.8 | 1.4 | 14.0 | 357.6 | 4.95 | 0.0079 | 2/5 | 1400 |
| 5×6 | 84/0.30 | 3.54 | 0.8 | 1.4 | 17.8 | 539.9 | 3.3 | 0.0069 | 2/5 | 2100 |
| 5×10 | 77/0.40 | 4.56 | 1 | 1.6 | 22.0 | 843.5 | 1.91 | 0.0056 | 2/5 | 3500 |
| 6×0.75 | 24/0.20 | 1.12 | 0.4 | 0.8 | 7.4 | 89.9 | 26 | 0.0110 | 2/5 | 315 |
| 6×1.0 | 32/0.20 | 1.29 | 0.6 | 1.0 | 9.5 | 138.3 | 19.5 | 0.0100 | 2/5 | 420 |
| 6×1.5 | 30/0.25 | 1.56 | 0.7 | 1.1 | 11.1 | 193.1 | 13.3 | 0.0100 | 2/5 | 630 |
| 6×2.5 | 49/0.25 | 2.00 | 0.8 | 1.2 | 13.2 | 286.6 | 7.98 | 0.0086 | 2/5 | 1050 |
| 7×0.75 | 24/0.20 | 1.12 | 0.4 | 0.8 | 7.4 | 99.6 | 26 | 0.0110 | 2/5 | 368 |
| 7×1.0 | 32/0.20 | 1.29 | 0.6 | 1.1 | 9.7 | 157.2 | 19.5 | 0.0100 | 2/5 | 490 |
| 7×1.5 | 30/0.25 | 1.56 | 0.7 | 1.1 | 11.1 | 213.7 | 13.3 | 0.0100 | 2/5 | 735 |
| 7×2.5 | 49/0.25 | 2.00 | 0.8 | 1.2 | 13.2 | 318.7 | 7.98 | 0.0086 | 2/5 | 1225 |
| 8×0.75 | 24/0.20 | 1.12 | 0.4 | 1.0 | 8.3 | 119.4 | 26 | 0.0110 | 2/5 | 420 |
| 8×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 10.6 | 181.0 | 19.5 | 0.0100 | 2/5 | 560 |
| 8×1.5 | 30/0.25 | 1.56 | 0.7 | 1.2 | 12.2 | 245.5 | 13.3 | 0.0100 | 2/5 | 840 |
| 8×2.5 | 49/0.25 | 2.00 | 0.8 | 1.2 | 14.3 | 358.1 | 7.98 | 0.0086 | 2/5 | 1400 |
| 10×0.5 | 16/0.20 | 0.91 | 0.4 | 1.0 | 8.8 | 116.7 | 26 | 0.0120 | 2/5 | 350 |
| 10×0.75 | 24/0.20 | 1.12 | 0.4 | 1.0 | 9.7 | 149.9 | 19.5 | 0.0110 | 2/5 | 525 |
| 10×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 12.4 | 227.7 | 13.3 | 0.0100 | 2/5 | 700 |
| 10×1.5 | 30/0.25 | 1.56 | 0.7 | 1.4 | 14.6 | 323.8 | 7.98 | 0.0100 | 2/5 | 1050 |
| 10×2.5 | 49/0.25 | 2.00 | 0.8 | 1.5 | 17.4 | 478.1 | 39 | 0.0086 | 2/5 | 1750 |
| 12×0.5 | 16/0.20 | 0.91 | 0.4 | 1.0 | 9.1 | 130.8 | 26 | 0.0120 | 2/5 | 420 |
| 12×0.75 | 24/0.20 | 1.12 | 0.4 | 1.2 | 10.4 | 178.9 | 19.5 | 0.0110 | 2/5 | 630 |
| 12×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 12.7 | 256.4 | 13.3 | 0.0100 | 2/5 | 840 |
| 15×0.75 | 24/0.20 | 1.12 | 0.4 | 1.2 | 11.4 | 216.7 | 7.98 | 0.0110 | 2/5 | 788 |
| 15×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 14.1 | 312.1 | 39 | 0.0100 | 2/5 | 1050 |
| 16×0.75 | 24/0.20 | 1.12 | 0.4 | 1.2 | 11.4 | 223.5 | 26 | 0.0110 | 2/5 | 840 |
| 16×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 14.1 | 321.7 | 19.5 | 0.0100 | 2/5 | 1120 |
| 19×0.75 | 24/0.20 | 1.12 | 0.4 | 1.2 | 12.0 | 256.1 | 26 | 0.0110 | 2/5 | 998 |
| 19×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 14.9 | 369.6 | 19.5 | 0.0100 | 2/5 | 1330 |
| 20×0.5 | 16/0.20 | 0.91 | 0.4 | 1.2 | 11.2 | 204.6 | 26 | 0.0120 | 2/5 | 700 |
| 20×0.75 | 24/0.20 | 1.12 | 0.6 | 1.2 | 12.3 | 266.4 | 19.5 | 0.0110 | 2/5 | 1050 |
| 20×1.0 | 32/0.20 | 1.29 | 0.4 | 1.2 | 15.2 | 384.3 | 26 | 0.0100 | 2/5 | 1400 |
| 24×0.75 | 24/0.20 | 1.12 | 0.4 | 1.2 | 13.9 | 319.8 | 19.5 | 0.0110 | 2/5 | 1260 |
| 24×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 17.3 | 463.2 | 39 | 0.0100 | 2/5 | 1680 |
| 25×0.75 | 24/0.20 | 1.12 | 0.4 | 1.2 | 14.2 | 332.9 | 26 | 0.0110 | 2/5 | 1313 |
| 25×1.0 | 32/0.20 | 1.29 | 0.6 | 1.2 | 17.7 | 482.6 | 19.5 | 0.0100 | 2/5 | 1750 |
| 30×0.75 | 24/0.20 | 1.12 | 0.4 | 1.4 | 15.1 | 395.2 | 26 | 0.0110 | 2/5 | 1575 |
| 30×1.0 | 32/0.20 | 1.29 | 0.6 | 1.4 | 18.8 | 571 | 19.5 | 0.0100 | 2/5 | 2100 |
| 37×0.75 | 24/0.20 | 1.12 | 0.4 | 1.4 | 16.2 | 470.9 | 26 | 0.0110 | 2/5 | 1943 |
| 37×1.0 | 32/0.20 | 1.29 | 0.6 | 1.4 | 20.2 | 682.2 | 19.5 | 0.0100 | 2/5 | 2590 |
| 40×0.75 | 24/0.20 | 1.12 | 0.4 | 1.4 | 18.2 | 519.8 | 26 | 0.0110 | 2/5 | 2100 |
| 40×1.0 | 32/0.20 | 1.29 | 0.6 | 1.4 | 22.7 | 754 | 19.5 | 0.0100 | 2/5 | 2800 |
| 41×0.75 | 24/0.20 | 1.12 | 0.4 | 1.4 | 18.2 | 529.4 | 26 | 0.0110 | 2/5 | 2153 |
| 41×1.0 | 32/0.20 | 1.29 | 0.6 | 1.4 | 22.7 | 768.4 | 19.5 | 0.0100 | 2/5 | 2870 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
Test item: Conductor DC resistance, insulation thickness measurement, sheath thickness measurement, dimension measurement;
Test item：Conductor DC resistance, insulated core voltage test, finished cable voltage test, insulation resistance, insulation thickness measurement, sheath thickness measurement, dimension measurement, insulation aging test, sheath aging test, non-pollution test, high temperature pressure test, thermal shock test, weight loss test, flex test, non-delay fire test; Product performance requirements and test methods shall comply with the provisions of standard JB/T 8744-2012.
The purpose of the performance acceptance test is to check whether all the properties of the contract products meet the requirements.
The site of performance acceptance test shall be the buyer's site.
The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.
Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the buyer. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.
The content of performance acceptance test shall be in accordance with the supplier's quality assurance and test requirements.
The standard of performance acceptance test shall be in accordance with the supplier's quality assurance and test requirements.
The performance acceptance test shall be conducted by the buyer and participated by the supplier. The test program shall be provided by the buyer and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.
Confirmation of performance acceptance test results The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be recognized by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.
When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.
supervision based on reference to the former Ministry of Power Industry, Ministry of Machinery Industry issued by the electricity Office (1995) No. 37 "Interim Provisions for the quality supervision of large power equipment", "Regulations on the work of the general representative group in large power equipment manufacturers". Refer to DL/T 586-2008 Technical Guidelines for Equipment Supervision. GB/T 50319-2013 "Construction engineering supervision Code", GB/T 19000-2016/ISO 9000:2015 "Quality management and quality assurance" standard. The relevant commercial terms and technical agreements in the equipment purchase contract signed between the user and the manufacturer, including the documents, letters, correspondence and so on, which have legal effect. The product equipment drawing confirmed by the user and the manufacturer and the modification notice issued by the design unit. Technical documents and design drawings related to national standards, industry standards, enterprise standards (subject to the latest version). If the standards adopted by the technical documents and the design drawings are inconsistent with each other, the national standards, industry standards, and enterprise standards shall be adopted as the recurrence order. When the design drawing is inconsistent with the reference standard, the requirements in the standard shall prevail in principle, except for the special requirements of the parts.
document witness, on-site witness and stoppage for inspection, namely R point, W point, H point. Each time after the completion of the supervision content, the supplier and the supervision representative will perform the signature procedure on the witness form. The supplier shall deliver one copy to the buyer's supervision representative. Point R: The supplier only needs to provide inspection or test records or reports of the item, that is, document witness. Point W: The inspection or test project attended by the representative of the buyer's supervision, that is, the on-site witness. H point: The project where the supplier stops work to wait for the inspection or test attended by the representative of the supervision of the buyer at that point shall be stopped for inspection. Upon receipt of the witness notice, the demander shall promptly send a representative to the site of the supplier's inspection or test to participate in on-site witness or stop work for inspection. If the representative of the demander cannot attend on time, point W can be automatically converted to point R, but if point H is not agreed to be converted to point R by written notice of the demander, the supplier will not transfer to the next process and agree with the demander to change the witness time. If the buyer is still unable to participate on time after the change, the H point will be automatically converted to R point.
Requirements for suppliers to cooperate with supervision.
3.1 The supplier has the obligation to cooperate with the demander's supervision and provide relevant information in a timely manner without incurring any costs.
3.2 The Supplier shall provide the demander's supervision representative with the convenience of work and life.
3.3 The supplier shall inform the Buyer's representative of the equipment supervision project and time before witnessing the site or stopping work for inspection.
3.4 Demander's supervision representative has the right to check (borrow) the technical information related to the contract supervision equipment. If demander considers it necessary to copy and file, the supplier shall provide convenience. 3.5 The supplier shall provide the inspection and test records and reports to the supervision representative of the demander after the witness.
