H07V-R / H07V-U Wire | ||
Voltage: | 450/750V | |
Structure: | Conductor |

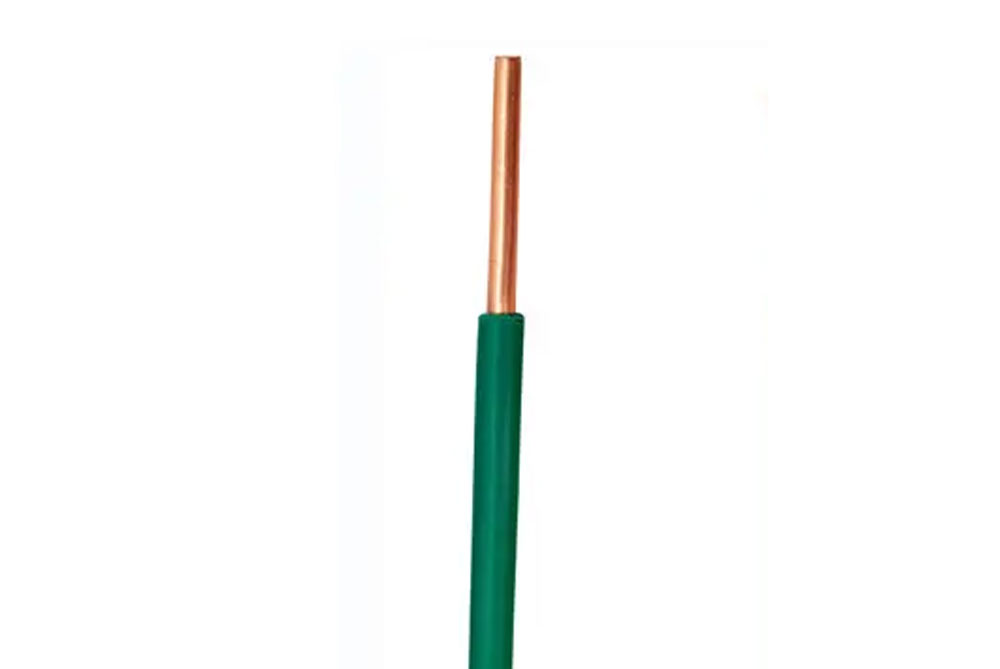

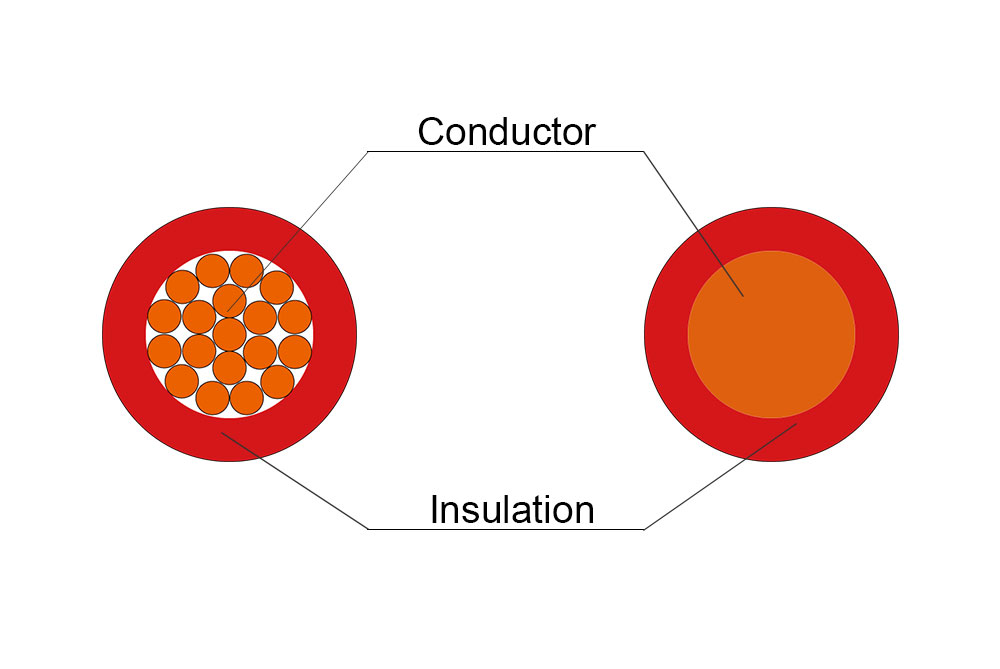

Class 2 stranded copper conductor |
Insulation |
PVC (Polyvinyl Chloride) |
|
Jacket | No | |
Feature | Fixed wiring |
Cable H07V-R/H07V-U is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal.
wiring of appliances.
450/750V
-15°C to +70°C
Up to 10mm²: 3 x overall diameter
10mm² to 25mm²: 4 x overall diameter
Above 25mm²: 5 x overall diameter
EN 50525-2-31
Flame Retardant according to IEC/EN 60332-1-2
Class 2 stranded copper conductor
PVC (Polyvinyl Chloride)

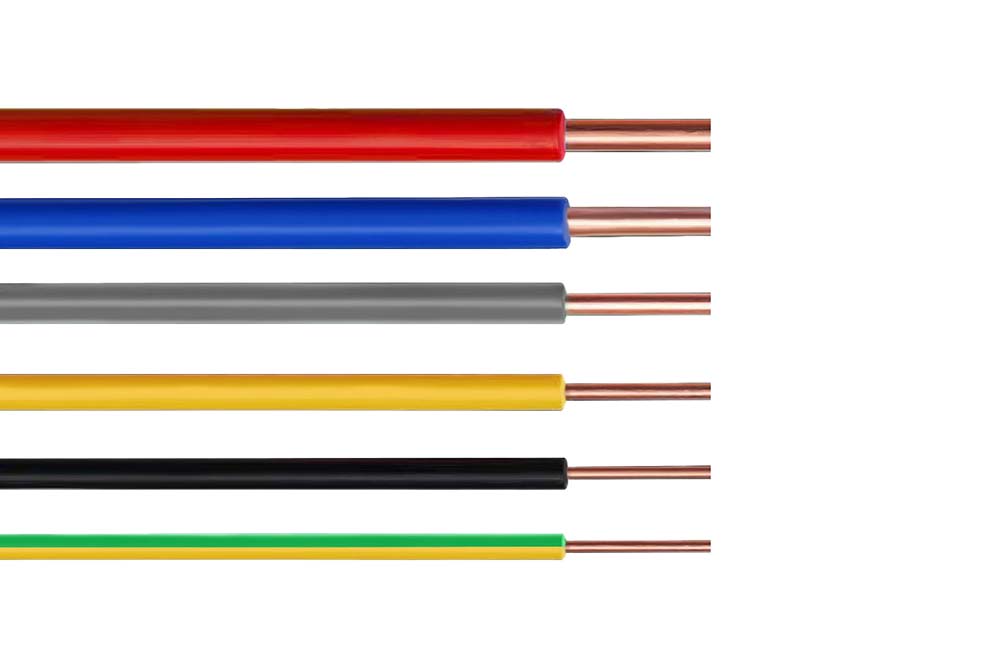

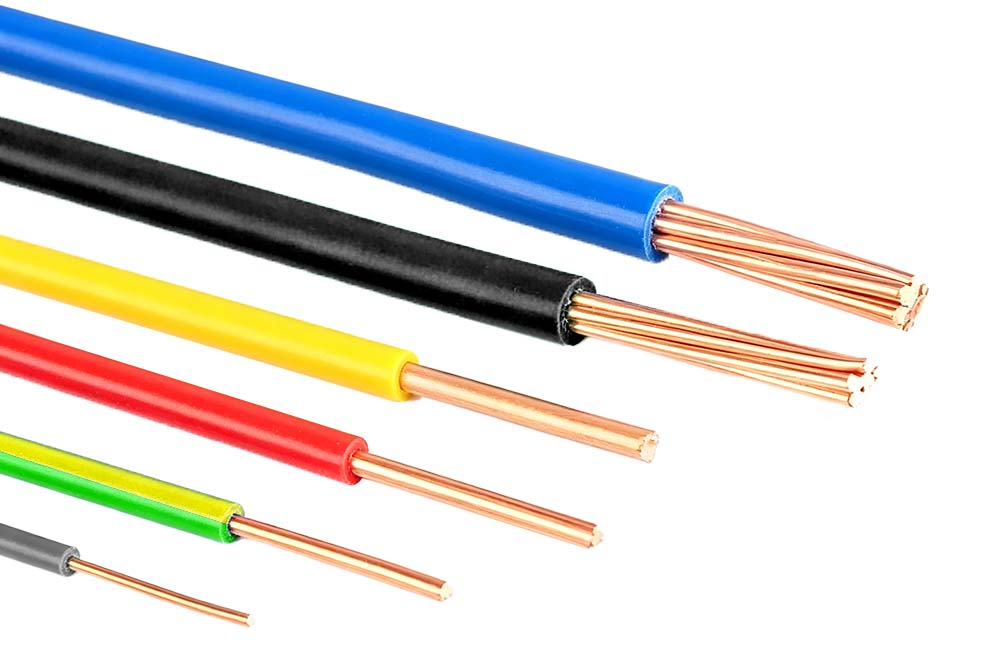

Red, Black, Blue, Yellow, White, Green/Yellow, Grey, Brown.

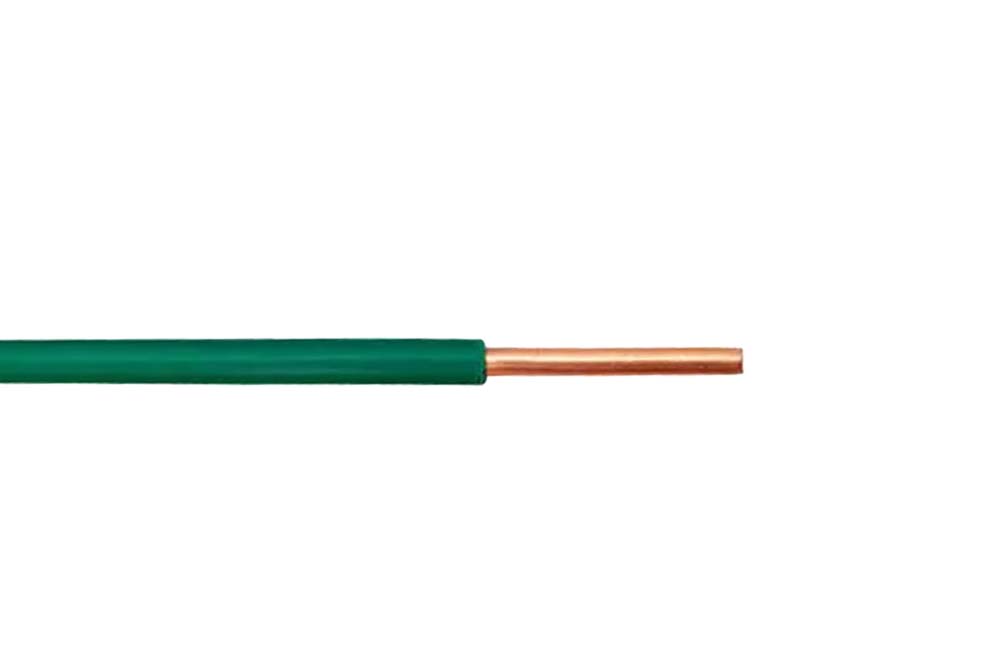

5mm² to 10mm² also available as H07V-U Class 1 solid copper conductor
NOMINAL CROSS SECTIONAL AREA mm2 |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
1.5 | 0.7 | 2.9 | 22 |
2.5 | 0.8 | 3.6 | 32 |
4 | 0.8 | 4.1 | 50 |
6 | 0.8 | 4.7 | 71 |
10 | 1 | 5.9 | 110 |
16 | 1 | 6.8 | 164 |
25 | 1.2 | 8.4 | 256 |
35 | 1.2 | 9.4 | 346 |
50 | 1.4 | 11 | 473 |
70 | 1.4 | 12.7 | 674 |
95 | 1.6 | 14.7 | 913 |
120 | 1.6 | 16.2 | 1150 |
150 | 1.8 | 18 | 1416 |
185 | 2 | 20 | 1749 |
240 | 2.2 | 23 | 2317 |
300 | 2.4 | 25.2 | 3049 |
400 | 2.6 | 28.4 | 3657 |
500 | 2.8 | 31.8 | 4700 |
630 | 2.8 | 38.1 | 5890 |
