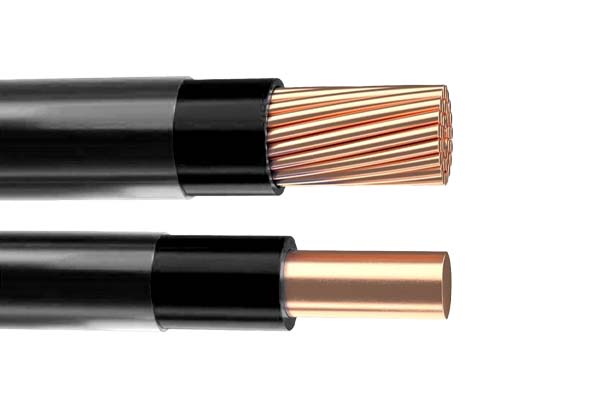

| THHN / THWN-2 Copper Electric Wire | ||
| Voltage: | 600V | |

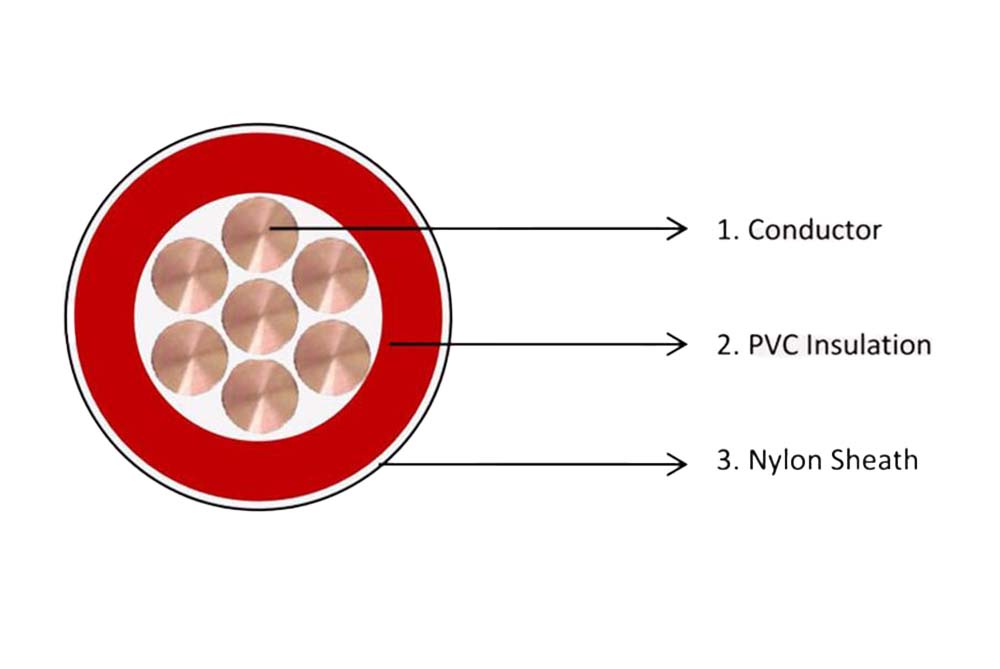

| Structure: | Conductor | Solid, Soft annealed bare copper |
| Insulation | Heat and moisture resistant PVC insulation in various colors | |
| Sheath | External cover in polyamide (nylon) | |

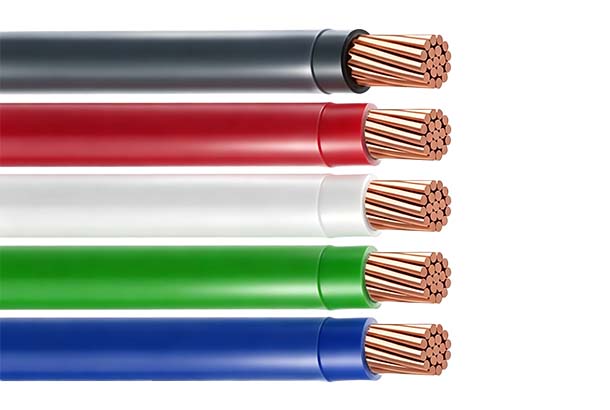

| Insulation Colour | Red Black White Blue Green Pink etc | |
Low voltage electrical energy distribution; for use in electrical wiring of buildings, feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive sites or sites contaminated with oil, grease, gasoline, and other chemical substances.
They are suitable for installation in ducts, pipes, boards, and cable trays according to RETIE article 20.3 literal J, from 12 AWG gauge and larger.
Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.
Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.
600V
90°C dry and wet places
ASTM B8； ASTM B 3； UL 83
Solid，Soft annealed bare copper
Heat and moisture resistant PVC insulation in various colors
External cover in polyamide (nylon)
Red Black White Blue Green Pink etc

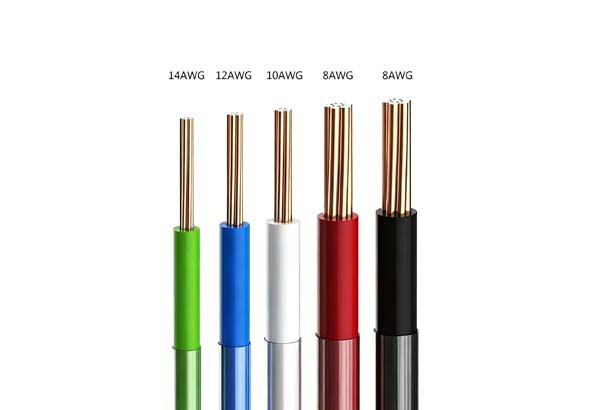

| Cond. Size | Strand Count | Diameter Over Conductor | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | DC Resistance @ 20°C | Allowable Ampacity At 75°C | Allowable Ampacity At 90°C |
| AWG/ Kcmil | Minimum Number of Strands | mm | mm | mm | mm | KG/KM | Ω/KM | Amp | Amp |
| 14 | Solid | 1.63 | 0.38 | 0.1 | 2.9 | 24.7 | 8.45 | 15 | 15 |
| 12 | Solid | 2.05 | 0.38 | 0.1 | 3.3 | 36.5 | 5.31 | 20 | 20 |
| 10 | Solid | 2.59 | 0.51 | 0.1 | 4.1 | 58.1 | 3.34 | 30 | 30 |
| 8 | 7 | 3.4 | 0.76 | 0.13 | 5.5 | 98.3 | 2.14 | 50 | 55 |
| 6 | 7 | 4.29 | 0.76 | 0.13 | 6.4 | 147.2 | 1.35 | 65 | 75 |
| 4 | 7 | 5.41 | 1.02 | 0.15 | 8.1 | 234.5 | 0.848 | 85 | 95 |
| 3 | 7 | 6.02 | 1.02 | 0.15 | 8.7 | 288.2 | 0.673 | 100 | 115 |
| 2 | 7 | 6.81 | 1.02 | 0.15 | 9.5 | 356.1 | 0.534 | 115 | 130 |
| 1 | 18 | 7.59 | 1.27 | 0.18 | 10.8 | 456.1 | 0.423 | 130 | 145 |
| 1/0 | 18 | 8.53 | 1.27 | 0.18 | 11.8 | 564.3 | 0.335 | 150 | 170 |
| 2/0 | 18 | 9.55 | 1.27 | 0.18 | 12.8 | 698 | 0.266 | 175 | 195 |
| 3/0 | 18 | 10.74 | 1.27 | 0.18 | 14 | 866.4 | 0.211 | 200 | 225 |
| 4/0 | 18 | 12.07 | 1.27 | 0.18 | 15.3 | 1079.5 | 0.167 | 230 | 260 |
| 250 | 35 | 13.21 | 1.52 | 0.2 | 17 | 1284.1 | 0.142 | 255 | 290 |
| 300 | 35 | 14.48 | 1.52 | 0.2 | 18.3 | 1528.4 | 0.118 | 285 | 320 |
| 350 | 35 | 15.65 | 1.52 | 0.2 | 19.4 | 1770.8 | 0.101 | 310 | 350 |
| 400 | 35 | 16.74 | 1.52 | 0.2 | 20.5 | 2007.8 | 0.0885 | 335 | 380 |
| 500 | 35 | 18.69 | 1.52 | 0.2 | 22.5 | 2481.2 | 0.0709 | 380 | 430 |
| 600 | 58 | 20.65 | 1.78 | 0.23 | 25 | 2995.8 | 0.059 | 420 | 475 |
| 750 | 58 | 22.28 | 1.78 | 0.23 | 26.7 | 3469.8 | 0.0472 | 475 | 535 |
| 1000 | 58 | 26.92 | 1.78 | 0.23 | 31.3 | 4896.4 | 0.0354 | 545 | 615 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.
Henan Guowang Cable is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.
Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
