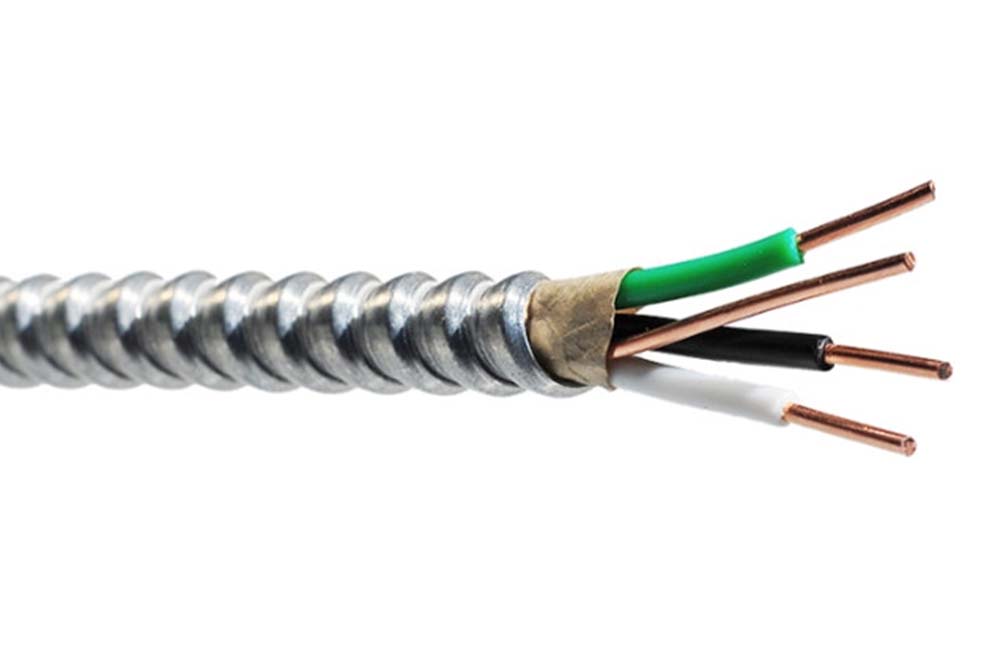

| ISO-AC90 600V – Copper Conductors | ||
| Voltage: | 600V | |

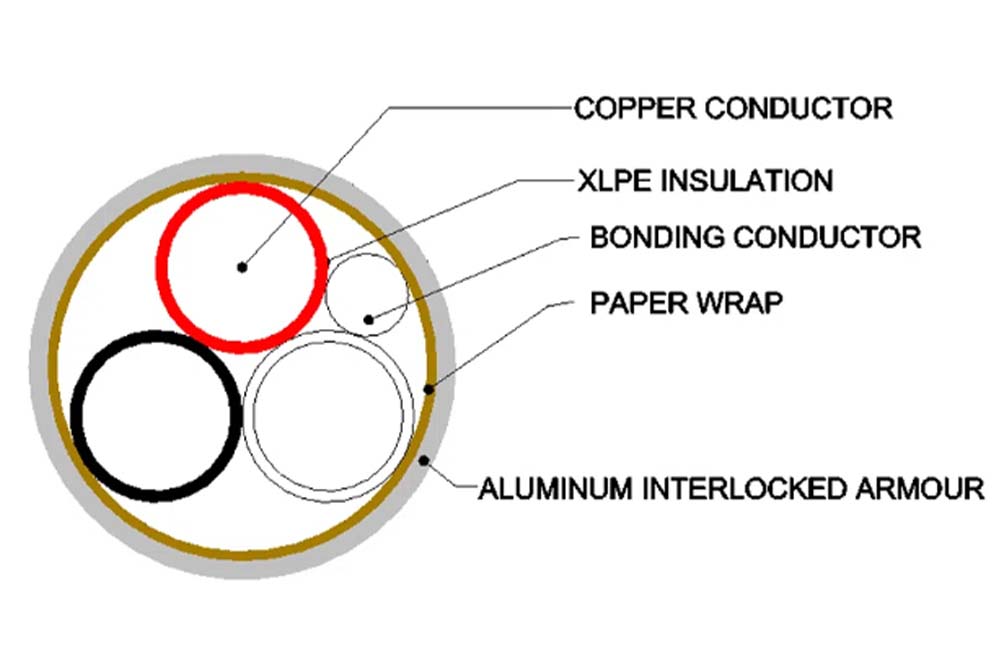

| Structure: | Conductor | Solid Soft Copper, ASTM B3 |
| Insulation | Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free | |
| Bonding Conductor | Solid ASTM B3 Soft Bare Copper | |
| Armour | Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour | |
| Sheath Colour | 2 Core: Black White 2 Core: Black Red 3 Core: Black White Red 4 Core: Black White Red and Blue |
|
AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance. For use in ventilated, non-ventilated and ladder-type cable trays. For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.
600V
-40°C to 90°C
Industry compliances: CSA Standard C22.2 No. 51, No.38 and No.2256, RoHS
Flame test compliances: CSA ST1 and FT4
Solid Soft Copper, ASTM B3
Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Solid ASTM B3 Soft Bare Copper
Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour

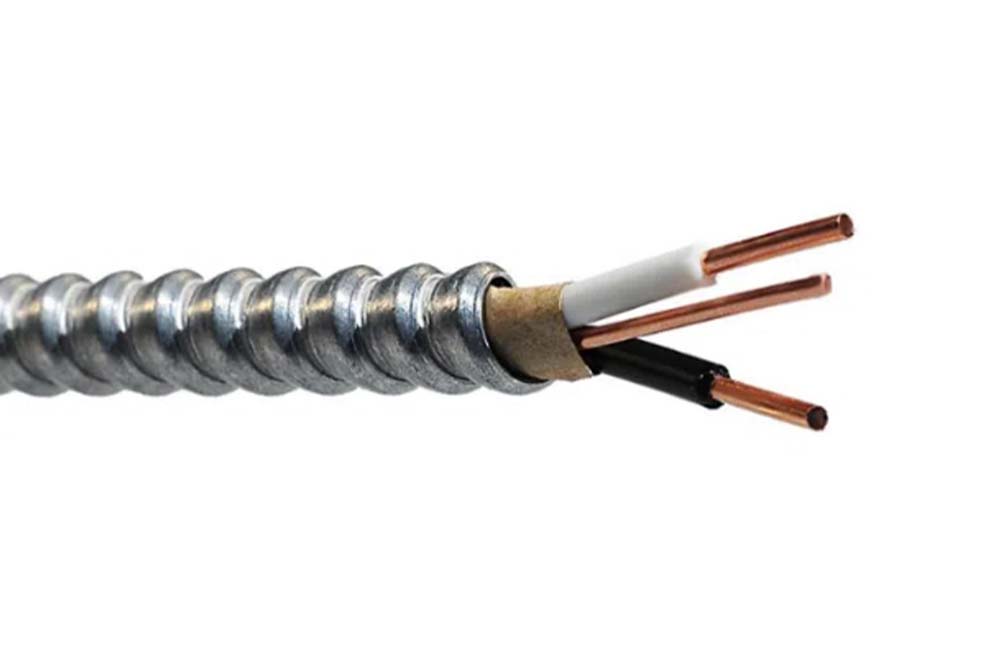

2 Core: Black White
2 Core: Black Red

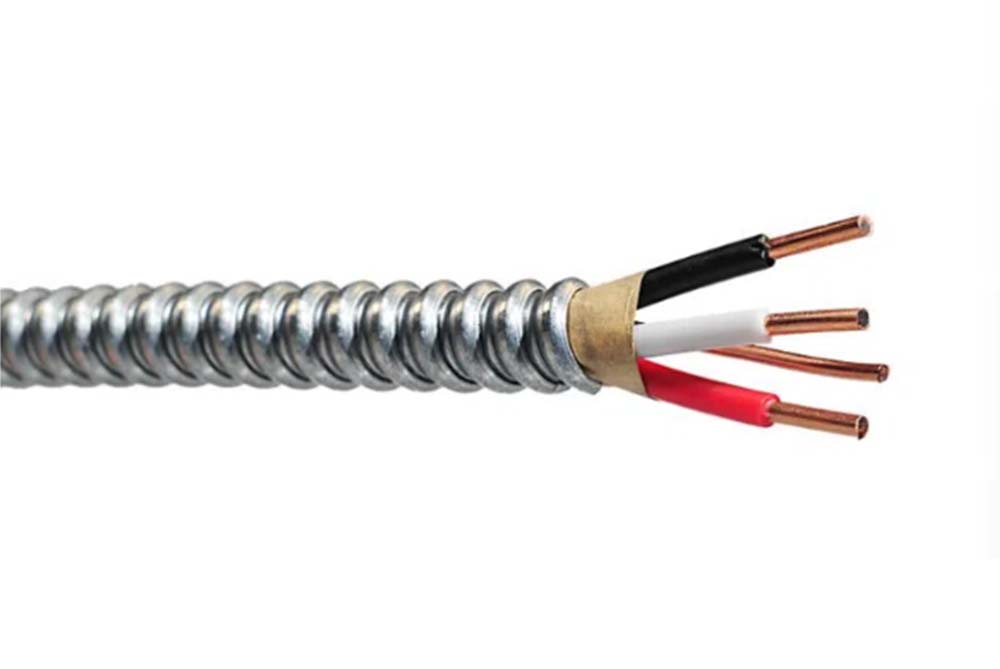

3 Core: Black White Red
4 Core: Black White Red and Blue
| CONDUCTOR COUNT | CONDUCTOR SIZE | INS. GROUND SIZE | GROUND SIZE | INSULATION THICKNESS | ARMOUR O.D. | CABLE WEIGHT | MAX. PULLING TENSION | MIN. BEND RADIUS | AMPACITY (A) |
| 2 | 14 AWG | 14 AWG | 14 AWG | 0.030 in. | 0.440 in. | 105 lbs/Mft | 66 lbs | 6.2 in. | 25 |
| 0.76 mm | 11.2 mm | 156 kg/km | 30 kg | 156 mm | |||||
| 2 | 12 AWG | 12 AWG | 14 AWG | 0.030 in. | 0.485 in. | 138 lbs/Mft | 104 lbs | 6.8 in. | 30 |
| 0.76 mm | 12.3 mm | 206 kg/km | 47 kg | 172 mm | |||||
| 2 | 10 AWG | 10 AWG | 12 AWG | 0.030 in. | 0.533 in. | 186 lbs/Mft | 166 lbs | 7.5 in. | 40 |
| 0.76 mm | 13.5 mm | 277 kg/km | 75 kg | 190 mm | |||||
| 3 | 12 AWG | 12 AWG | 14 AWG | 0.030 in. | 0.522 in. | 165 lbs/Mft | 157 lbs | 7.5 in. | 24 |
| 0.76 mm | 13.3 mm | 245 kg/km | 71 kg | 190 mm | |||||
| 3 | 10 AWG | 10 AWG | 12 AWG | 0.030 in. | 0.591 in. | 232 lbs/Mft | 249 lbs | 8.3 in. | 32 |
| 0.76 mm | 15.0 mm | 346 kg/km | 113 kg | 210 mm |
