| RW90 XLPE Cable 600V Aluminum | ||
| Voltage: | 600V | |

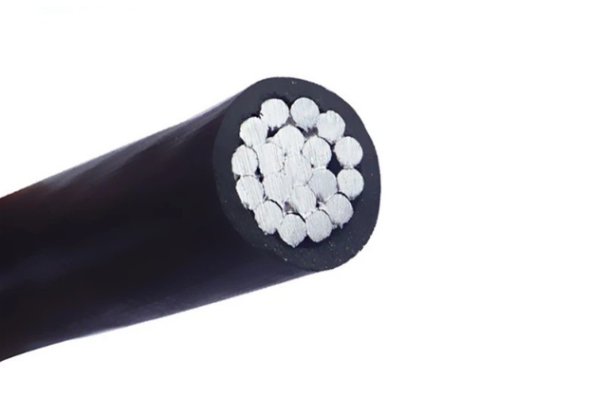

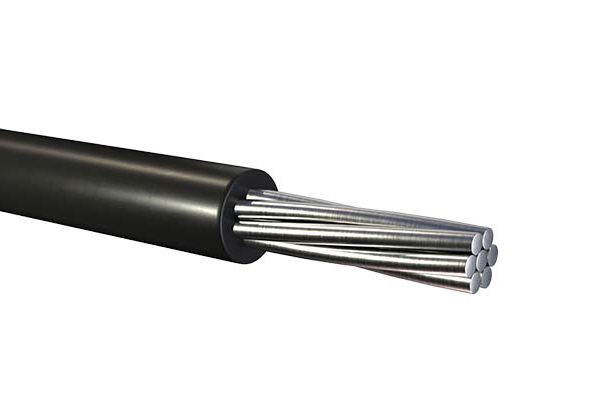

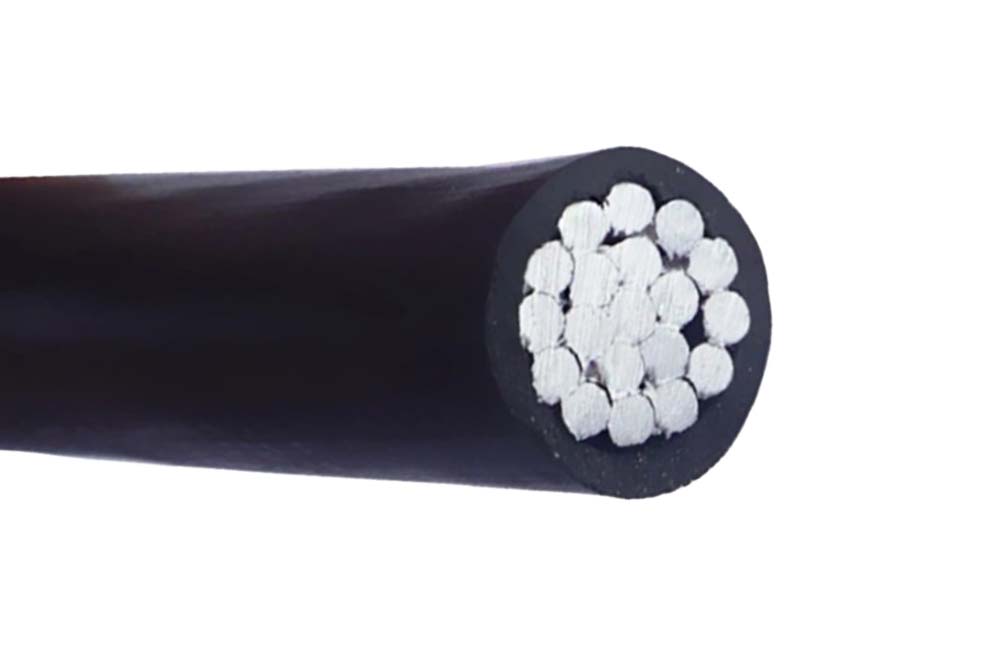

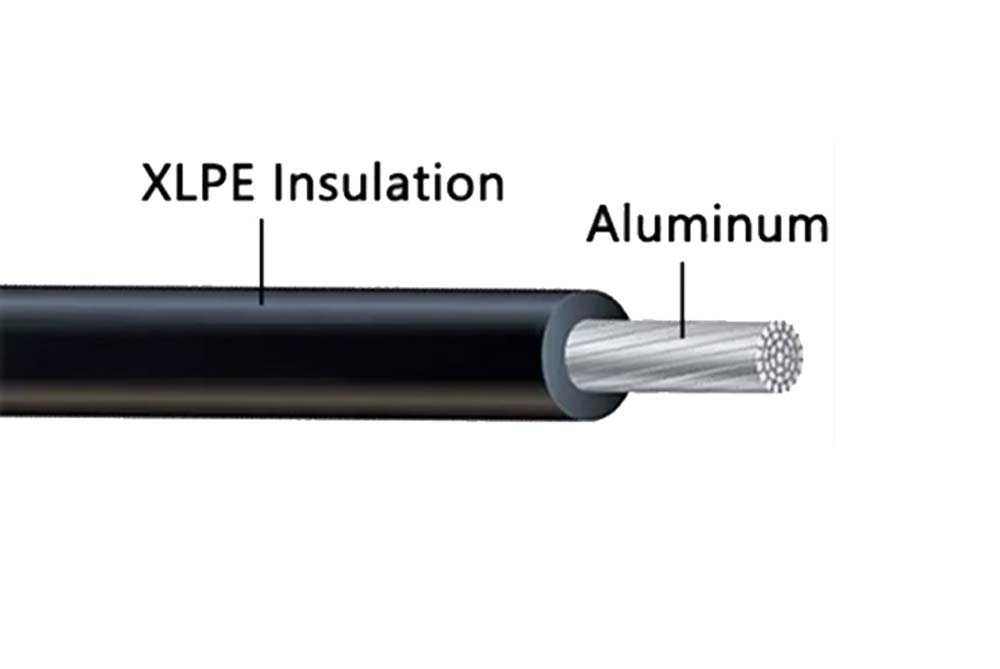

| Structure: | Conductor | Stranded AA-8000 Series Aluminum Alloy (ACM) |
| Insulation | Cross-linked Polyethylene (XLPE) | |

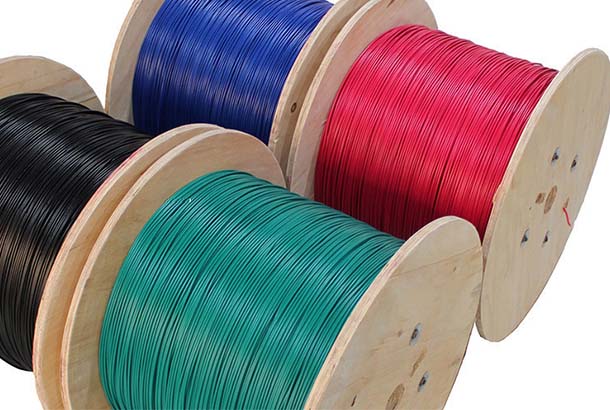

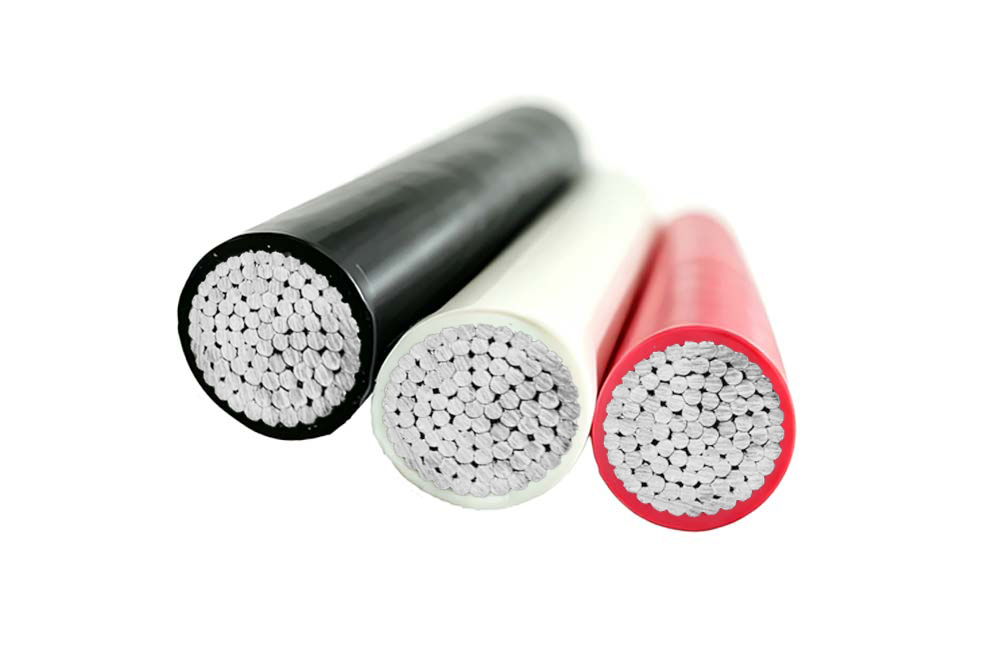

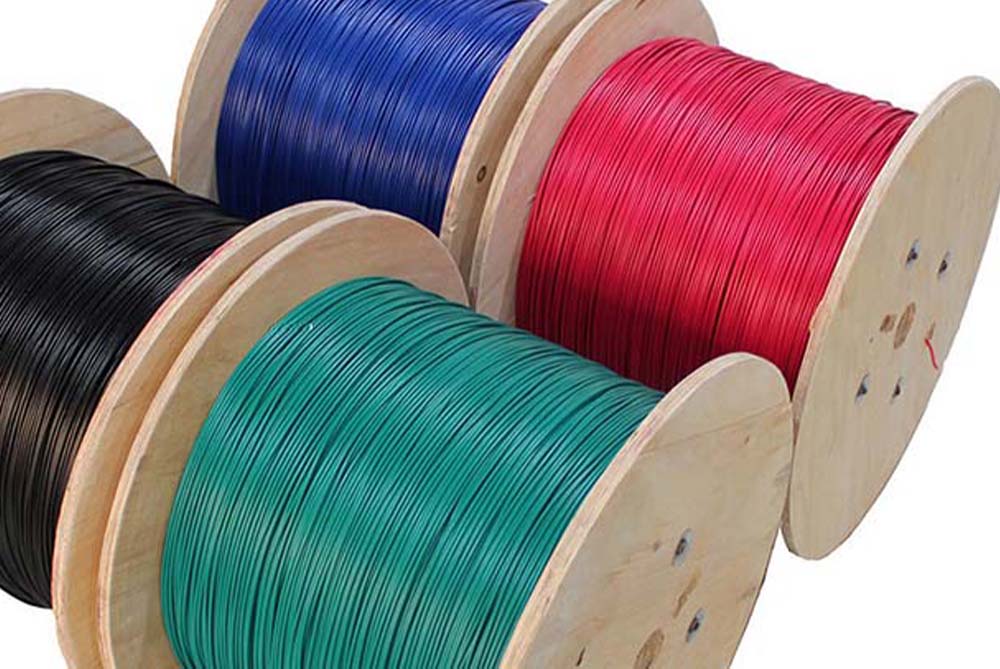

| Colour Code | Standard colours are available in black, red, blue, white and green. | |
Aluminum RW90 is for open wiring used in raceways (except cabletroughs and ventilated fexible cableways) in dry or wet locations. For open wiring exposed to the weather. Minimum recommended installation temperature minus 40°C (with suitable handling procedures). Maximum conductor temperature 90°C.
Stranded AA-8000 Series Aluminum Alloy (ACM)
Cross-linked Polyethylene (XLPE)
CSA C22.2 No. 38
-40℃ - 90℃
600V
Insulation in colors according to the manufacturing standard.
| Conductor | Insulation Thickness | Nominal O.D. | Approx. Weight | ALLOWABLE AMPACITY (AMPS) 30℃ AMBIENT - OPEN AIR* | ALLOWABLE AMPACITY (AMPS) 30℃ AMBIENT - CABLE IN CONDUIT* | ||||||||
| Size (AWG or kcmil) | # of Strands | inches | mm | inches | mm | lbs/Mft | kg/km | 60℃ | 75℃ | 90℃ | 60℃ | 75℃ | 90℃ |
| 6 | 7 | 0.045 | 1.14 | 0.259 | 6.58 | 37 | 55 | 65 | 75 | 85 | 40 | 50 | 55 |
| 4 | 7 | 0.045 | 1.14 | 0.303 | 7.7 | 55 | 82 | 85 | 100 | 115 | 55 | 65 | 75 |
| 2 | 7 | 0.045 | 1.14 | 0.358 | 9.09 | 82 | 122 | 115 | 135 | 150 | 75 | 90 | 100 |
| 1 | 8 | 0.055 | 1.4 | 0.409 | 10.39 | 104 | 155 | 130 | 155 | 175 | 85 | 100 | 115 |
| 1/0 | 10 | 0.055 | 1.4 | 0.446 | 11.33 | 128 | 190 | 150 | 180 | 205 | 100 | 120 | 135 |
| 2/0 | 12 | 0.055 | 1.4 | 0.486 | 12.34 | 157 | 234 | 175 | 210 | 235 | 115 | 135 | 150 |
| 3/0 | 16 | 0.055 | 1.4 | 0.533 | 13.54 | 193 | 287 | 200 | 240 | 270 | 130 | 155 | 175 |
| 4/0 | 19 | 0.055 | 1.4 | 0.585 | 14.86 | 239 | 356 | 235 | 280 | 315 | 150 | 180 | 205 |
| 250 | 22 | 0.065 | 1.65 | 0.65 | 16.51 | 286 | 426 | 265 | 315 | 355 | 170 | 205 | 230 |
| 300 | 35 | 0.065 | 1.65 | 0.703 | 17.86 | 339 | 504 | 295 | 350 | 395 | 195 | 230 | 260 |
| 350 | 35 | 0.065 | 1.65 | 0.749 | 19.03 | 397 | 582 | 330 | 395 | 445 | 210 | 250 | 280 |
| 400 | 35 | 0.065 | 1.65 | 0.792 | 20.12 | 442 | 658 | 355 | 425 | 480 | 225 | 270 | 305 |
| 500 | 35 | 0.065 | 1.65 | 0.869 | 22.07 | 544 | 809 | 405 | 485 | 545 | 260 | 310 | 350 |
| 600 | 58 | 0.08 | 2.03 | 0.976 | 24.79 | 663 | 987 | 455 | 545 | 615 | 285 | 340 | 385 |
| 750 | 58 | 0.08 | 2.03 | 1.071 | 27.2 | 816 | 1214 | 520 | 620 | 700 | 320 | 385 | 435 |
| 1000 | 58 | 0.08 | 2.03 | 1.223 | 31.06 | 1070 | 1592 | 630 | 750 | 845 | 375 | 445 | 500 |
