| THHN / THWN-2 Copper Electric Wire | ||
| Voltage: | 600V | |

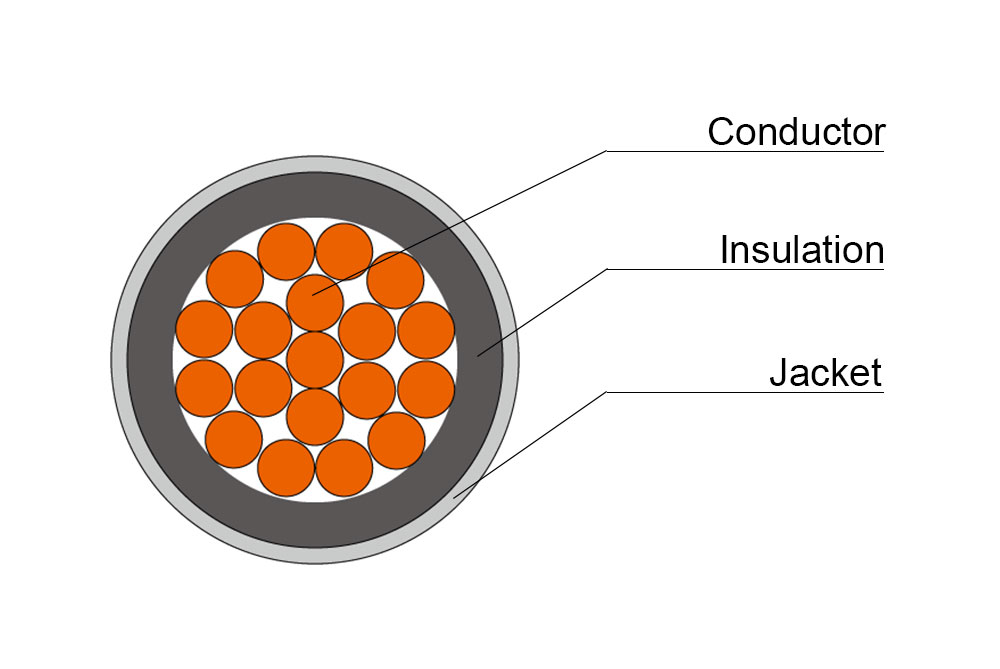

| Structure: | Conductor | Copper |
| Insulation | PVC | |
| Armour | No | |
| Jacket | Nylon | |
Low voltage electrical energy distribution; for use in electrical wiring of buildings, feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive sites or sites contaminated with oil, grease, gasoline, and other chemical substances.
They are suitable for installation in ducts, pipes, boards, and cable trays according to RETIE article 20.3 literal J, from 12 AWG gauge and larger.
Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.
Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.
Soft copper conductor, concentric stranded, Class B.
Polyvinyl chloride (PVC), flame retardant (FR), resistant to heat, abrasion and humidity, resistant to sunlight (SR) in black, free of hazardous substances (RoHS).
External cover in polyamide (nylon), resistant to gasoline and oils (GR II).
ASTM B 3； ASTM B 8； NTC 1332； NTC 307； NTC 359； UL 83
90°C dry and wet places.
600V
Insulation in colors according to the manufacturing standard.
Current capacity for 90°C conductor temperature, 30°C ambient temperature. No more than three current-carrying conductors in a conduit or raceway.
| Size (AWG or kcmi) |
Cross section mm² |
Cond. make-up n*wire Ø | Outer Ø app. mm | Cop. weight kg/km |
Weight app. kg/km |
| 14 | 2.08 | 19*0.38 | 3 | 20.7 | 25 |
| 12 | 3.32 | 19*0.48 | 3.4 | 33 | 37 |
| 10 | 5.26 | 19*06 | 4.3 | 51.6 | 60 |
| 8 | 8.35 | 19*075 | 5.5 | 80.6 | 95 |
| 6 | 13.39 | 19*0.96 | 6.6 | 125 | 143 |
| 4 | 21.14 | 19*1.19 | 8.4 | 201 | 229 |
| 3 | 26.65 | 19*1.336 | 9.1 | 253 | 282 |
| 2 | 33.61 | 19*1.5 | 10 | 317 | 349 |
| 1 | 42.38 | 19*1.686 | 11.4 | 399 | 449 |
| 1/0 | 53.47 | 19*1.89 | 12.4 | 500 | 557 |
| 2/0 | 67.4 | 19*2.126 | 13.7 | 631 | 691 |
| 3/0 | 84.97 | 19*2.387 | 15 | 792 | 861 |
| 4/0 | 107.17 | 19*2.68 | 16.5 | 996 | 1069 |
| 250 | 127 | 37*2.088 | 17.6 | 1178 | 1277 |
| 300 | 152 | 37*2.286 | 19 | 1410 | 1515 |
| 350 | 178 | 37*2.47 | 20.2 | 1645 | 1753 |
| 400 | 203 | 37*2.7 | 21.4 | 1902 | 1998 |
| 500 | 254 | 37*2.95 | 23.73 | 2345 | 2466 |
| 600 | 304 | 61*2.52 | 26 | 2920 | 3000 |
| 750 | 380 | 61*2.82 | 28.6 | 3658 | 3713 |
| 1000 | 507 | 61*3.25 | 32.4 | 4858 | 4870 |
