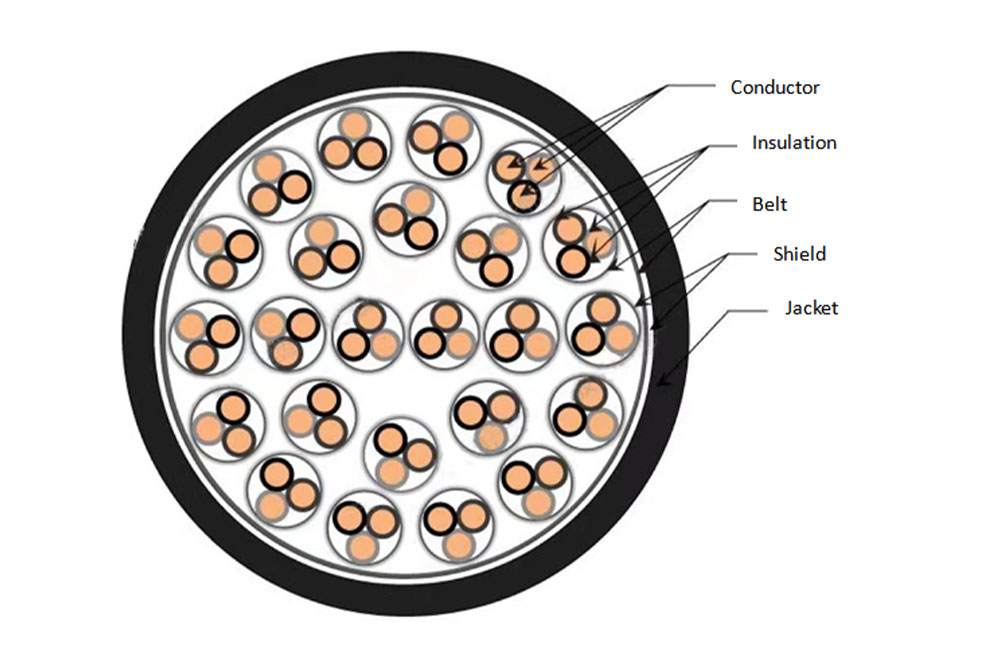

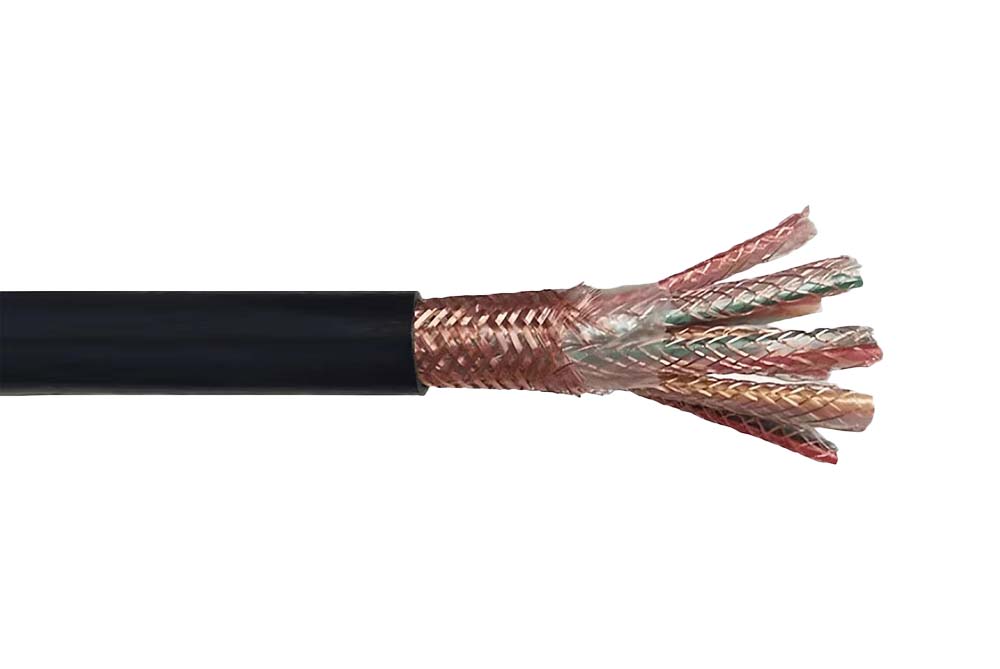

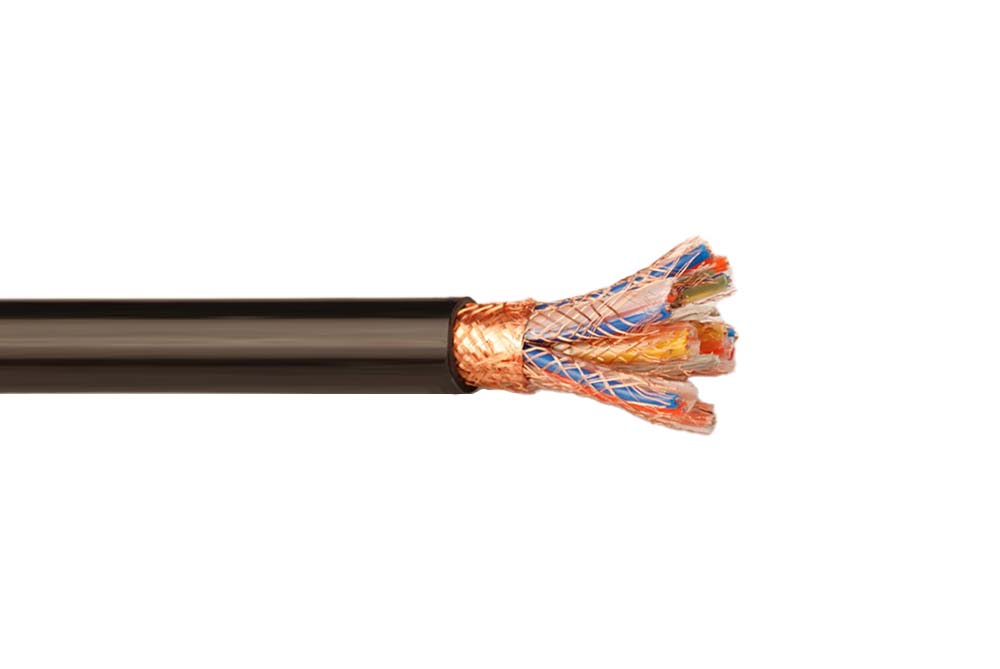

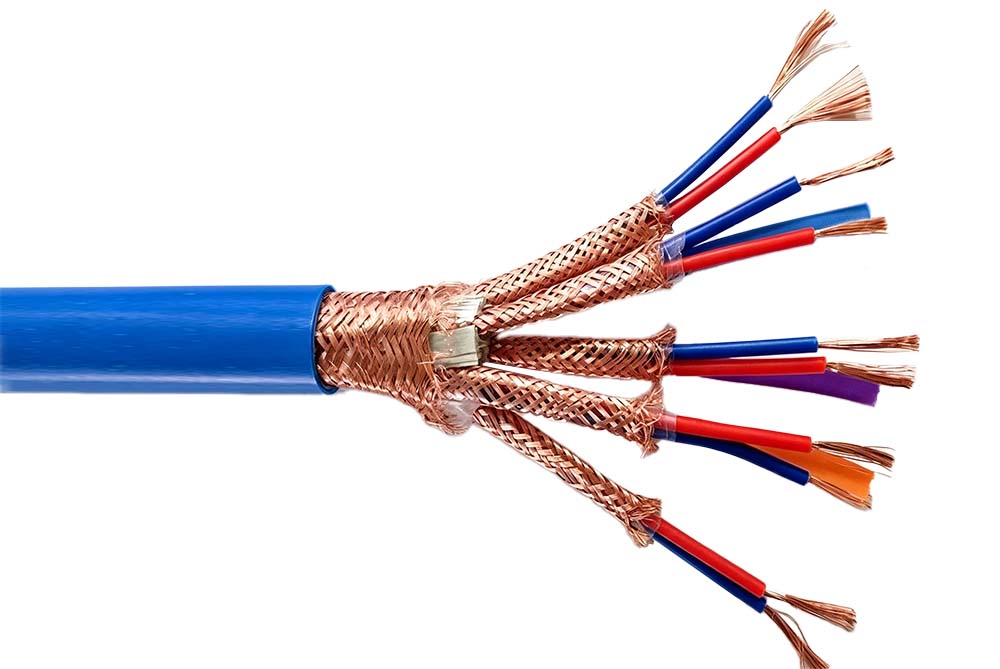

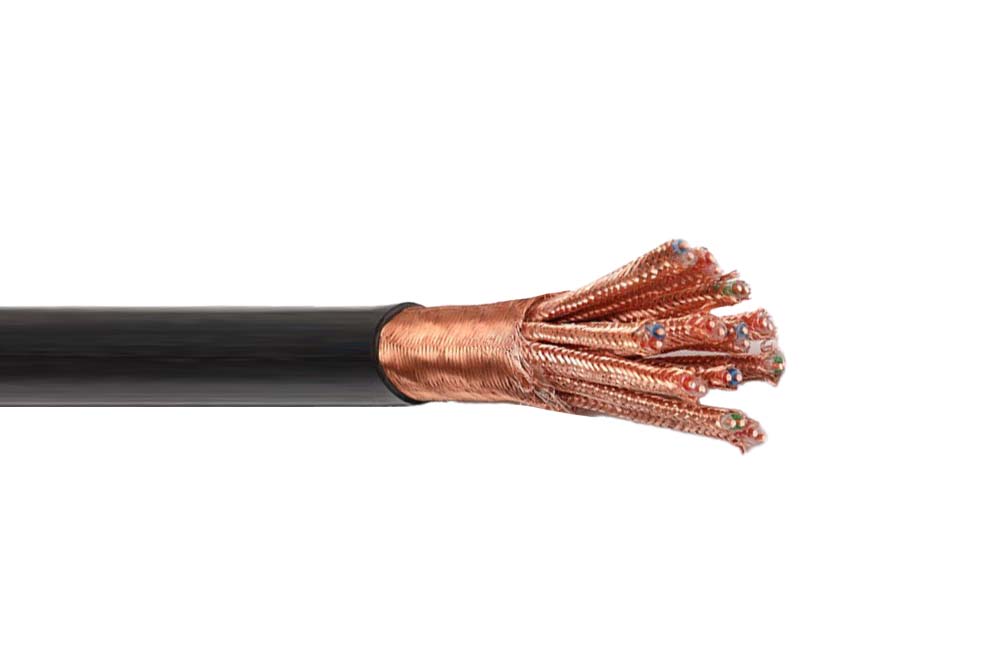

| DJYPVP | ||
| Voltage: | 300/500V | |
| Structure: | Conductor | Copper |
| Insulation | PVC | |
| Jacket | PVC | |
| Shield | Multi-layer shielding | |
This product is suitable for signal transmission of electronic computer systems, monitoring loops, and automated control systems in lines with AC 50Hz and rated voltage 0.3/0.5kV, as well as connecting wires for testing instruments and meters.
It can be widely used in computer systems or automation devices for detection and control in power generation, metallurgy, petroleum, chemical industry, textile and other departments, as well as general industrial computers.
Cables for computers and instruments have low dielectric loss, strong signal transmission capabilities, and can reliably transmit weak analog signals.
The cable is shielded with copper wire and has good anti-interference performance
Raw materials come from a wide range of sources
TICW/06-2009 Computer and Instrument Cables
Rated voltage：The power frequency AC rated voltage is 0.3/0.5kV, and the maximum voltage of the AC system should not exceed 0.6kV.
Cable conductor allows the highest working temperature 70 ℃ for a long time. ;During a short circuit, the maximum temperature of the cable conductor shall not exceed 160°C and the duration shall not exceed 5s.
The ambient temperature of the cable should not be lower than -10 ° C.
The laying temperature of the cable should not be lower than 0℃.
Bending radius
It is recommended that the maximum bending radius does not exceed 12D
Group color identificationand regulations on insulation color separation within wire groups: 2 core cabling components: blue, white; 3 core cabling components: blue, white,red; 4 core cabling components: Blue, white, green, red
Note: Other identification methods can also be adopted after agreement between the supply and demand parties.
Between group identification:Identification of cable components using numerical identification. Numbers apply Arabic numerals printed on the surface of each insulated core. The color of the numbers should be the same and clearly contrast with the insulation color and the writing should be clear. The numerical designation shall be repeated at equal intervals along the insulated core. Two adjacent sets of numerical signs should be reversed. When the identifier consists of a single number ,then you should put a dash below the number. If the identifier consists of two numbers, then they should be arranged up and down and a dash should be placed under the following numbers. The distance between two adjacent sets of digital signs should not be greater than 50mm.
Cable jackets are usually black, but may be in colors other than black by manufacturer or buyer agreement to suit the environment in which they are used.
2.Cables shall be continuously identified with the manufacturer's name, product model and rated voltage, The logo of factory’s name can be a duplicate of the manufacturer or repetitive identification.
3.The distance between the end of one complete sign and the beginning of the next sign The sheath of the cable should not exceed 500mm The cable insulation or tape should not exceed 200mm; The printed mark should be erasure resistant and not easy to fall off, and the printed content on the surface should be clear and recognizable
Note: The logo on the surface of the sheath can also add other logo contents according to the habits of the user or manufacturer.
Delivery according to length agreed upon by both parties.
If there is no agreement between the two parties, the allowed delivery length should not be less than 100 meters.
Short sections of cables with a length of not less than 20 meters are allowed to be delivered, and their quantity does not exceed 10% of the total length of delivery.
The measurement error of delivery length should not exceed ±0.5%.
1、Cable tray delivered in compliance with JB/T8137-1999 requirements
2、The end of cable should be reliably sealed, The cable ends extending out of the reel should be protected by a protective cover. The extension length is less than 300mm
3、The weight of the short cable does not exceed 80kg, can be wrapped in a circle
4、Coiled or coiled cables should be wound neatly and properly packed
5、The package of cable should be attached with a label indicating: manufacturer name, model, specification, rated voltage, length, quality, manufacturing date, standard number or certification mark, correct rotation direction of the cable drum, etc.
Transportation generally takes the form of vehicles or ships. During transportation, the cables must be firmly fixed to avoid damage to the cables or disks due to collision or overturning.
Finished cables should be stored in an environment with a temperature between 0 and 40 degrees Celsius and a humidity below 85%. They should not be exposed to direct sunlight or rain. They should be properly ventilated to keep the environment dry. Cables should be stored and used in accordance with the above regulations and can generally be used for more than 25 years.
Necessary information of ordering such as cable model, specification, length, packaging method, date of delivery, etc. should be correctly indicated.
For example
Model of cable：DJYPVP
specification：3×2×1.0
length：10000m
packaging method： Iron plate packaging
date of delivery：Validity period days
Mode of transport: by train, car, ship or plane
Place of delivery:demander’s warehouse or site、demander’s own delivery
Note: The mode of transport and place of delivery shall be specified by the Demander
During installation, the ambient temperature should not be lower than 0°C. If the ambient temperature measured by the thermometer is lower than 0°C, the cable should be preheated before installation. The bending radius during cable laying should be strictly controlled. The bending radius of the cable should not exceed 12D.In order to avoid mechanical damage inside the cable.
| Rated Voltage | Pair | No.of CORES | specification | conductor structure | outer diameter of conductor(mm) | insulation thickness (mm) |
Packing strap (mm) | Split screen (mm) | Strap (mm) | Overall screen specifications (mm) |
Outer Sheath thickness （mm) |
reference outer diameter (mm) |
reference weight (kg/km) |
DC RESISTANCE (OHM/KM) | Minimum insulation resistance at operating temperature(OHM-KM) | Test voltage(KV/min) | Maximum working capacitance(pF/m) | Maximum capacitance unbalance(Pf/250m) | Maximum L/R ratio | Maximum allowable pulling force of conductor(N) |
| 300/500V | 2 | 2 | 2×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 25×0.05 | 0.15 | 1.1 | 10.9 | 157.9 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 140 |
| 2 | 2 | 2×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 30×0.05 | 0.15 | 1.2 | 12.6 | 202.5 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 210 | |
| 2 | 2 | 2×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.15 | 1.2 | 12.9 | 219.6 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 280 | |
| 2 | 2 | 2×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14.3 | 276.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 420 | |
| 2 | 2 | 2×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 40×0.05 | 0.2 | 1.3 | 16.6 | 373.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 700 | |
| 3 | 2 | 3×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 30×0.05 | 0.15 | 1.1 | 11.5 | 191.9 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 210 | |
| 3 | 2 | 3×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.15 | 1.2 | 13.3 | 246.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 315 | |
| 3 | 2 | 3×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14 | 286.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 3 | 2 | 3×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.1 | 340.1 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 630 | |
| 3 | 2 | 3×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.6 | 463.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 1050 | |
| 4 | 2 | 4×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 30×0.05 | 0.15 | 1.2 | 12.8 | 239.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 280 | |
| 4 | 2 | 4×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14.8 | 316.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 4 | 2 | 4×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.2 | 347.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 560 | |
| 4 | 2 | 4×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 16.7 | 424.4 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 840 | |
| 4 | 2 | 4×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.3 | 572.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 1400 | |
| 5 | 2 | 5×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14.2 | 299.4 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 350 | |
| 5 | 2 | 5×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 16.1 | 374.6 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 525 | |
| 5 | 2 | 5×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 16.8 | 421.3 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 700 | |
| 5 | 2 | 5×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.2 | 506 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1050 | |
| 5 | 2 | 5×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 21.3 | 696.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 1750 | |
| 6 | 2 | 6×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.3 | 345.9 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 6 | 2 | 6×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.7 | 444.3 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 630 | |
| 6 | 2 | 6×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.2 | 490.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 6 | 2 | 6×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 19.8 | 591.4 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1260 | |
| 6 | 2 | 6×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 817.6 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2100 | |
| 7 | 2 | 7×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.3 | 369 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 490 | |
| 7 | 2 | 7×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.7 | 473.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 735 | |
| 7 | 2 | 7×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.2 | 524.5 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 980 | |
| 7 | 2 | 7×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 19.8 | 635.1 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1470 | |
| 7 | 2 | 7×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 880.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2450 | |
| 8 | 2 | 8×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 16.7 | 421.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 560 | |
| 8 | 2 | 8×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.1 | 530.2 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 8 | 2 | 8×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 19.7 | 588.9 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1120 | |
| 8 | 2 | 8×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 21.6 | 723.4 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1680 | |
| 8 | 2 | 8×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.5 | 1030.7 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2800 | |
| 9 | 2 | 9×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.3 | 472.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 630 | |
| 9 | 2 | 9×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 21.1 | 604 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 945 | |
| 9 | 2 | 9×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 21.8 | 670.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 9 | 2 | 9×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.4 | 24 | 840.2 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1890 | |
| 9 | 2 | 9×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.1 | 1158.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 3150 | |
| 10 | 2 | 10×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 19.5 | 520.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 700 | |
| 10 | 2 | 10×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.5 | 667.2 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1050 | |
| 10 | 2 | 10×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 740.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1400 | |
| 10 | 2 | 10×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.8 | 941.1 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2100 | |
| 10 | 2 | 10×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.2 | 1297.6 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 3500 | |
| 12 | 2 | 12×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 20.1 | 572.3 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 12 | 2 | 12×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 731.5 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 12 | 2 | 12×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 24 | 816.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 12 | 2 | 12×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.6 | 1036.2 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2520 | |
| 12 | 2 | 12×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.2 | 1432.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 4200 | |
| 14 | 2 | 14×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 21.3 | 654.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 980 | |
| 14 | 2 | 14×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.4 | 24.6 | 853.7 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1470 | |
| 14 | 2 | 14×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.6 | 964.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1960 | |
| 14 | 2 | 14×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28 | 1172.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2940 | |
| 14 | 2 | 14×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32.9 | 1627.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 4900 | |
| 16 | 2 | 16×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.4 | 728.5 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1120 | |
| 16 | 2 | 16×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.2 | 964.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 16 | 2 | 16×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27 | 1076.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2240 | |
| 16 | 2 | 16×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 29.7 | 1325 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3360 | |
| 16 | 2 | 16×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 35.2 | 1881.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 5600 | |
| 18 | 2 | 18×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.6 | 803.8 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 18 | 2 | 18×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.5 | 1062.2 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1890 | |
| 18 | 2 | 18×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.4 | 1187.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 18 | 2 | 18×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.3 | 1465.2 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3780 | |
| 18 | 2 | 18×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37.1 | 2082.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 6300 | |
| 19 | 2 | 19×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.6 | 834.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1330 | |
| 19 | 2 | 19×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.5 | 1102 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1995 | |
| 19 | 2 | 19×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.4 | 1233.9 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2660 | |
| 19 | 2 | 19×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.3 | 1523.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3990 | |
| 19 | 2 | 19×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37.1 | 2167.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 6650 | |
| 20 | 2 | 20×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 24.6 | 910.8 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1400 | |
| 20 | 2 | 20×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 28.5 | 1166.3 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2100 | |
| 20 | 2 | 20×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 29.4 | 1304.9 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2800 | |
| 20 | 2 | 20×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32.1 | 1594 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 4200 | |
| 20 | 2 | 20×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 38.3 | 2287.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 7000 | |
| 22 | 2 | 22×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.7 | 1000.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1540 | |
| 22 | 2 | 22×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31 | 1281.9 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2310 | |
| 22 | 2 | 22×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32 | 1434.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3080 | |
| 22 | 2 | 22×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 35.5 | 1810.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 4620 | |
| 22 | 2 | 22×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 42 | 2535.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 7700 | |
| 24 | 2 | 24×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.9 | 1077.8 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 24 | 2 | 24×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32.4 | 1381.6 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 24 | 2 | 24×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 33.6 | 1562.5 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3360 | |
| 24 | 2 | 24×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37.1 | 1953.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5040 | |
| 24 | 2 | 24×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 43.9 | 2738.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 8400 | |
| 26 | 2 | 26×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.5 | 1146.8 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1820 | |
| 26 | 2 | 26×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 33.1 | 1471.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2730 | |
| 26 | 2 | 26×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 34.4 | 1666.6 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3640 | |
| 26 | 2 | 26×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 38 | 2085.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5460 | |
| 26 | 2 | 26×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 44.9 | 2926.1 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 9100 | |
| 28 | 2 | 28×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 29.7 | 1235.2 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1960 | |
| 28 | 2 | 28×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 34.5 | 1584.5 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2940 | |
| 28 | 2 | 28×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 35.9 | 1818.8 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3920 | |
| 28 | 2 | 28×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 39.6 | 2244 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5880 | |
| 28 | 2 | 28×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 46.8 | 3147.7 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 9800 | |
| 32 | 2 | 32×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.8 | 1372.2 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2240 | |
| 32 | 2 | 32×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 36.1 | 1805.5 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3360 | |
| 32 | 2 | 32×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37.3 | 2025.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 4480 | |
| 32 | 2 | 32×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 41.1 | 2503.4 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 6720 | |
| 32 | 2 | 32×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 48.6 | 3520.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 11200 | |
| 34 | 2 | 34×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32 | 1450 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2380 | |
| 34 | 2 | 34×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 37.7 | 1925.3 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3570 | |
| 34 | 2 | 34×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 38.9 | 2158.8 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 4760 | |
| 34 | 2 | 34×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 42.9 | 2667.3 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 7140 | |
| 34 | 2 | 34×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.1 | 50.8 | 3750 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 11900 | |
| 36 | 2 | 36×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32 | 1510.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 36 | 2 | 36×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 37.7 | 2005 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3780 | |
| 36 | 2 | 36×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 38.9 | 2251 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 5040 | |
| 36 | 2 | 36×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 42.9 | 2784.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 7560 | |
| 36 | 2 | 36×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.1 | 50.8 | 3920.7 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 12600 | |
| 38 | 2 | 38×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 33.4 | 1604.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2660 | |
| 38 | 2 | 38×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 39.1 | 2107.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3990 | |
| 38 | 2 | 38×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 40.4 | 2368 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 5320 | |
| 38 | 2 | 38×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 44.5 | 2929.1 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 7980 | |
| 38 | 2 | 38×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.1 | 52.7 | 4125.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 13300 | |
| 40 | 2 | 40×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 36.1 | 1704.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2800 | |
| 40 | 2 | 40×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 42.3 | 2240.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 4200 | |
| 40 | 2 | 40×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 43.7 | 2514.8 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 5600 | |
| 40 | 2 | 40×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 48.2 | 3109.2 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 8400 | |
| 40 | 2 | 40×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.1 | 57.2 | 4376.8 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 14000 | |
| 42 | 2 | 42×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 36.1 | 1765.3 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2940 | |
| 42 | 2 | 42×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 42.3 | 2320.1 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 4410 | |
| 42 | 2 | 42×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 43.9 | 2627.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 5880 | |
| 42 | 2 | 42×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 48.4 | 3249.3 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 8820 | |
| 42 | 2 | 42×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.2 | 57.4 | 4574.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 14700 | |
| 44 | 2 | 44×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 36.4 | 1868.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 3080 | |
| 44 | 2 | 44×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 42.5 | 2419.7 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 4620 | |
| 44 | 2 | 44×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 43.9 | 2720 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 6160 | |
| 44 | 2 | 44×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 48.4 | 3366.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 9240 | |
| 44 | 2 | 44×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.2 | 57.4 | 4745.1 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 15400 | |
| 46 | 2 | 46×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37 | 1938.9 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 3220 | |
| 46 | 2 | 46×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 43.2 | 2511.3 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 4830 | |
| 46 | 2 | 46×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 44.7 | 2825.8 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 6440 | |
| 46 | 2 | 46×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 49.2 | 3497.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 9660 | |
| 46 | 2 | 46×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.2 | 58.4 | 4934.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 16100 | |
| 48 | 2 | 48×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37 | 1999.5 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 3360 | |
| 48 | 2 | 48×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 43.2 | 2591 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 5040 | |
| 48 | 2 | 48×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 44.7 | 2918.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 6720 | |
| 48 | 2 | 48×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 49.2 | 3615.1 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 10080 | |
| 48 | 2 | 48×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.2 | 58.4 | 5104.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 16800 | |
| 50 | 2 | 50×2×0.5 | 1/0.80 | 0.8 | 0.5 | 10×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 38.2 | 2094.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 3500 | |
| 50 | 2 | 50×2×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 44.4 | 2691.1 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 5250 | |
| 50 | 2 | 50×2×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 46.1 | 3052.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 7000 | |
| 50 | 2 | 50×2×1.5 | 1/1.38 | 1.38 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 2.1 | 50.8 | 3780.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 10500 | |
| 50 | 2 | 50×2×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2.3 | 60.2 | 5333.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 17500 | |
| 2 | 3 | 2×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 30×0.05 | 0.15 | 1.1 | 11.9 | 185.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 210 | |
| 2 | 3 | 2×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 13.9 | 252.3 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 315 | |
| 2 | 3 | 2×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14.5 | 280.3 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 2 | 3 | 2×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.6 | 333 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 630 | |
| 2 | 3 | 2×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 18.3 | 459.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 1050 | |
| 3 | 3 | 3×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 30×0.05 | 0.15 | 1.2 | 12.8 | 233.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 315 | |
| 3 | 3 | 3×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 14.7 | 308.6 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 473 | |
| 3 | 3 | 3×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.3 | 345.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 630 | |
| 3 | 3 | 3×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 16.8 | 425 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 945 | |
| 3 | 3 | 3×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.4 | 580.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 1575 | |
| 4 | 3 | 4×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14.3 | 301 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 4 | 3 | 4×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 16.1 | 376.9 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 630 | |
| 4 | 3 | 4×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17 | 432.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 4 | 3 | 4×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.3 | 522.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1260 | |
| 4 | 3 | 4×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 21.5 | 732.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2100 | |
| 5 | 3 | 5×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.5 | 355.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 525 | |
| 5 | 3 | 5×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.8 | 457.2 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 788 | |
| 5 | 3 | 5×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.5 | 515.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1050 | |
| 5 | 3 | 5×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 20 | 626.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1575 | |
| 5 | 3 | 5×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.5 | 881.5 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2625 | |
| 6 | 3 | 6×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.1 | 422.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 630 | |
| 6 | 3 | 6×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.3 | 532.2 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 945 | |
| 6 | 3 | 6×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 20.2 | 602.9 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 6 | 3 | 6×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22 | 745 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1890 | |
| 6 | 3 | 6×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.1 | 1079.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 3150 | |
| 7 | 3 | 7×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.1 | 451.8 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 735 | |
| 7 | 3 | 7×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.3 | 570.7 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1103 | |
| 7 | 3 | 7×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 20.2 | 649.3 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1470 | |
| 7 | 3 | 7×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22 | 805.4 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2205 | |
| 7 | 3 | 7×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.1 | 1169.1 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 3675 | |
| 8 | 3 | 8×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.4 | 505.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 8 | 3 | 8×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 21.1 | 650.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 8 | 3 | 8×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22 | 739.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 8 | 3 | 8×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 24.3 | 945.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2520 | |
| 8 | 3 | 8×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 28.5 | 1330.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 4200 | |
| 9 | 3 | 9×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 20.3 | 575.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 945 | |
| 9 | 3 | 9×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.1 | 729.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1418 | |
| 9 | 3 | 9×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 24.6 | 869.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1890 | |
| 9 | 3 | 9×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.7 | 1061.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2835 | |
| 9 | 3 | 9×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.4 | 1494.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 4725 | |
| 10 | 3 | 10×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 21.7 | 635.8 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1050 | |
| 10 | 3 | 10×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.1 | 846.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1575 | |
| 10 | 3 | 10×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.2 | 959.9 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2100 | |
| 10 | 3 | 10×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.5 | 1174.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3150 | |
| 10 | 3 | 10×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 33.8 | 1673.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 5250 | |
| 12 | 3 | 12×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.4 | 702 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 12 | 3 | 12×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.9 | 932.3 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1890 | |
| 12 | 3 | 12×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27 | 1060.6 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 12 | 3 | 12×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 29.6 | 1317.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3780 | |
| 12 | 3 | 12×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 35.2 | 1903.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 6300 | |
| 14 | 3 | 14×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.5 | 791.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1470 | |
| 14 | 3 | 14×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.2 | 1051.9 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2205 | |
| 14 | 3 | 14×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.5 | 1201.9 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2940 | |
| 14 | 3 | 14×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.2 | 1496.2 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 4410 | |
| 14 | 3 | 14×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 37 | 2163.6 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 7350 | |
| 16 | 3 | 16×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.2 | 924.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 16 | 3 | 16×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 28.9 | 1187.9 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 16 | 3 | 16×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.2 | 1357.3 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3360 | |
| 16 | 3 | 16×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 32.9 | 1676 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5040 | |
| 16 | 3 | 16×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 39.3 | 2447 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 8400 | |
| 18 | 3 | 18×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.5 | 1018.5 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1890 | |
| 18 | 3 | 18×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.5 | 1312.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2835 | |
| 18 | 3 | 18×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.9 | 1502.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3780 | |
| 18 | 3 | 18×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 35.2 | 1914.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5670 | |
| 18 | 3 | 18×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 41.5 | 2714.6 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 9450 | |
| 19 | 3 | 19×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 26.5 | 1056.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1995 | |
| 19 | 3 | 19×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.5 | 1363.2 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2993 | |
| 19 | 3 | 19×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.9 | 1562.4 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3990 | |
| 19 | 3 | 19×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 35.2 | 1992.6 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5985 | |
| 19 | 3 | 19×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 41.5 | 2830.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 9975 | |
| 20 | 3 | 20×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.2 | 1104.6 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2100 | |
| 20 | 3 | 20×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.2 | 1424.1 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3150 | |
| 20 | 3 | 20×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 32.9 | 1649.5 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 4200 | |
| 20 | 3 | 20×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 36.1 | 2084.7 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 6300 | |
| 20 | 3 | 20×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.9 | 42.8 | 2984.1 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 10500 | |
| 22 | 3 | 22×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 29.8 | 1228.3 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2310 | |
| 22 | 3 | 22×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 34.3 | 1583.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3465 | |
| 22 | 3 | 22×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 36.2 | 1856.8 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 4620 | |
| 22 | 3 | 22×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 39.6 | 2311.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 6930 | |
| 22 | 3 | 22×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 47 | 3305.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 11550 | |
| 24 | 3 | 24×3×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.1 | 1323.3 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 24 | 3 | 24×3×0.75 | 1/0.97 | 0.97 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.7 | 36.1 | 1749.5 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 3780 | |
| 24 | 3 | 24×3×1.0 | 1/1.13 | 1.13 | 0.6 | 15×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 38 | 2020.8 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 5040 | |
| 24 | 3 | 24×3×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 41.4 | 2496.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 7560 | |
| 24 | 3 | 24×3×2.5 | 1/1.78 | 1.78 | 0.7 | 20×0.05 | 0.12 | 60×0.05 | 0.3 | 2 | 49.1 | 3573.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 12600 | |
| 2 | 4 | 2×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 13.8 | 239.5 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 280 | |
| 2 | 4 | 2×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.8 | 303.1 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 2 | 4 | 2×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 16.6 | 344.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 560 | |
| 2 | 4 | 2×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 18 | 413.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 840 | |
| 2 | 4 | 2×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 21 | 571.4 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 1400 | |
| 3 | 4 | 3×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 35×0.05 | 0.2 | 1.2 | 14.6 | 292.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 420 | |
| 3 | 4 | 3×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 16.9 | 379.9 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 630 | |
| 3 | 4 | 3×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.6 | 426.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 3 | 4 | 3×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.1 | 518.8 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1260 | |
| 3 | 4 | 3×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.3 | 725.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2100 | |
| 4 | 4 | 4×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 40×0.05 | 0.2 | 1.2 | 15.9 | 354.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 560 | |
| 4 | 4 | 4×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 18.5 | 463.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 4 | 4 | 4×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 19.2 | 523.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1120 | |
| 4 | 4 | 4×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 21.1 | 650.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 1680 | |
| 4 | 4 | 4×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 24.9 | 943.7 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 2800 | |
| 5 | 4 | 5×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 45×0.05 | 0.2 | 1.3 | 17.6 | 429.9 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 700 | |
| 5 | 4 | 5×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 55×0.05 | 0.2 | 1.3 | 20.3 | 553.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1050 | |
| 5 | 4 | 5×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 21.3 | 636.7 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1400 | |
| 5 | 4 | 5×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 782.4 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2100 | |
| 5 | 4 | 5×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.4 | 1137.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 3500 | |
| 6 | 4 | 6×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.1 | 499.5 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 840 | |
| 6 | 4 | 6×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.3 | 656.4 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 6 | 4 | 6×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 744.3 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 6 | 4 | 6×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.7 | 958.9 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2520 | |
| 6 | 4 | 6×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.1 | 1351 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 4200 | |
| 7 | 4 | 7×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 50×0.05 | 0.2 | 1.3 | 19.1 | 535.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 980 | |
| 7 | 4 | 7×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.3 | 703.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1470 | |
| 7 | 4 | 7×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 23.2 | 802.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 1960 | |
| 7 | 4 | 7×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.7 | 1035 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 2940 | |
| 7 | 4 | 7×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.1 | 1465.3 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 4900 | |
| 8 | 4 | 8×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 55×0.05 | 0.2 | 1.4 | 20.8 | 610.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1120 | |
| 8 | 4 | 8×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 24.5 | 828.7 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 8 | 4 | 8×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.5 | 942.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2240 | |
| 8 | 4 | 8×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27.8 | 1163.5 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3360 | |
| 8 | 4 | 8×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 32.9 | 1667.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 5600 | |
| 9 | 4 | 9×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.2 | 1.4 | 22.9 | 685.1 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1260 | |
| 9 | 4 | 9×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 27 | 930.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 1890 | |
| 9 | 4 | 9×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.1 | 1058.2 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 9 | 4 | 9×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.9 | 1322.5 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 3780 | |
| 9 | 4 | 9×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 36.8 | 1934.2 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 6300 | |
| 10 | 4 | 10×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 24.8 | 795.3 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1400 | |
| 10 | 4 | 10×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 28.8 | 1027.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2100 | |
| 10 | 4 | 10×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 30.2 | 1184 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 2800 | |
| 10 | 4 | 10×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 33 | 1463.5 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 4200 | |
| 10 | 4 | 10×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 39.3 | 2141.9 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 7000 | |
| 12 | 4 | 12×4×0.5 | 1/0.80 | 0.8 | 0.5 | 15×0.05 | 0.12 | 60×0.05 | 0.25 | 1.5 | 25.6 | 876.7 | 36 | 3000 | 1/1 | 115 | 500 | 25 | 1680 | |
| 12 | 4 | 12×4×0.75 | 1/0.97 | 0.97 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 29.9 | 1145.8 | 24.5 | 3000 | 1/1 | 115 | 500 | 25 | 2520 | |
| 12 | 4 | 12×4×1.0 | 1/1.13 | 1.13 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.6 | 31.2 | 1310.1 | 18.1 | 3000 | 1/1 | 115 | 500 | 25 | 3360 | |
| 12 | 4 | 12×4×1.5 | 1/1.38 | 1.38 | 0.6 | 20×0.05 | 0.12 | 60×0.05 | 0.25 | 1.7 | 34.3 | 1642.7 | 12.1 | 3000 | 1/1 | 125 | 500 | 40 | 5040 | |
| 12 | 4 | 12×4×2.5 | 1/1.78 | 1.78 | 0.7 | 25×0.05 | 0.12 | 60×0.05 | 0.3 | 1.8 | 40.6 | 2384.7 | 7.41 | 3000 | 1/1 | 130 | 500 | 65 | 8400 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
Products should be inspected by the manufacturer before they can leave the factory. Each package should be attached with a product quality inspection certificate.
The sampling quantity of each batch shall be at least 1 sample according to the delivery batch, which may also be stipulated by agreement between the supply and demand parties。If the results of the sample inspection items are unqualified, the sample should be doubled to carry out a second test on the unqualified items，if still not qualified, the whole batch of products should be tested one by one.
The appearance of the product should be examined batch by batch under normal vision.
Cable inspection is divided into type test, routine test and sampling test
Including: structural size, insulation physical and mechanical properties, sheath physical and mechanical properties, electrical properties (conductor resistance (20℃)), voltage test, insulation resistance test, working capacitance, capacitor unbalance, shielding inhibition factor, combustion performance, identification, delivery length), combustion performance (if any), identification, delivery length
Including: structure size, insulation physical and mechanical properties, sheath physical and mechanical properties, electrical properties (conductor resistance (20℃)), marking, delivery length.
Including: identification, delivery length
Product performance requirements and test methods according to the standard TICW/06-2009 provisions
1、The purpose of the performance acceptance test is to verify whether all the performance of the contract products meet the requirements
2、The location of the performance acceptance test is the purchaser’s site
3、The performance acceptance test shall be carried out within 6 months after the 168-hour full load trial operation of the product, and the specific test time shall be determined by both parties through negotiation.
4、Installation of measuring points, primary components and local instruments required for performance acceptance test shall be provided by the supplier and cooperated by the demander. The supplier shall also provide the technical cooperation and personnel cooperation required for the test.
5、Content of performance acceptance test
In accordance with supplier quality assurance and test requirements.
6、Criteria for performance acceptance test
In accordance with supplier's quality assurance and test requirements.
7、The performance acceptance test shall be conducted by the demander and participated by the supplier. The test program shall be provided by the demander and determined after discussion with the supplier. The specific test shall be completed by the testing department approved by both parties.
8、 Confirmation of performance acceptance test results
The performance acceptance test report shall be prepared by the testing unit, and the conclusions of the report shall be accepted by both parties. If there is any disagreement between the two parties on the results of the test, the two parties shall settle it through negotiation. If no agreement can be reached, it shall be submitted to the superior departments of both parties for negotiation.
9、When a performance acceptance test is conducted, if a party fails to send personnel to participate in the test after receiving the test notice from the other party, it shall be deemed to have agreed to the acceptance test results.
This specification is used for the inspection, supervision and performance acceptance test of the equipment provided by the supplier (including the subcontracted equipment) during the execution of the contract to ensure that the equipment provided by the supplier meets the specified requirements.
Within one month after the Contract takes effect，the supplier shallprovide the demander with supervision, inspection and performance acceptance test standards related to the Contract equipment.
2.1、The Demander has the right to send its inspectors to the workshop of the supplier
and its subcontractors to inspect and supervise the processing and manufacturing of the contract equipment。As representatives of the demander will be sent for this purpose a written notice to the supplier
2.2、If the contract equipment fails to meet the requirements of the technical specifications after inspection and test，the demander may refuse，The supplier replaces the rejected goods or make necessary modifications to meet the requirements of technical specifications，the customer shall not bear the above charges
2.3、The right of the supplier to inspect, test and, if necessary, reject the goods after their arrival at the place of the Demander shall not be restricted on the ground that the goods have been inspected and inspected by or on behalf of the Demander and have passed the inspection prior to their shipment at the place of origin
2.3.1、The participation of Demander's personnel in the factory test, including the countersigning of any test results, shall neither exempt the Supplier from its obligations under the contract nor replace the inspection of the contract equipment by the Demander upon its arrival at the site
2.4、The supplier shall inform the Demander of its schedule 15 days before the start of the plant test，according to this schedule, the Buyer will determine which test items and phases of the Contract equipment to be validated on site and will notify the Supplier within 10 days of receiving the Supplier's schedule for installation, testing and inspection。Then the Demander will send technical personnel to the production site of the Supplier and/or its subcontractors to observe and understand the factory test of the contract equipment and the conditions of its transportation and packaging。If it is found that the quality of any goods does not meet the standards stipulated in the contract, or the packaging does not meet the requirements, the buyer's representative shall have the right to express his opinion. The Supplier shall seriously consider his opinion and take necessary measures to ensure the quality of the contract equipment to be shipped. The on-site verification and inspection procedures shall be decided by the representatives of both parties through consultation.
2.5、If the Demander does not send a representative to participate in the above test, the supplier shall organize the inspection on its own after receiving the Demander's notice that it will not send personnel to the supplier and/or its subcontractor's factory, or the Demander fails to send personnel to participate in the test on time
2.6、The factory inspection is an important part of quality control。The supplier strictly carries out inspection and test of each production link in the factory。The contract equipment provided by the supplier will issue quality certificates, inspection records and test reports as part of the quality certificate documents at delivery
2.7、The scope of inspection includes the incoming of raw materials and components, the processing, assembly, testing and delivery testing of components.
2.8、The inspection results of the supplier shall meet the requirements. If there is any discrepancy or failure to meet the standard requirements, the supplier shall take measures until the requirements are met and submit an inconsistency report to the demander。The supplier shall inform the demander of any major quality problems in a timely manner
2.9、All costs of factory inspection are included in the total price of the contracted equipment.
3.1、Construction supervisor
3.1.1、In accordance with this contract and the former Ministry of Power, Ministry of Machinery Industry document Electricity Office (1995) 37 "Large power equipment quality supervision of the Interim Provisions" and "large power equipment factory general representative group working regulations", as well as the relevant national provisions.
3.2、Supervision mode
3.2.1、Document witness, site witness and stoppage for inspection, namely R point, W point, H point.
3.2.2、Each time after the completion of the supervision content, the supplier and the supervision representative will perform the signature procedure on the witness form
The supplier shall deliver one copy to the buyer's supervision representative
3.2.3、Point R: The supplier only needs to provide inspection or test records or reports of the item, that is, document witness
3.2.4、Point W: The inspection or test project attended by the representative of the buyer's supervision, that is, the on-site witness.
3.2.5、H point: When the supplier stops to wait for the inspection or test of the buyer's supervision representative, that is, the project is stopped for inspection
3.2.6、After the demander receives the witness notice，The demander shall send a representative to the site of the inspection or test of the supplier in time to witness the site or stop work for inspection，If demander's representative cannot attend on time，the W point is automatically converted to the R point。However, point H agrees to be converted to point R without a written notice from the demander，the supplier will not move to the next process on its own and agree with the demander to change the witness time。If the buyer is still unable to participate on time after the change, the H point will be automatically converted to R point
3.3、Requirements for suppliers to cooperate with supervision
3.3.1、The supplier has the obligation to cooperate with the demander's supervision and provide relevant information in a timely manner without incurring any costs
3.3.2、The supplier shall provide work and life convenience forthe demander's supervision representative
3.3.3、The supplier shall inform the buyer's representative of the equipment supervision project and time before the on-site inspection or stoppage for inspection
3.3.4、The supervision representative of the demander has the right to check (borrow) the technical data related to the contract supervision equipment，If the Demander considers it necessary to make copies for archiving, the Supplier shall provide convenience
3.3.5、After witnessing, the supplier will provide relevant inspection, test records and report information to the demander who is manufacturing representative of supervision.
