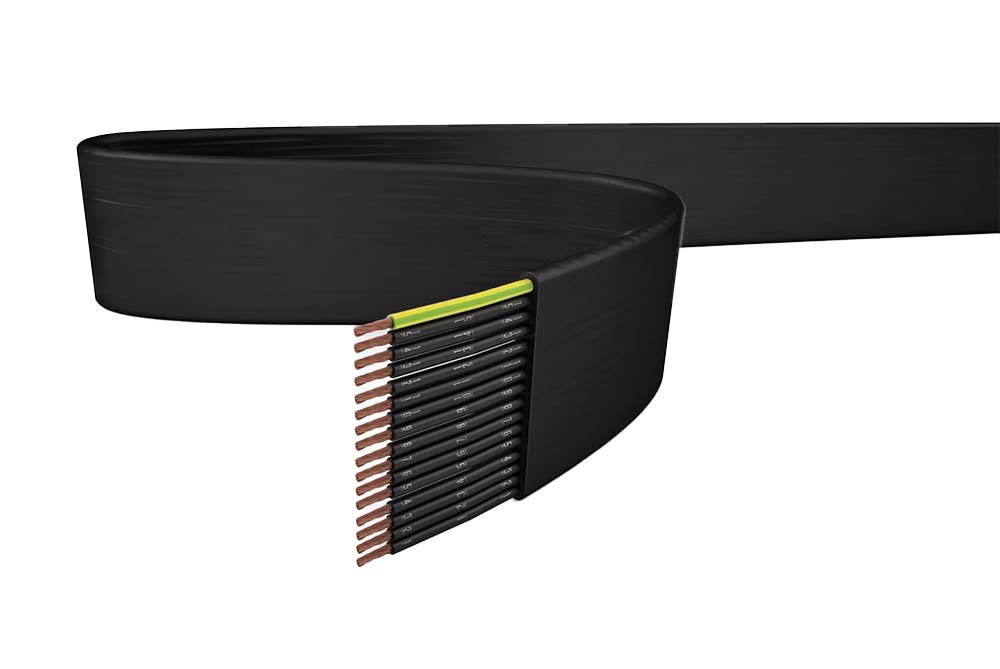

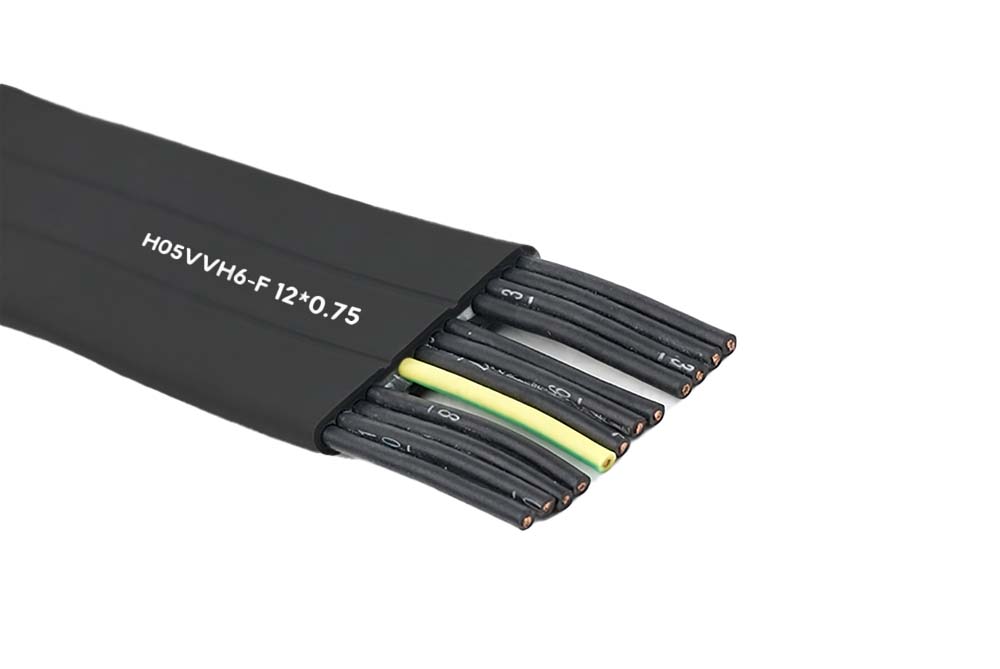

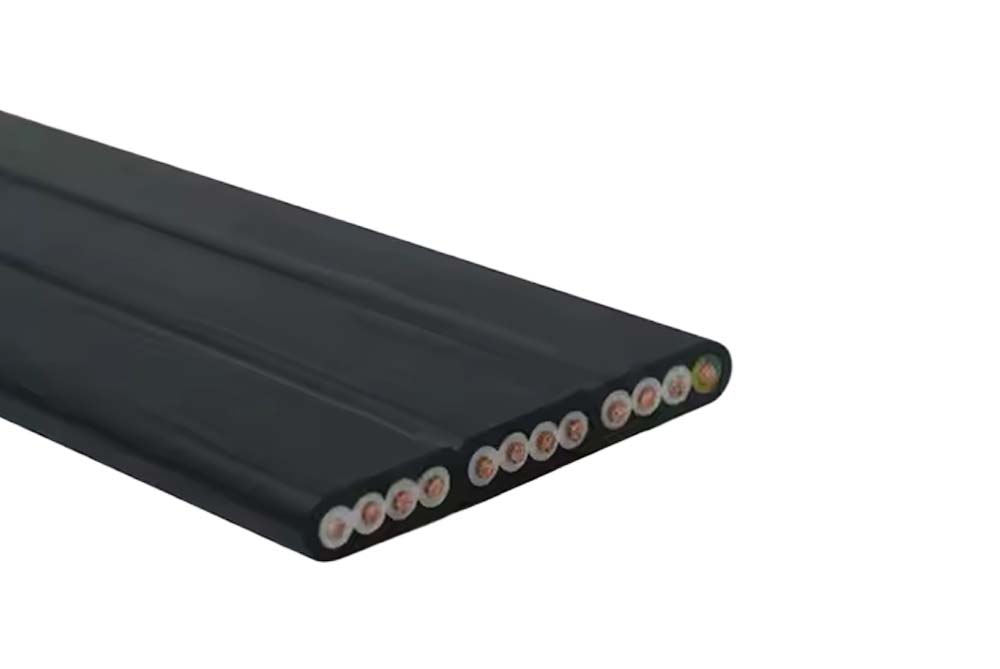

H05VVH6-F Cable
H05VVH6-F Cable
H05VVH6-F Cable
Voltage: 300/500V

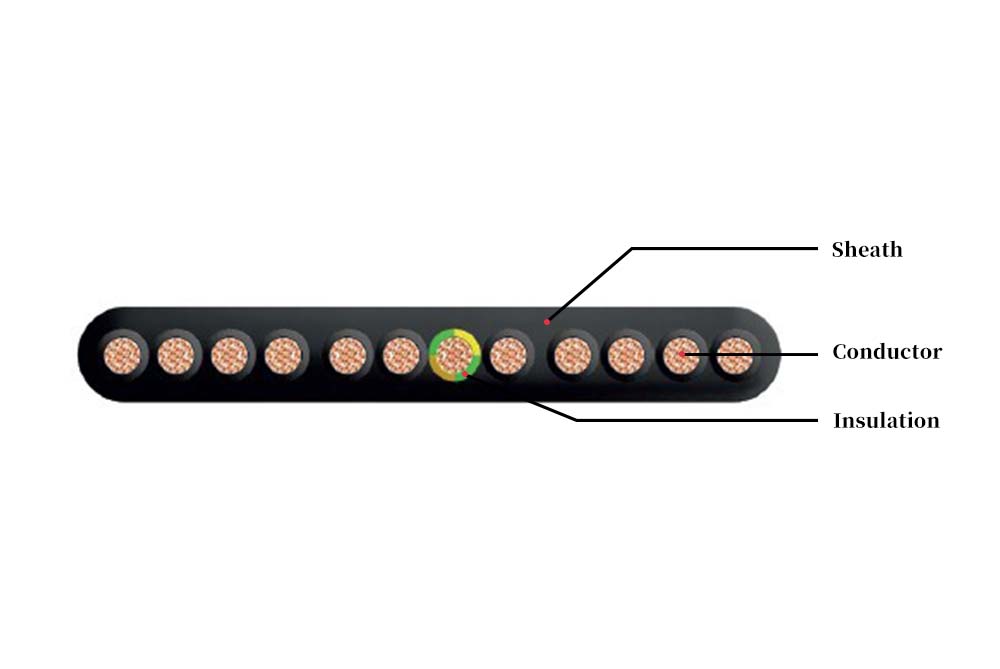

Structure: Conductor Copper
Insulation Rubber
Jacket Rubber
Feature Flexible cable
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

The scope of application

System

This cable is suitable for the power line with AC 50Hz and rated voltage is 300/500V.

Application

It is used for outdoor medium-sized mobile electrical equipment and tools.

Features

 This cable has the characteristics of softness, and has certain weather resistance and certain oil resistance, it also can be used outdoors.

Required Standard

Carried Standard

JB/T 8735-2011, the rubber insulated flexible wires and flexible cables with rated voltage of 450/750V and below.

Additional Standard

Operating characteristics

  Rated Voltage

 The rated voltage is 0.3/0.5kV, and the maximum voltage of the AC system should not exceed 0.6kV.

Operating Temperature

The maximum allowable long-term operating temperature of the cable conductor is 60℃.

Environment Temperature

The minimum environment temperature which the cable can work properly is -10 ℃.

Laying Temperature

The laying temperature of the cable should not be lower than -10℃.

Bending Radius

 Recommended minimum bending radius: The bending radius of the cable should not exceed 10D.

Product Marking

GUOWANG CABLE GROUP

Core of Cable

Color marking 2-core cable: no preference for chromatography; 3-core cable: green/yellow, light blue, brown or light blue, black, brown; 4-core cable: green/yellow, light blue, black, brown or light blue, black, brown, black or brown; 5-core cable: green/yellow, light blue, black, brown, black or brown, or light blue, black, brown, black or brown, black or brown.

Outer Sheath

The outer sheath of the cable is usually black, but a color other than black can also be used in accordance with the manufacturer or buyer's agreement to adapt to the environment. The cable shall have continuous identification of the manufacturer's name, product model and rated voltage, and the manufacturer's name identification may be repeated identification of the manufacturer or trademark; The distance between the end of one complete mark and the beginning of the next mark: it shall not exceed 550mm on the outer sheath of the cable; The cable insulation or belt should not exceed 275mm; The printed logo should be erasable and not easy to fall off, and the printed content on the surface should be clearly recognizable. Note: The logo on the surface of the sheath can also add other content according to the custom of the user or the manufacturer.

Delivery and Tolerance

 Delivery Length

Each loop of cable should be 100m in length, and the length of the cable drum should be greater than 100m. Delivery of any length of cable may be permitted by mutual agreement.

 Error In Length

The measurement error of delivery length is ±0.5%.

Packaging, Transport and Storage

Packaging

Cables in rolls and coils should be neatly wound and properly packed; The cable tray shall comply with the provisions of JB/T8137-1999; The cable ends should be securely sealed, and the cable ends extending out of the disk should be covered with a protective cover, the length of the cable ends extending out of the disk should be less than 300mm. It should be labeled with a content on the package of the cable: manufacturer name, model, specification, rated voltage, length, quality, manufacturing date, standard number or certification mark, the correct rotation direction of the cable tray, etc.

Transport

Transport is generally in the form of vehicles and ships, and the cable must be firmly fixed during transport to avoid bumping or tipping over to cause damage to the cable or drum. Do not lay the cable tray flat; It is strictly forbidden to drop the cable tray containing the cable from a height during transportation.

Storage

The finished cable should be stored in an environment where the temperature is between 5 and 35℃and the humidity is below 80%, so that it is not directly exposed to sunlight or rain, and should be properly ventilated to keep the environment dry.

Ordering Instruction

The model, specification, length, delivery date, packing method and other necessary information of the cable should be correctly marked when ordering.

Installation Notice

 During installation, the operating temperature should not be lower than -10℃. If the ambient temperature measured by the thermometer is lower than 0℃, preheat the cable before preparing for installation. The bending radius of the multi-core cable should not exceed 10D (D is the outer diameter of the cable) to avoid mechanical damage inside the cable.

SPECIFICATION CONDUCTOR STRUCTURE OUTER DIAMETER OF CONDUCTOR
(MM)
BELT
(MM)
INSULATION THICKNESS(MM) SHEATH THICKNESS
(MM)
OUTSIDE DIAMETER
(MM)
WEIGHT
(kg/km)
MAXIMUM DC RESISTANCE AT 20℃ (Ω/km) TESTING VOLATAGE (KV/min) MAXIMUM ALLOWABLE TRACTIVE FORCE    (N)
YZB/YZWB 2×0.75  24/0.20 1.12 8×0.05 0.6 0.8 4.1×6.6 45.5 26  2/5 105
2×1.0  32/0.20 1.29  5×0.05
/8×0.05
0.6 0.9 4.4×7.0 54.8 19.5  2/5 140
2×1.5 30/0.25 1.56 8×0.05 0.8 1 5.4×8.6 80.5 13.3  2/5 210
2×2.5  49/0.25 2 8×0.05 0.9 1.1 6.2×10.2 116 7.98  2/5 350
2×4 56/0.30 2.56 8×0.05 1.0  1.2 7.1×11.8 166.3 4.95  2/5 560
2×6 84/0.30 3.54 10×0.05 1.0  1.3 8.2×13.8 225.4 3.3  2/5 840
3×0.75 24/0.20 1.12 8×0.05 0.6 0.9 4.3×6.8 60.2 26  2/5 158
3×1.0 32/0.20 1.29 8×0.05 0.6 0.9 4.4×7.0 69.4 19.5  2/5 210
3×1.5  30/0.25 1.56 8×0.05 0.8 1.0  5.3×8.6 102.8 13.3  2/5 315
3×2.5 49/0.25 2 8×0.05 0.9 1.1 6.2×10.2 150.1 7.98  2/5 525
3×4 56/0.30 2.56 8×0.05 1.0  1.2 7.1×11.8 218.8 4.95  2/5 840
3×6 84/0.30 3.54 10×0.05 1.0  1.3 8.2×13.8 298.4 3.3  2/5 1260
4×0.75 24/0.20 1.12 8×0.05 0.6 0.9 4.3×6.8 72.0  26  2/5 210
4×1.0 32/0.20 1.29 8×0.05 0.6 0.9 4.4×7.0 84.0  19.5  2/5 280
4×1.5 30/0.25 1.56 5×0.05 0.8 1.0  5.8×9.3 137.4 13.3  2/5 420
4×2.5 49/0.25 2 5×0.05 0.9 1.1 6.6×10.7 198.0  7.98  2/5 700
4×4  56/0.30 2.56 5×0.05 1.0  1.2 7.6×12.5 290.1 4.95  2/5 1120
4×6 84/0.30 3.54 10×0.05 1.0  1.3 9.2×15.5 411.8 3.3  2/5 1680
5×0.75 24/0.20 1.12  5×0.05 0.6 1.0  4.7×7.3 92.3 26  2/5 263
5×1.0 32/0.20 1.29  5×0.05 0.6 1.0  4.9×7.7 108.5 19.5  2/5 350
5×1.5 30/0.25 1.56  5×0.05 0.8 1.1 5.8×9.3 160.8 13.3  2/5 525
5×2.5  49/0.25 2  5×0.05 0.9 1.3 6.8×10.9 238.3 7.98  2/5 875
5×4  56/0.30 2.56  5×0.05 1.0  1.4 7.8×12.7 350.1 4.95  2/5 1400
5×6 84/0.30 3.54 10×0.05 1.0  1.6 9.7×16.0 506.8 3.3  2/5 2100
6×0.75 24/0.20 1.12  5×0.05 0.6 1.0   4.7×7.3 104.7 26  2/5 315
6×1.0 32/0.20 1.29  5×0.05 0.6 1.1 5.1×7.9 127.2 19.5  2/5 420
6×1.5 30/0.25 1.56  5×0.05 0.8 1.2 6.0×9.5 188.2 13.3  2/5 630
6×2.5 49/0.25 2  5×0.05 0.9 1.4 7.0×11.1 278.7 7.98  2/5 1050
6×4 56/0.30 2.56  5×0.05 1.0  1.5  8.1×13.0 413.0  4.95  2/5 1680
6×6  84/0.30 3.54 10×0.05 1.0  1.7  9.9×16.2 591.9 3.3  2/5 2520
YZW 2×4 56/0.30 2.56 8×0.05 1.0  1.2 11.8 241.9 4.95  2/5 560
2×6 84/0.30 3.54 10×0.05 1.0  1.3 13.6 397.9 3.3  2/5 840
3×4 56/0.30 2.56 8×0.05 1.0  1.2 12.6 291.8 4.95  2/5 840
3×6 84/0.30 3.54 10×0.05 1.0  1.3 14.4 452.6 3.3  2/5 1260
4×4  56/0.30 2.56 8×0.05 1.0  1.2 14.0  363.9 4.95  2/5 1120
4×6 84/0.30 3.54 10×0.05 1.0  1.3 16.0  552.5 3.3  2/5 1680
5×4  56/0.30 2.56  8×0.05 1.0  1.4 15.5 444.8 4.95  2/5 1400
5×6 84/0.30 3.54 10×0.05 1.0  1.6 17.8 670.6 3.3  2/5 2100
6×0.75 24/0.20 1.12  8×0.05 0.6 1.0  9.5 142.6 26  2/5 315
6×1.0 32/0.20 1.29 8×0.05 0.6 1.1 10.0  168.3 19.5  2/5 420
6×1.5 30/0.25 1.56  8×0.05 0.8 1.2 12.3 251.8 13.3  2/5 630
6×2.5 49/0.25 2  8×0.05 0.9 1.4 14.8 373.2 7.98  2/5 1050
6×4 56/0.30 2.56  8×0.05 1.0  1.5 17.1 535.6  4.95  2/5 1680
6×6  84/0.30 3.54 10×0.05 1.0  1.7 19.6 798.0  3.3  2/5 2520
3×1.5+1×1.0 30/0.25
32/0.20
1.56
1.29
8×0.05
8×0.05
0.8
0.6
1.1 9 134.1 13.3  2/5 385
3×2.5+1×1.5 49/0.25
30/0.25
2.00
1.56
8×0.05
8×0.05
0.9
0.8
1.2 10.7 195.2 7.98  2/5 630
3×4+1×2.5 56/0.30
49/0.25
 2.56
2.00
8×0.05
8×0.05
1.0
0.9
1.3 12.4 282.8 4.95  2/5 1015
3×6+1×4 84/0.30
56/0.30
3.54
2.56
10×0.05
8×0.05
1.0
1.0
1.4 14.4 458.5 3.3  2/5 1540
