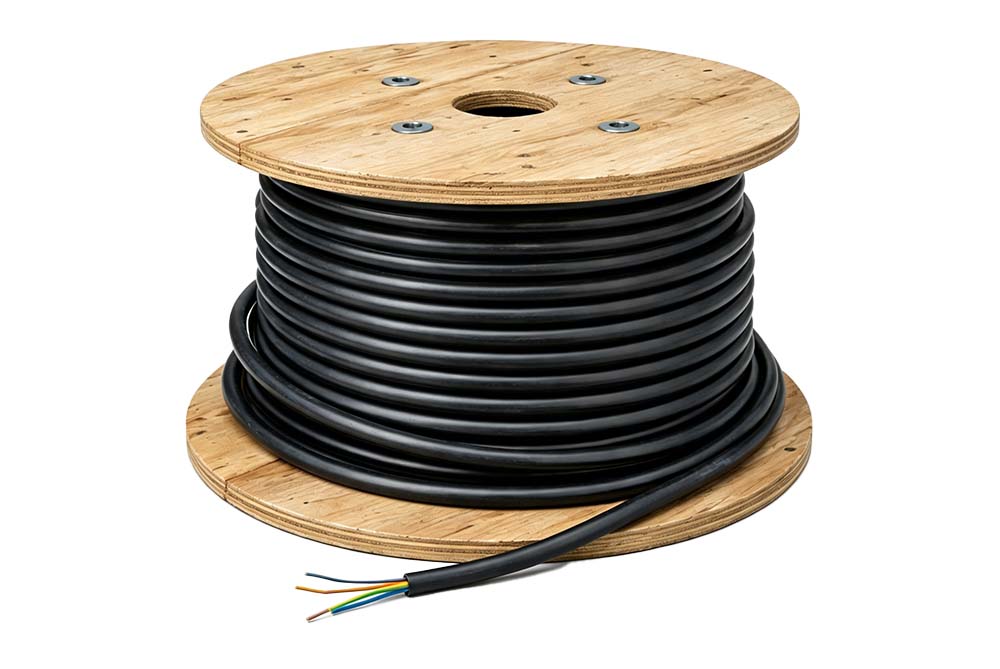

H07RN-F Cable
H07RN-F Cable
H07RN-F Cable
Voltage: 450/750V
Structure: Conductor Class 5 flexible copper conducto
Insulation EPR (Ethylene Propylene Rubber)
Jacket PCP (Polychloroprene)
Feature Flexible cable
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

APPLICATION

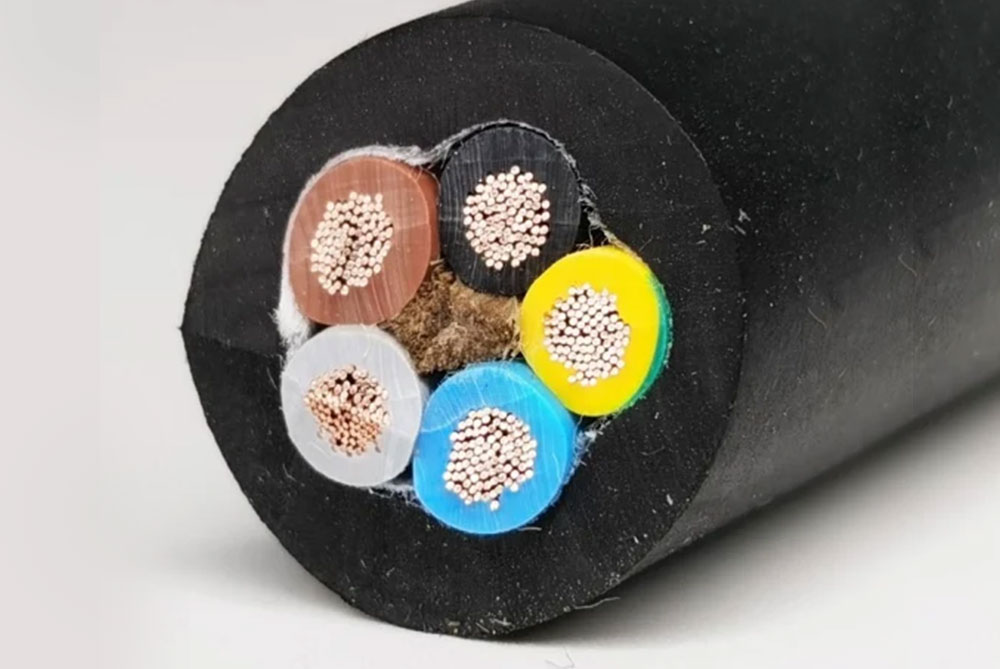

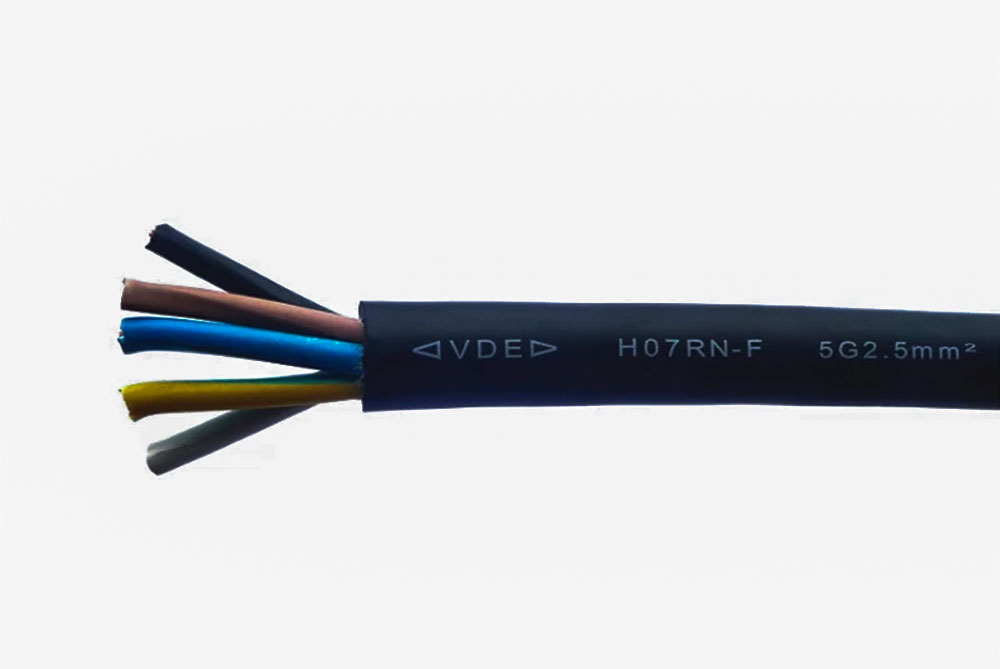

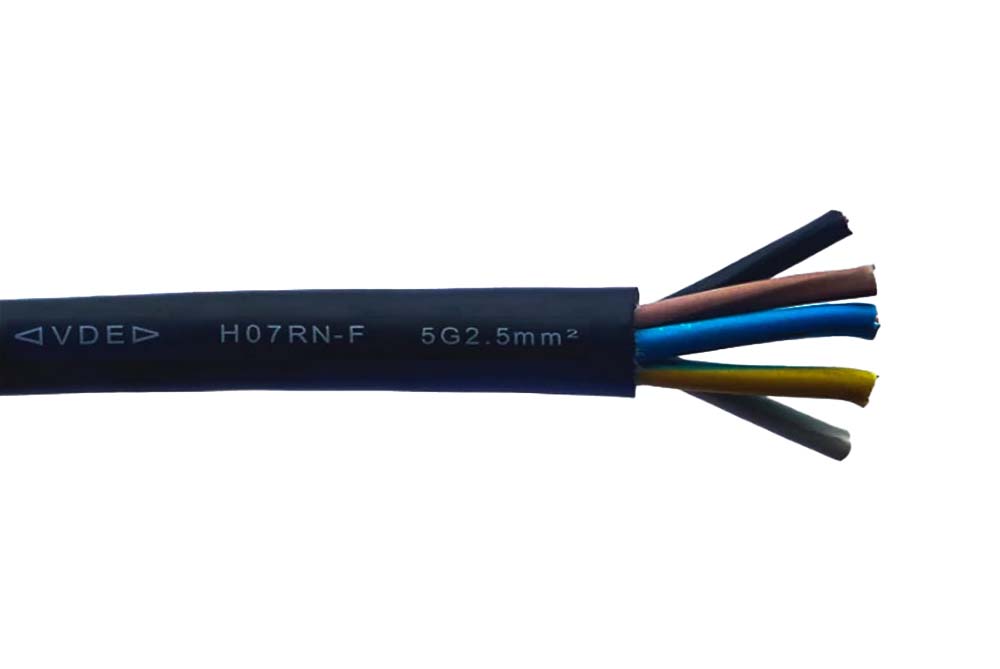

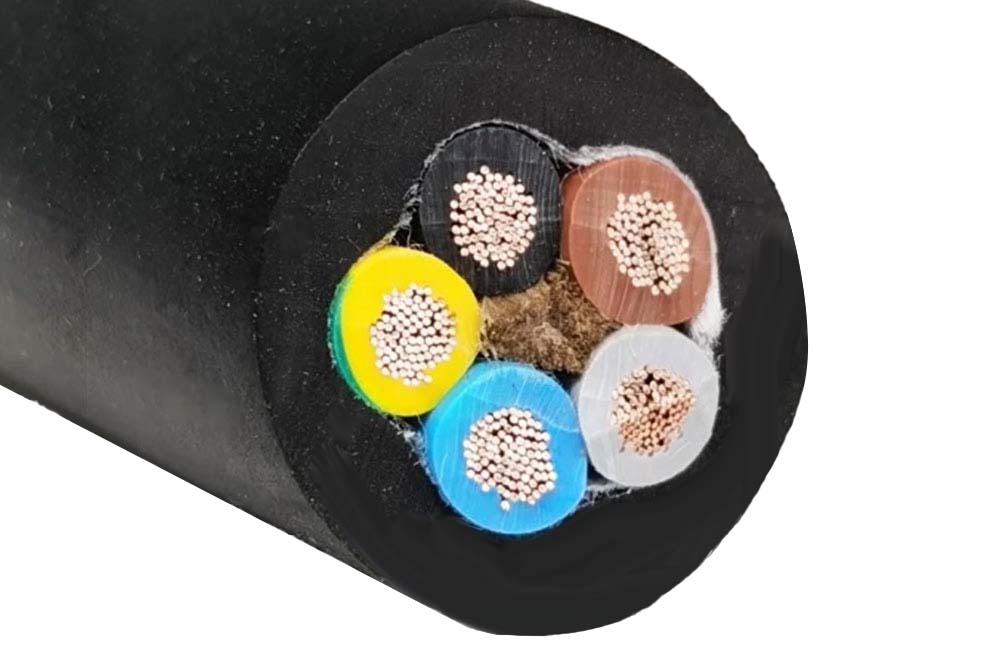

H07RN-F is a heavy-duty rubber flexible trailing cable for power supply designed to provide high flexibility and to withstand chemical, mechanical and thermal stresses. It is suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. As part of Eland Cables' portfolio of rubber flexible cables, the tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial environments. extensively for trailing and flexible supply leads in either single or multicore versions, these H07RN-F rubber cables remain flexible even at sub-zero temperatures. These cables are designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments

CHARACTERISTICS

Voltage Rating Uo/U

450/750V

Temperature Rating Fixed

-30°C to +60°C

Fixed protected installations

+85°C Flexed: -15°C to +60°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 6 x overall diamete

CONSTRUCTION

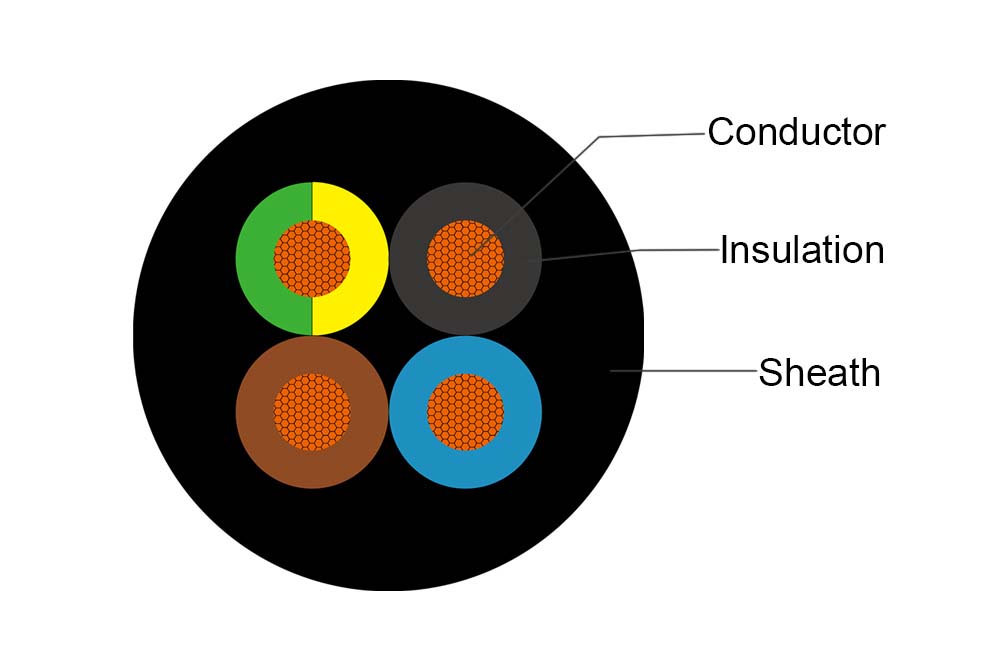

Conductor

Class 5 flexible copper conductor

Insulation

EPR (Ethylene Propylene Rubber)

Sheath

PCP (Polychloroprene)

Core Identification

1 core: Black

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Blue Brown Black Grey

6 core and above: Black with White numbers Green/Yellow

Sheath

Colour Black

STANDARDS

EN 50525-2-21, EN 60228

Flame Retardant according to IEC/EN 60332-1-2

Water Resistant according to AD7

NO. OF CORES CROSS SECTIONAL AREA
mm2
THICKNESS OF INSULATION
mm
OVERALL DIAMETER
mm
WEIGHT
kg/km
1 1 0.8 5.7 50
1 1.5 0.8 5.8 52
1 2.5 0.9 6.5 67
1 4 1 7.4 92
1 6 1 8.1 119
1 10 1.2 9.8 185
1 16 1.2 11.35 258
1 25 1.4 13.3 375
1 35 1.4 14.6 485
1 50 1.6 17.2 669
1 70 1.6 19.35 892
1 95 1.8 22.2 1160
1 120 1.8 24.3 1436
1 150 2 25.9 1748
1 185 2.2 29.7 2142
1 240 2.4 31.5 2698
1 300 2.6 36.5 3348
1 400 2.8 40.4 4293
1 500 3 42.6 5262
1 630 3 47.2 6790
2 1 0.8 8.1 94
2 1.5 0.8 9 120
2 2.5 0.9 10.7 173
2 4 1 12.3 239
2 6 1 13.8 313
2 10 1.2 18.6 563
2 16 1.2 21.7 830
2 25 1.4 25.8 1211
3 1 0.8 8.74 117
3 1.5 0.8 8.74 147
3 2.5 0.9 9.68 123
3 4 1 11.48 297
3 6 1 13.2 390
3 10 1.2 14.78 705
3 16 1.2 19.9 1031
3 25 1.4 23.31 1512
3 35 1.4 27.7 1907
3 50 1.6 30.2 2651
3 70 1.6 35.8 3484
3 95 1.8 40.1 4594
4 1 0.8 9.63 142
4 1.5 0.8 46.4 180
4 2.5 0.9 9.63 260
4 4 1 14.6 336
4 6 1 16.4 449
4 10 1.2 21.8 833
4 16 1.2 25.4 1138
4 25 1.4 30.7 1714
4 35 1.4 33.4 2204
4 50 1.6 39.6 3029
4 70 1.6 44.9 4121
4 95 1.8 51.9 5361
4 120 1.8 55.3 6546
4 150 2 60.8 8095
4 185 2.2 65.7 9652
4 240 2.4 75.7 12614
5 1.5 0.8 11.8 206
5 2.5 0.9 14 297
5 4 1 16.2 422
5 6 1 18.2 567
5 10 1.2 24 1010
5 16 1.2 28.2 1400
5 25 1.4 33.9 2096
5 35 1.4 37.2 2700
5 50 1.6 44 3730
5 70 1.6 48 5033
5 95 1.8 53.2 6271
7 1.5 0.8 15.13 315
7 2.5 0.9 17.6 445
12 1.5 0.8 18.2 493
12 2.5 0.9 21.4 702
19 1.5 0.8 22.1 710
