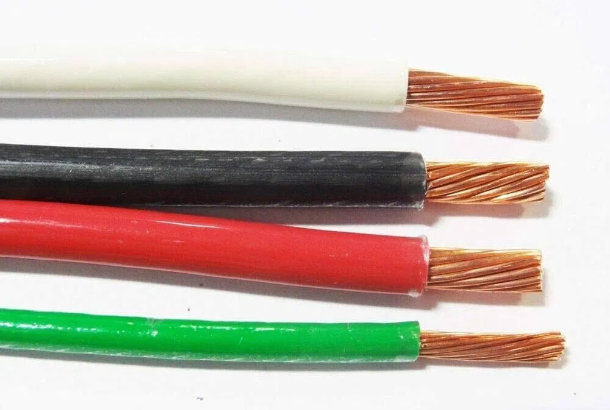

| THHN / THWN-2 Copper Electric Wire | ||
| Voltage: | 600V | |
| Structure: | Conductor | Annealed copper wire |
| Insulation | PVC | |
| Jacket | Tough polyamide (Nylon) | |
| Colour Code | Red, White, Blue, Green, Black, etc | |
THHN/THWN copper wire is insulated with PVC (polyvinyl chloride) and covered with nylon sheath, with a rated voltage of 600V. It is flame retardant and moisture resistant and is mainly used for permanent installations of lighting, heating and electricity.
Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.
Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.
Annealed copper wire
Conforming to requirements of PNS 260 for solid conductor or
PNS 1207 for stranded conductors
PVC conforming to the requirements of PNS 661
Tough polyamide (Nylon)
ASTM B 3； ASTM B 8； NTC 1332； NTC 307； NTC 359； UL 83
90℃ dry / 75℃ wet
600V
Insulation in colors according to the manufacturing standard.
Current capacity for 90°C conductor temperature, 30°C ambient temperature. No more than three current-carrying conductors in a conduit or raceway.
| Conductor | Minimum insulation thickness, mm |
Minimum nylon thickness mm |
Approx. overall diameter mm |
Test voltage, KV a.c. |
Minimum insulation resistance, MΩ-km |
|||||||||
| Nominal sectional area mm2 |
Composition | Outside diameter mm |
||||||||||||
| Number of wires | Wire diameter mm |
|||||||||||||
| Average | At any point |
Spark | Immersion | 20℃ | 60℃ | 75℃ | ||||||||
| THWN | THHN | THWN | THHN | THWN | THHN | |||||||||
| 2 | 1 | 1.6 | 1.6 | 0.4 | 0.34 | 0.1 | 2.6 | 7.5 | 2 | 2 | 130 | 130 | 0.05 | 0.05 |
| 7 | 0.6 | 1.8 | 2.8 | |||||||||||
| 3.5 | 1 | 2 | 2 | 0.4 | 0.34 | 0.1 | 3 | 7.5 | 2 | 2 | 120 | 120 | 0.05 | 0.05 |
| 7 | 0.8 | 2.4 | 3.4 | |||||||||||
| 5.5 | 1 | 2.6 | 2.6 | 0.5 | 0.34 | 0.1 | 3.8 | 7.5 | 2 | 2 | 120 | 120 | 0.05 | 0.05 |
| 7 | 1 | 3 | 4.2 | |||||||||||
| 8 | 1 | 3.2 | 3.2 | 0.8 | 0.68 | 0.13 | 5.06 | 10 | 2 | 2 | 120 | 120 | 0.05 | 0.05 |
| 7 | 1.2 | 3.6 | 5.46 | |||||||||||
| 14 | 7 | 1.6 | 4.8 | 0.8 | 0.68 | 0.13 | 6.66 | 10 | 2 | 2 | 100 | 100 | 0.04 | 0.04 |
| 22 | 7 | 2 | 6 | 1 | 0.85 | 0.15 | 8.3 | 10 | 2 | 2 | 100 | 100 | 0.04 | 0.04 |
| 30 | 7 | 2.3 | 6.9 | 1 | 0.85 | 0.15 | 9.2 | 10 | 2 | 2 | 100 | 100 | 0.04 | 0.04 |
| 38 | 19 | 1.6 | 8 | 1.3 | 1.11 | 0.18 | 10.96 | 12.5 | 2.5 | 2.5 | 100 | 100 | 0.04 | 0.04 |
| 50 | 19 | 1.8 | 9 | 1.3 | 1.11 | 0.18 | 11.96 | 12.5 | 2.5 | 2.5 | 100 | 100 | 0.04 | 0.04 |
| 60 | 19 | 2 | 10 | 1.3 | 1.11 | 0.18 | 12.96 | 12.5 | 2.5 | 2.5 | 80 | 80 | 0.03 | 0.03 |
| 80 | 19 | 2.3 | 11.5 | 1.3 | 1.11 | 0.18 | 14.46 | 12.5 | 2.5 | 2.5 | 80 | 80 | 0.03 | 0.03 |
| 100 | 19 | 2.6 | 13 | 1.3 | 1.11 | 0.18 | 15.96 | 12.5 | 2.5 | 2.5 | 80 | 80 | 0.03 | 0.03 |
| 125 | 37 | 2.1 | 14.7 | 1.6 | 1.36 | 0.18 | 18.26 | 15 | 3 | 3 | 80 | 80 | 0.03 | 0.03 |
| 150 | 37 | 2.3 | 16.1 | 1.6 | 1.36 | 0.2 | 19.7 | 15 | 3 | 3 | 80 | 80 | 0.02 | 0.03 |
| 175 | 37 | 2.47 | 17.3 | 1.6 | 1.36 | 0.2 | 20.9 | 15 | 3 | 3 | 60 | 80 | 0.02 | 0.02 |
| 200 | 37 | 2.6 | 18.2 | 1.6 | 1.36 | 0.2 | 21.8 | 15 | 3 | 3 | 60 | 60 | 0.02 | 0.02 |
| 250 | 37 | 2.95 | 20.65 | 1.6 | 1.36 | 0.2 | 24.25 | 15 | 3 | 3 | 60 | 60 | 0.02 | 0.02 |
| 250 | 61 | 2.3 | 20.7 | 24.3 | ||||||||||
| 300 | 61 | 2.52 | 22.7 | 1.8 | 1.53 | 0.23 | 26.76 | 17.5 | 3 | 3.5 | 60 | 60 | 0.02 | 0.02 |
| 325 | 61 | 2.6 | 23.4 | 1.8 | 1.53 | 0.23 | 27.46 | 17.5 | 3 | 3.5 | 60 | 60 | 0.02 | 0.02 |
| 375 | 61 | 2.82 | 25.3 | 1.8 | 1.53 | 0.23 | 29.36 | 17.5 | 3 | 3.5 | 60 | 60 | 0.02 | 0.02 |
| 400 | 61 | 2.9 | 26.1 | 1.8 | 1.53 | 0.23 | 30.16 | 17.5 | 3.5 | 3.5 | 60 | 60 | 0.02 | 0.02 |
| 500 | 61 | 3.2 | 28.8 | 1.8 | 1.53 | 0.23 | 32.86 | 17.5 | 3.5 | 3.5 | 60 | 60 | 0.02 | 0.02 |
