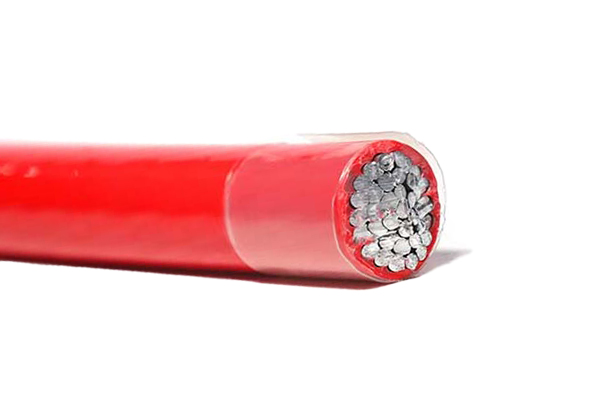

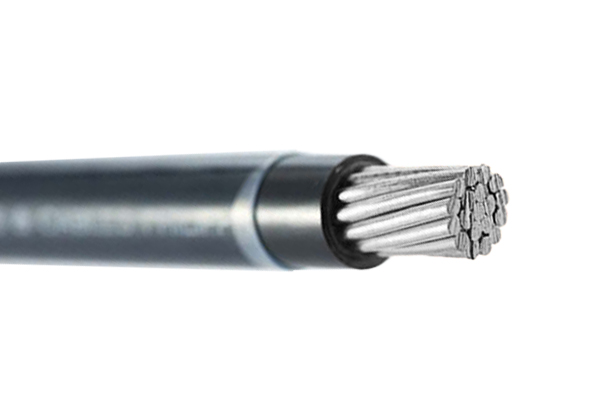

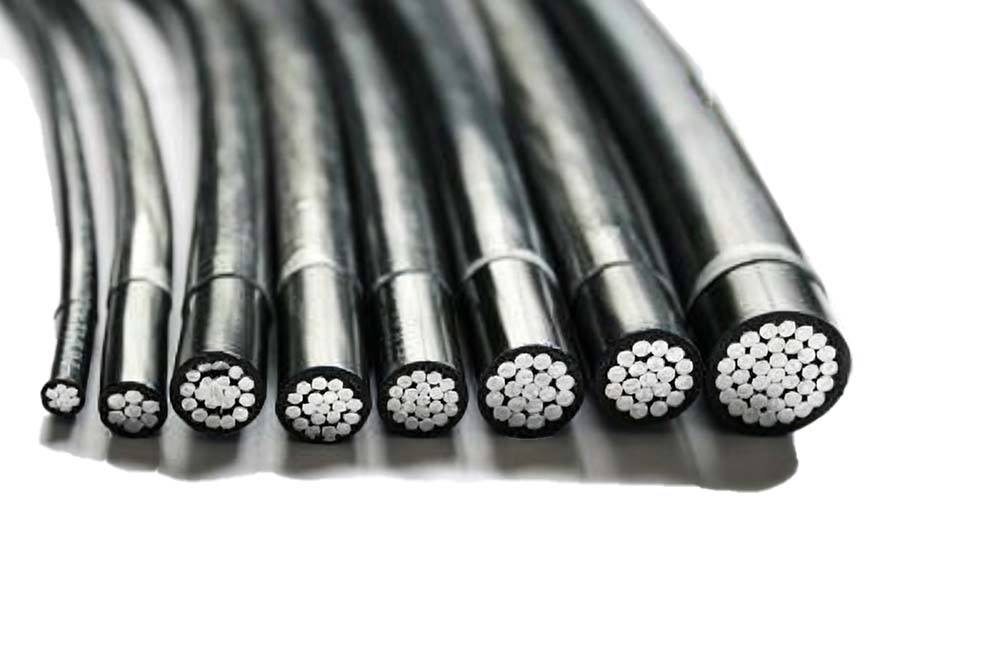

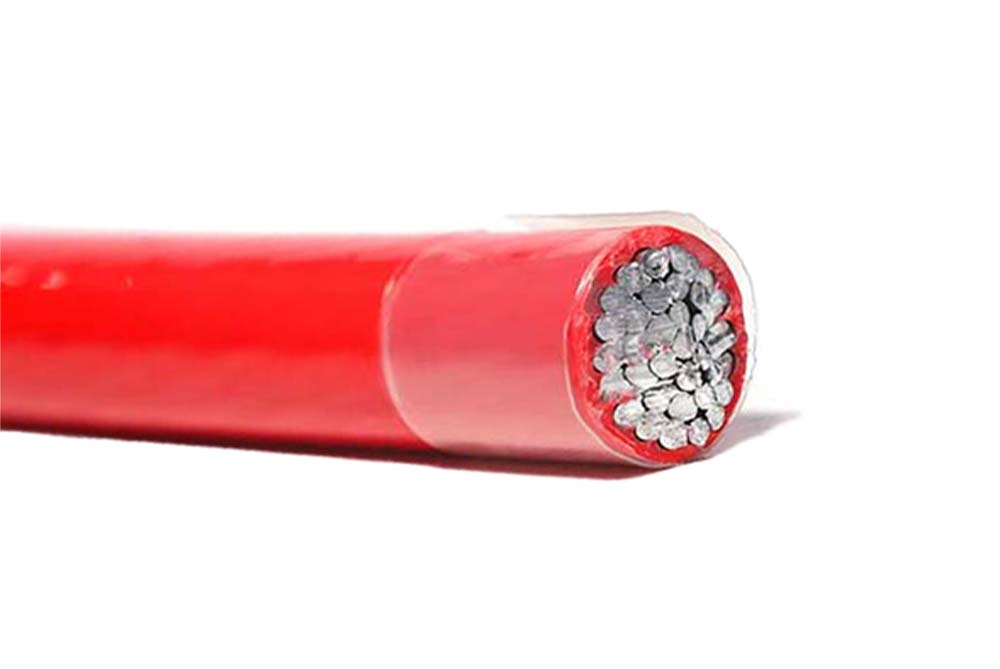

| THHN / THWN-2 Aluminum Electric Wire | ||
| Voltage: | 600V | |

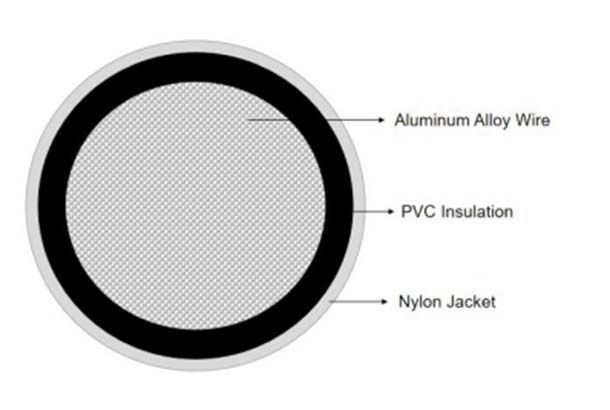

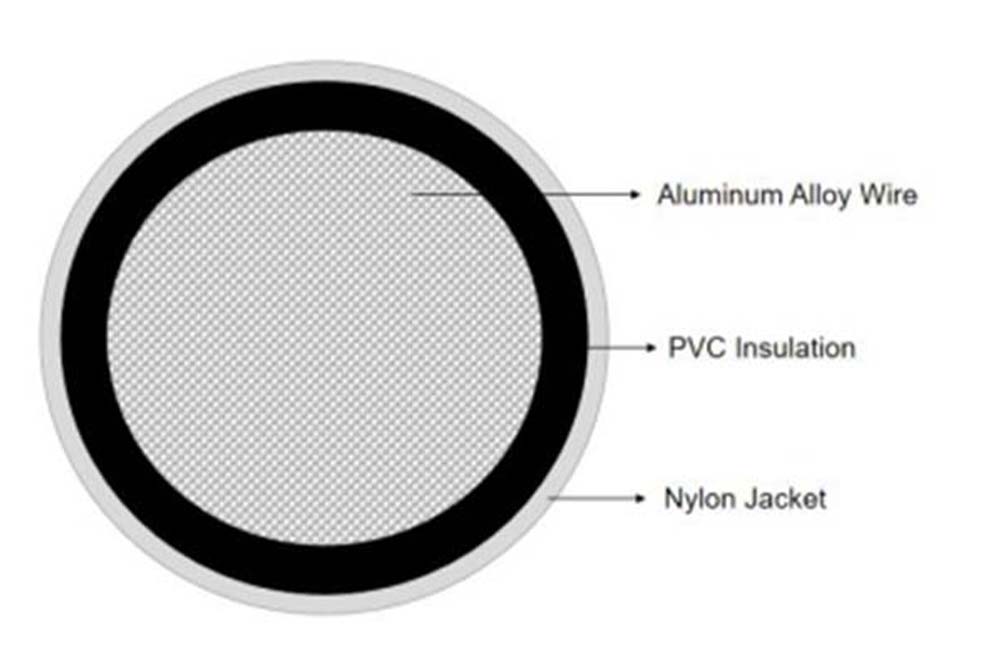

| Structure: | Conductor | Aluminum alloy conductor, Class B(Compact) |
| Insulation | Heat and moisture resistant PVC insulation in various colors | |
| Jacket | External cover in polyamide (nylon) | |

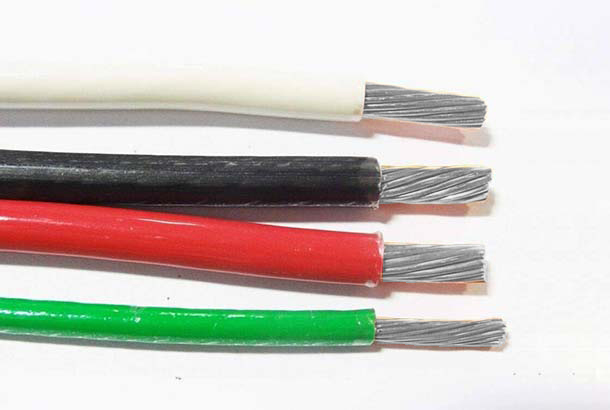

| Colour | Red/Black/White/Blue/Green/Pink etc | |
Low voltage electrical energy distribution; for use in electrical wiring of buildings, feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive sites or sites contaminated with oil, grease, gasoline, and other chemical substances.
They are suitable for installation in ducts, pipes, boards, and cable trays according to RETIE article 20.3 literal J, from 12 AWG gauge and larger.
Aluminum alloy conductor, Class B(Compact).
Heat and moisture resistant PVC insulation in various colors.
External cover in polyamide (nylon).
Red/Black/White/Blue/Green/Pink etc.
ASTM B800； ASTM B 801； UL 83
90°C dry and wet places.
600V
Insulation in colors according to the manufacturing standard.
Current capacity for 90°C conductor temperature, 30°C ambient temperature. No more than three current-carrying conductors in a conduit or raceway.

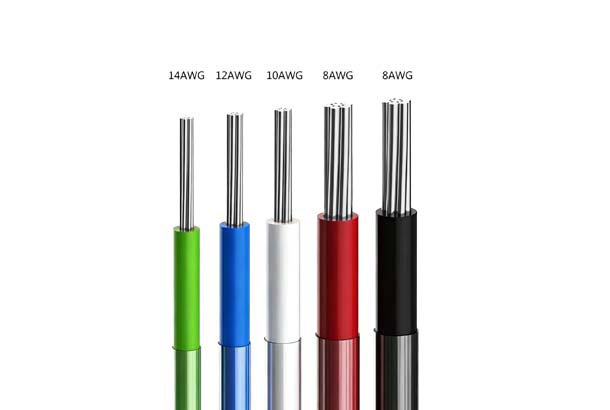

| Cond. Size | Strand Count | Diameter Over Conductor | Insul. Thickne ss | Insulation Color | Jacket Thickness | Approx. OD |
Approx. Weight | DC Resistance @ 20°C |
Allowable Ampacity At 75°C | Allowable Ampacity At 90°C | ||||||
| AWG/ Kcmil |
Minimum Number of Strands | mm | mm | mm | mm | KG/KM | Ω/KM | Amp | Amp | |||||||
| 14 | 7 | 1.86 | 0.38 | BK | 0.1 | 2.82 | 10.21 | 8.45 | 16 | 21 | ||||||
| 12 | 7 | 2.23 | 0.38 | BK | 0.1 | 3.3 | 14.12 | 5.31 | 20 | 25 | ||||||
| 10 | 7 | 2.94 | 0.51 | BK | 0.1 | 4.16 | 25.04 | 3.36 | 30 | 35 | ||||||
| 8 | 7 | 3.69 | 0.76 | BK | 0.13 | 5.47 | 41.29 | 2.48 | 40 | 45 | ||||||
| 6 | 7 | 4.29 | 0.76 | BK | 0.13 | 6.2 | 58.09 | 2.21 | 50 | 55 | ||||||
| 4 | 7 | 5.41 | 1.02 | BK | 0.15 | 7.9 | 93.84 | 1.39 | 65 | 75 | ||||||
| 2 | 7 | 6.81 | 1.02 | BK | 0.15 | 9.3 | 137.03 | 0.875 | 90 | 100 | ||||||
| 1 | 7 | 7.59 | 1.27 | BK | 0.18 | 10.6 | 175.76 | 0.693 | 100 | 115 | ||||||
| 1/0 | 18 | 8.53 | 1.27 | BK | 0.18 | 11.6 | 213.00 | 0.550 | 120 | 135 | ||||||
| 2/0 | 18 | 9.55 | 1.27 | BK | 0.18 | 12.6 | 259.17 | 0.436 | 135 | 150 | ||||||
| 3/0 | 18 | 10.7 | 1.27 | BK | 0.18 | 13.8 | 317.26 | 0.346 | 155 | 175 | ||||||
| 3/0 | 18 | 10.7 | 1.27 | PK | 0.18 | 13.8 | 317.26 | 0.346 | 155 | 175 | ||||||
| 4/0 | 18 | 12.1 | 1.27 | BK | 0.18 | 15.1 | 388.76 | 0.274 | 180 | 205 | ||||||
| 250 | 35 | 13.2 | 1.52 | PK | 0.20 | 16.8 | 467.70 | 0.232 | 205 | 230 | ||||||
| 300 | 35 | 15.5 | 1.52 | BK | 0.20 | 18.1 | 554.09 | 0.194 | 230 | 260 | ||||||
| 350 | 35 | 15.7 | 1.52 | BK | 0.20 | 19.3 | 628.57 | 0.166 | 250 | 280 | ||||||
| 400 | 35 | 16.7 | 1.52 | PK | 0.20 | 20.4 | 709.00 | 0.145 | 270 | 305 | ||||||
| 500 | 35 | 18.7 | 1.52 | BK | 0.20 | 22.4 | 865.40 | 0.116 | 310 | 350 | ||||||
| 500 | 35 | 18.7 | 1.52 | TN | 0.20 | 22.4 | 866.89 | 0.116 | 310 | 350 | ||||||
| 600 | 58 | 20.7 | 1.78 | BK | 0.23 | 24.6 | 1048.61 | 0.0967 | 340 | 385 | ||||||
| 700 | 58 | 23.1 | 1.78 | PE | 0.23 | 26.5 | 1207.99 | 0.0829 | 375 | 425 | ||||||
| 750 | 58 | 23.1 | 1.78 | BK | 0.23 | 24.3 | 1291.40 | 0.0774 | 385 | 435 | ||||||
| 900 | 58 | 25.4 | 1.78 | BK | 0.23 | 29.5 | 1540.14 | 0.0645 | 425 | 480 | ||||||
| 1000 | 58 | 26.9 | 1.78 | BK | 0.23 | 31.1 | 1647.20 | 0.0580 | 445 | 500 | ||||||
