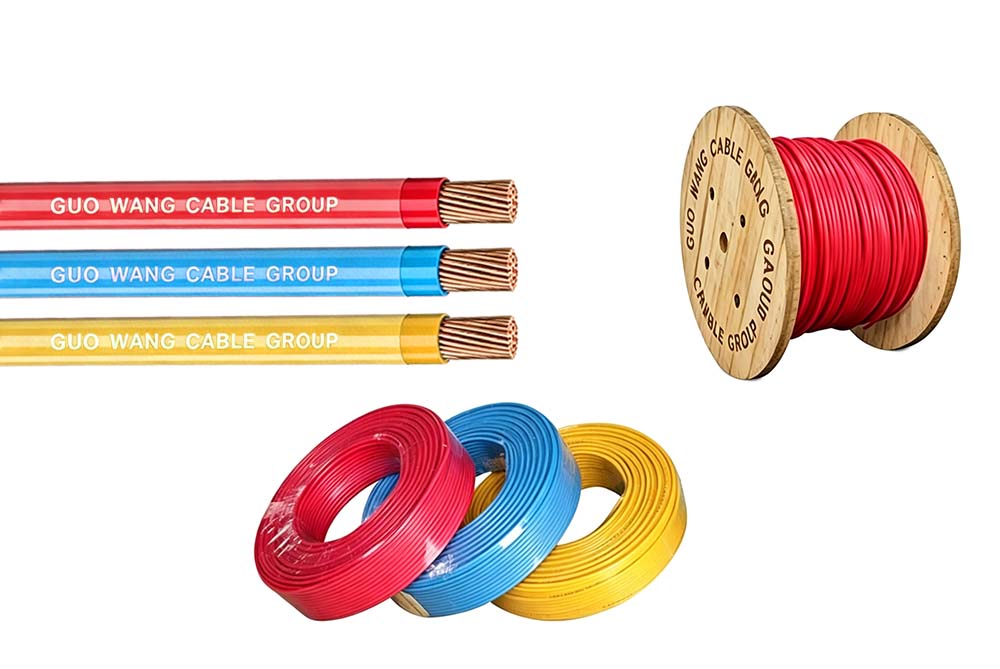

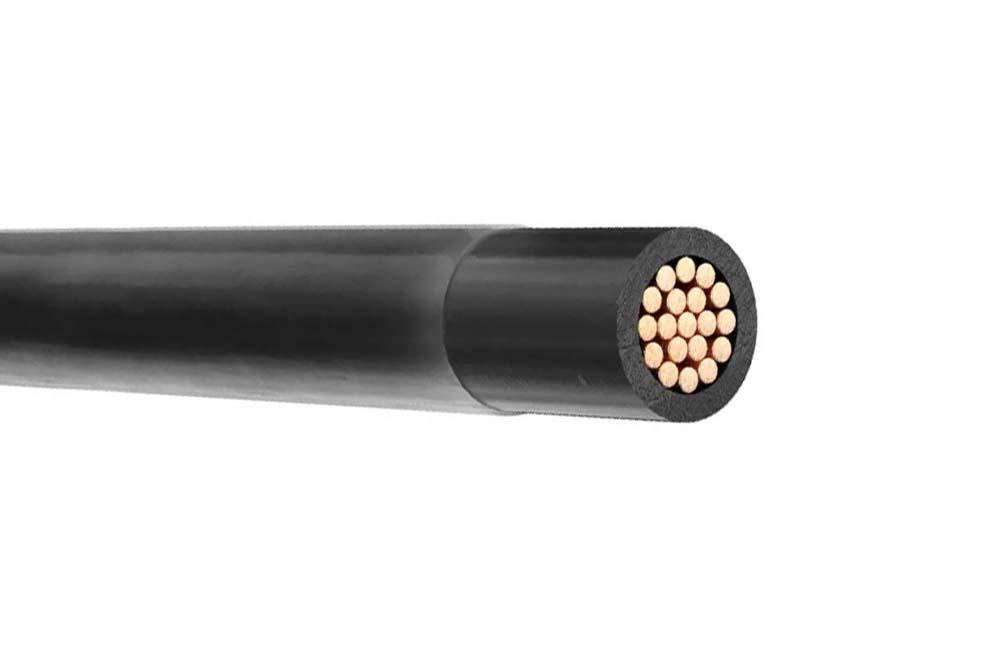

| THHN / THWN-2 Copper Electric Wire | ||
| Voltage: | 600V | |

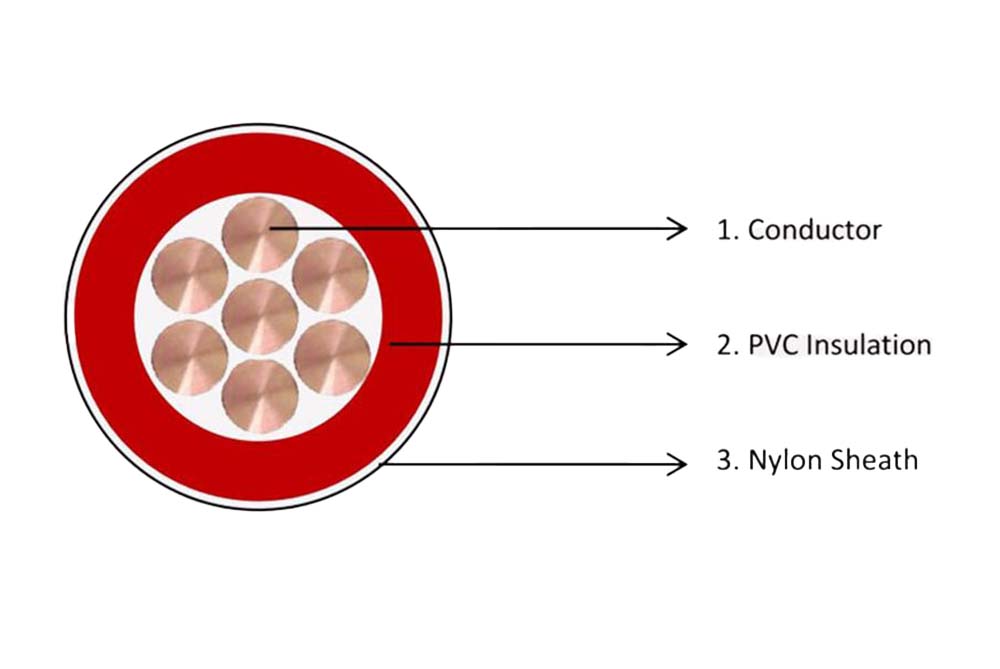

| Structure: | Conductor | Annealed copper wire |
| Insulation | PVC | |
| Jacket | Tough polyamide (Nylon) | |
| Colour Code | Red, White, Blue, Green, Black, etc | |
THHN/THWN copper wire is insulated with PVC (polyvinyl chloride) and covered with nylon sheath, with a rated voltage of 600V. It is flame retardant and moisture resistant and is mainly used for permanent installations of lighting, heating and electricity.
Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.
Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.
Annealed copper wire
Conforming to requirements of PNS 260 for solid conductor or
PNS 1207 for stranded conductors

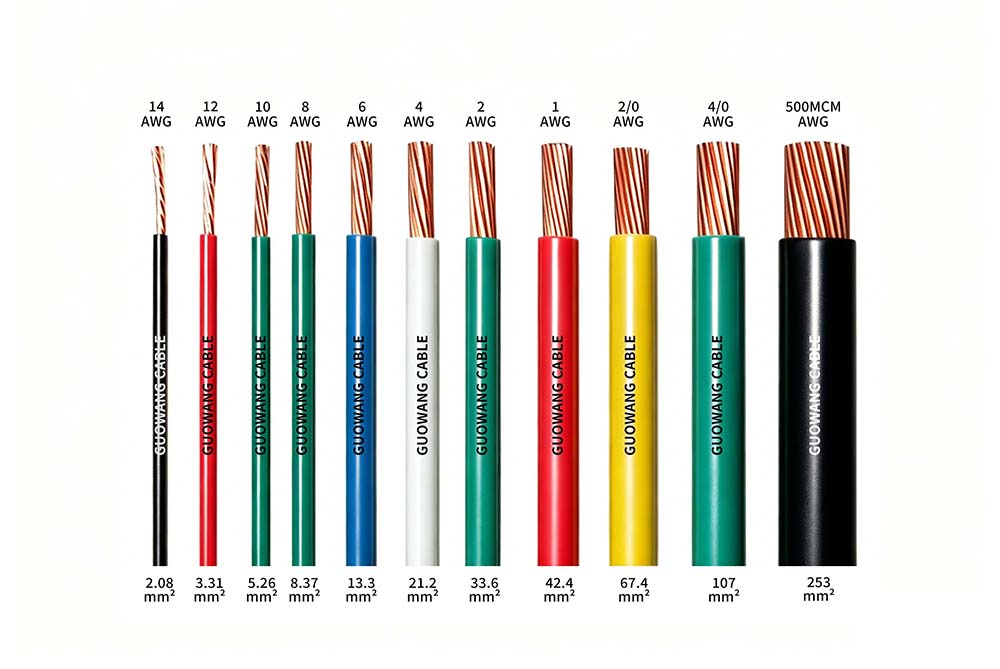

14～500mm2 compact stranded
PVC conforming to the requirements of PNS 661
Tough polyamide (Nylon)
ASTM B 3； ASTM B 8； NTC 1332； NTC 307； NTC 359； UL 83
90℃ dry / 75℃ wet
600V
Insulation in colors according to the manufacturing standard.
Current capacity for 90°C conductor temperature, 30°C ambient temperature. No more than three current-carrying conductors in a conduit or raceway.
|
Conductor |
Minimum insulation thickness, mm |
Minimum nylon thickness mm |
Approx. overall diameter mm |
|||
|
Nominal sectional area mm2 |
Composition |
Approximate Outside diameter mm |
||||
|
Number of wires |
Average |
At any point |
||||
|
2 |
1 |
1.6 |
0.4 |
0.34 |
0.1 |
2.6 |
|
7 |
1.8 |
2.8 |
||||
|
3.5 |
1 |
2 |
0.4 |
0.34 |
0.1 |
3 |
|
7 |
2.4 |
3.4 |
||||
|
5.5 |
1 |
2.6 |
0.5 |
0.34 |
0.1 |
3.8 |
|
7 |
3 |
4.2 |
||||
|
8 |
1 |
3.2 |
0.8 |
0.68 |
0.13 |
5.1 |
|
7 |
3.6 |
5.5 |
||||
|
14 |
7 |
4.4 |
0.8 |
0.68 |
0.13 |
6.5 |
|
22 |
7 |
5.5 |
1.0 |
0.85 |
0.15 |
8.1 |
|
30 |
7 |
6.5 |
1.0 |
0.85 |
0.15 |
9.1 |
|
38 |
19 |
7.3 |
1.3 |
1.11 |
0.18 |
10.6 |
|
50 |
19 |
8.0 |
1.3 |
1.11 |
0.18 |
11.3 |
|
60 |
19 |
9.2 |
1.3 |
1.11 |
0.18 |
12.5 |
|
80 |
19 |
10.7 |
1.3 |
1.11 |
0.18 |
14.0 |
|
100 |
19 |
11.8 |
1.3 |
1.11 |
0.18 |
15.1 |
|
125 |
37 |
13.1 |
1.6 |
1.36 |
0.18 |
17.0 |
|
150 |
37 |
14.5 |
1.6 |
1.36 |
0.20 |
18.4 |
|
175 |
37 |
15.6 |
1.6 |
1.36 |
0.20 |
19.5 |
|
200 |
37 |
16.8 |
1.6 |
1.36 |
0.20 |
20.7 |
|
250 |
37 |
18.7 |
1.6 |
1.36 |
0.20 |
22.6 |
|
300 |
61 |
20.4 |
1.8 |
1.53 |
0.23 |
24.8 |
|
325 |
61 |
21.3 |
1.8 |
1.53 |
0.23 |
25.7 |
|
375 |
61 |
22.4 |
1.8 |
1.53 |
0.23 |
26.8 |
|
400 |
61 |
23.6 |
1.8 |
1.53 |
0.23 |
28.0 |
|
500 |
61 |
26.4 |
1.8 |
1.53 |
0.23 |
30.8 |
