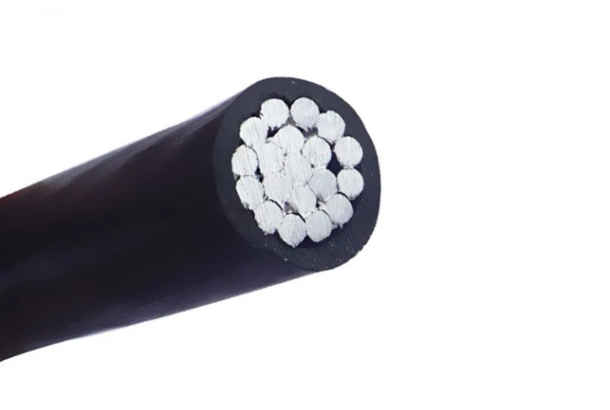

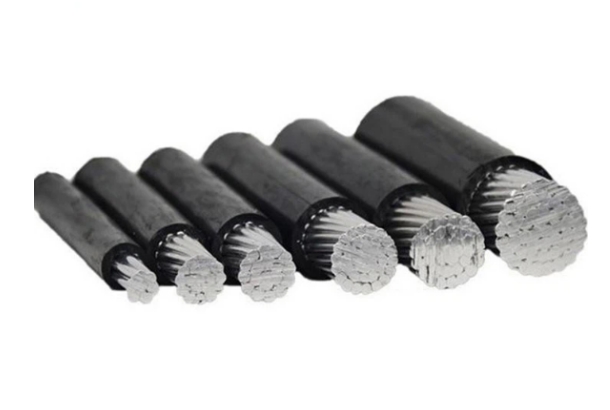

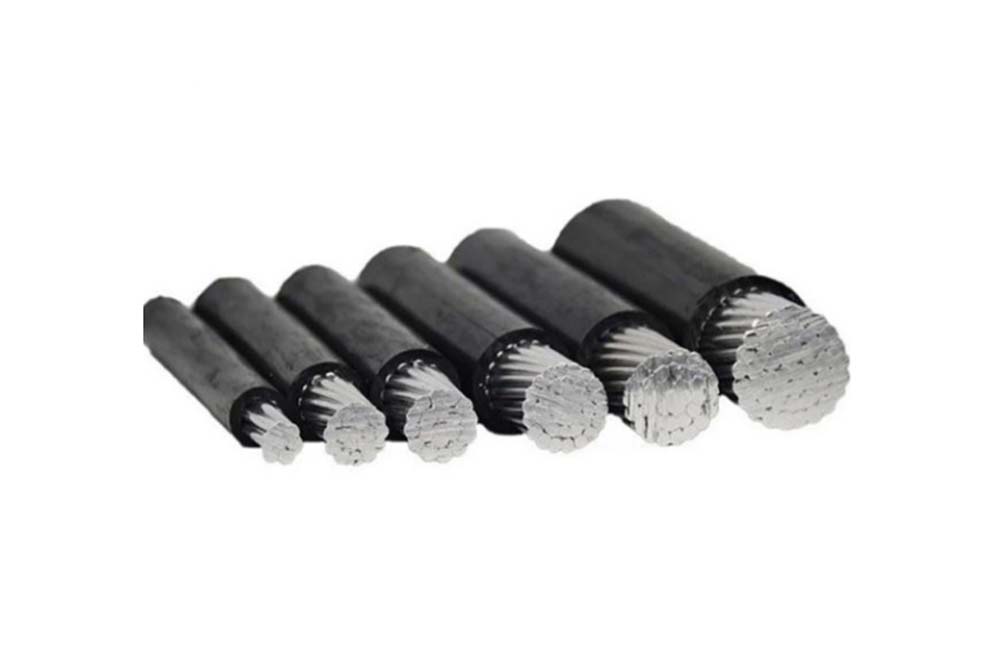

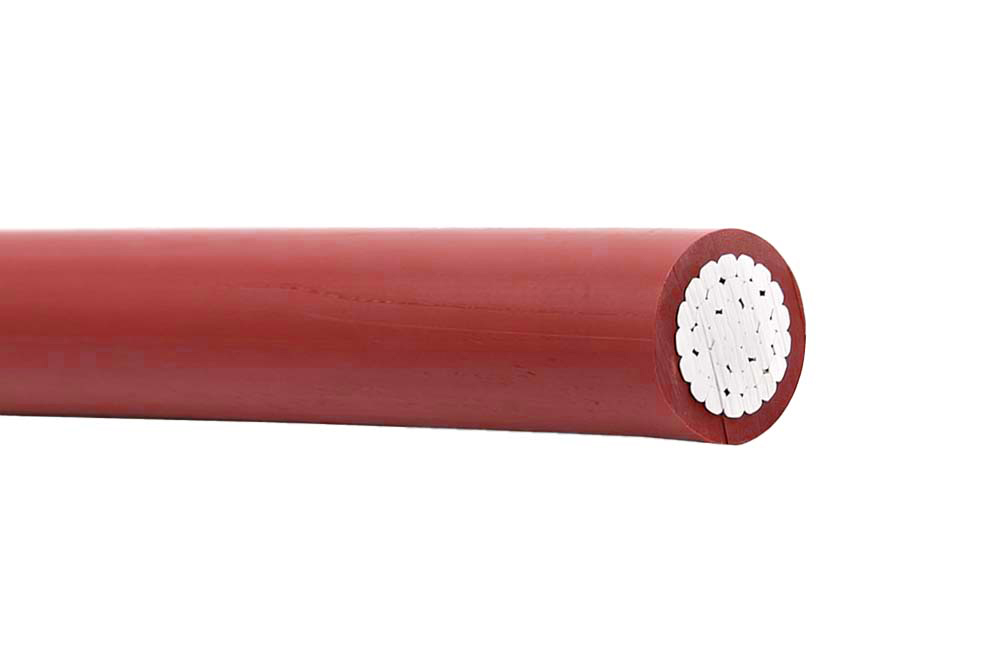

| XHHW-2 Aluminum Conductor | ||
| Voltage: | 600V | |

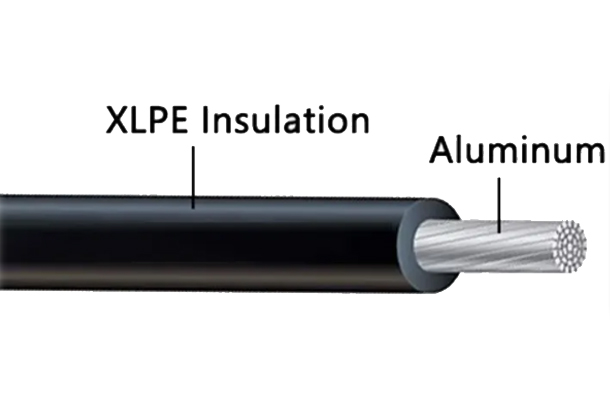

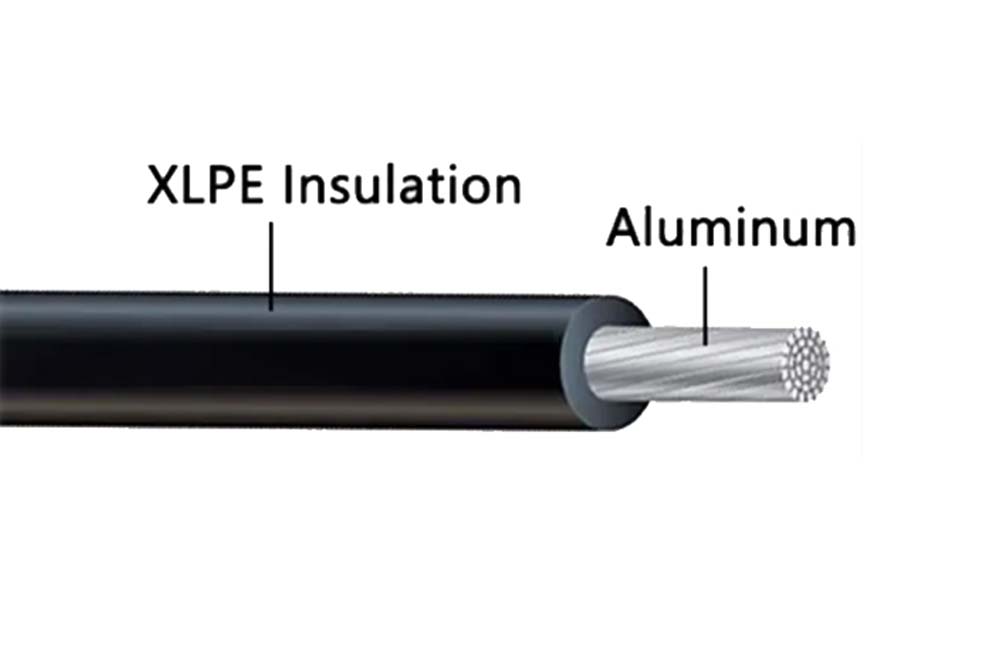

| Structure: | Conductor | Class B stranded bare aluminum per ASTM B800 and ASTM B801 |
| Insulation | Heat and moisture resistant cross-linked polyethylene (XLPE) insulation in various colors | |

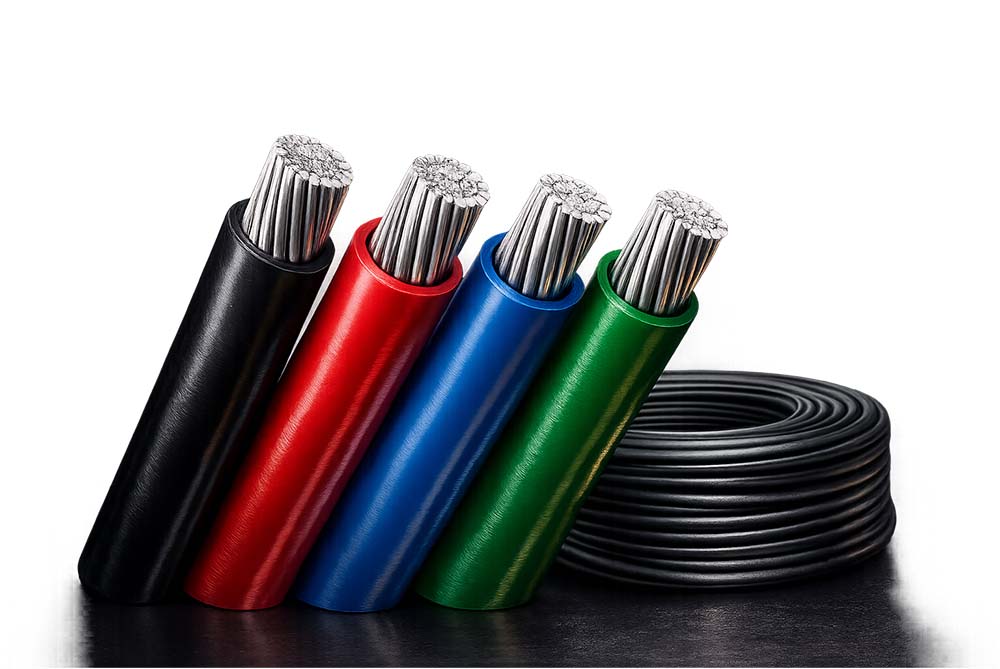

| Colour Code | Black, Customized as needed | |
XHHW-2 Wire can be used as a building line, widely used in highrise buildings, subways, commercial offices and other large public places, can also be used in photovoltaic power stations, mobile energy storage power stations, wind energy storage systems and other new energy fields.
XHHW wire is a heavy-duty electrical conductor designed for use in a variety of general-purpose applications, particularly in industrial, commercial, and residential settings. As XHHW-2 type wire, it is suitable for installation in conduit, underground conduit, or other approved raceways, and can be used for service, feeder, and branch circuit wiring in accordance with the National Electrical Code (NEC).
Class B stranded bare aluminum per ASTM B800 and ASTM B801
Heat and moisture resistant cross-linked polyethylene (XLPE) insulation in various colors
ASTM B800 8000 Series Aluminum Alloy Wire
ASTM B801 Concentric-Lay-Stranded Conductors of 8000 Series Aluminum Alloy
UL 44 - Thermoset-Insulated Wires and Cables
UL 1581 - Flame Exposure Test
National Electrical Code (NEC)
-40℃ - 90℃
600V
Insulation in colors according to the manufacturing standard.
| SIZE (AWG OR KCMIL) | STRAND QTY. |
Nominal Insulation Thickness | OUTSIDE DIAMETER | APPROX. NET WEIGHT | ALLOWABLE AMPACITY1 (AMPS) | ||||
| MM | IN | MM | IN | KG/MIL | LBS/1000FT | 75º C | 90º C | ||
| 8 | 7 | 1.14 | 0.045 | 5.99 | 0.236 | 42 | 28 | 40 | 45 |
| 6 | 7 | 1.14 | 0.045 | 6.96 | 0.274 | 60 | 40 | 50 | 55 |
| 4 | 7 | 1.14 | 0.045 | 8.18 | 0.322 | 86 | 58 | 65 | 75 |
| 2 | 7 | 1.14 | 0.045 | 9.70 | 0.382 | 128 | 86 | 90 | 100 |
| 1 | 19 | 1.40 | 0.055 | 10.60 | 0.417 | 164 | 110 | 100 | 115 |
| 1/0 | 19 | 1.40 | 0.055 | 11.50 | 0.453 | 200 | 134 | 120 | 135 |
| 2/0 | 19 | 1.40 | 0.055 | 12.60 | 0.496 | 243 | 163 | 135 | 150 |
| 3/0 | 19 | 1.40 | 0.055 | 13.80 | 0.543 | 299 | 201 | 155 | 175 |
| 4/0 | 19 | 1.40 | 0.055 | 15.10 | 0.594 | 368 | 247 | 180 | 205 |
| 250 | 37 | 1.65 | 0.065 | 16.70 | 0.657 | 442 | 297 | 205 | 230 |
| 300 | 37 | 1.65 | 0.065 | 18.00 | 0.709 | 523 | 351 | 230 | 260 |
| 350 | 37 | 1.65 | 0.065 | 19.20 | 0.756 | 599 | 402 | 250 | 280 |
| 400 | 37 | 1.65 | 0.065 | 20.20 | 0.795 | 676 | 454 | 270 | 305 |
| 500 | 37 | 1.65 | 0.065 | 22.20 | 0.874 | 830 | 557 | 310 | 350 |
| 600 | 61 | 2.03 | 0.08 | 24.90 | 0.98 | 1014 | 681 | 340 | 385 |
| 750 | 61 | 2.03 | 0.08 | 27.30 | 1.075 | 1244 | 835 | 385 | 435 |
| 1000 | 61 | 2.03 | 0.08 | 31.20 | 1.228 | 1627 | 1092 | 445 | 500 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.
Henan Guowang Cable is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.
Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
