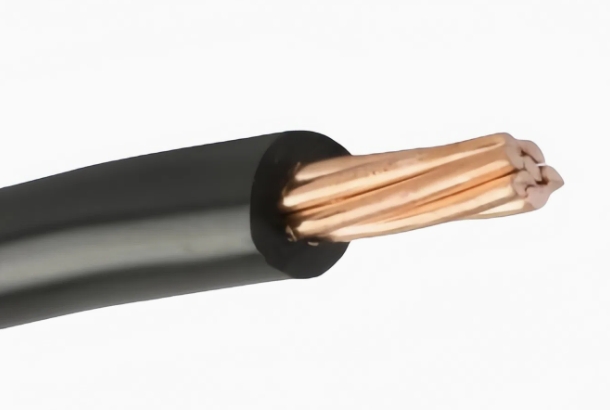

| XHHW-2 Copper Conductor | ||
| Voltage: | 600V | |

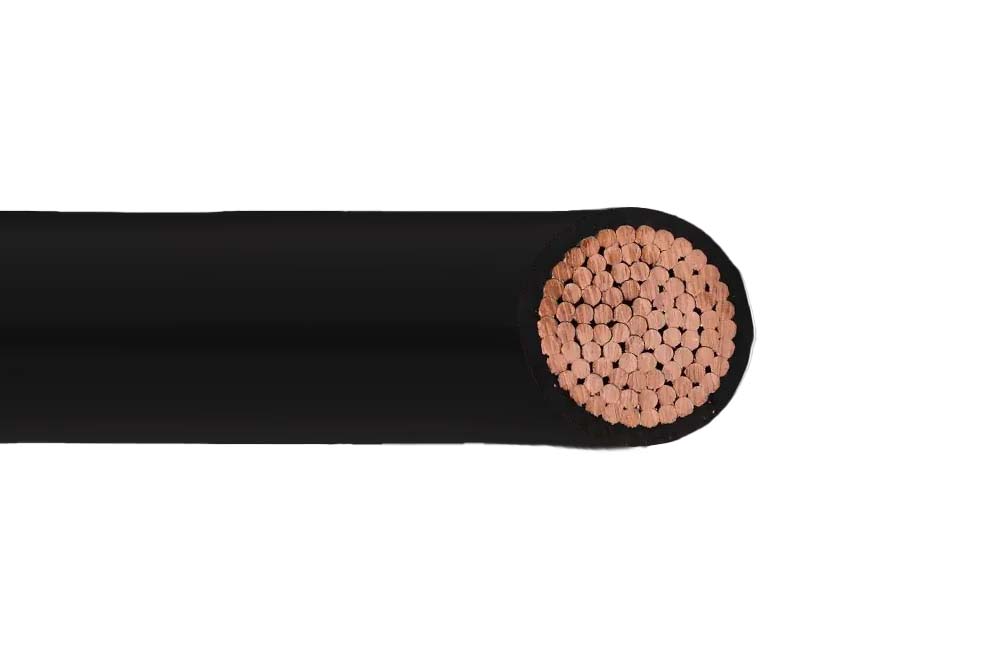

| Structure: | Conductor | Class B stranded bare copper per ASTM B3 and ASTM B8 |

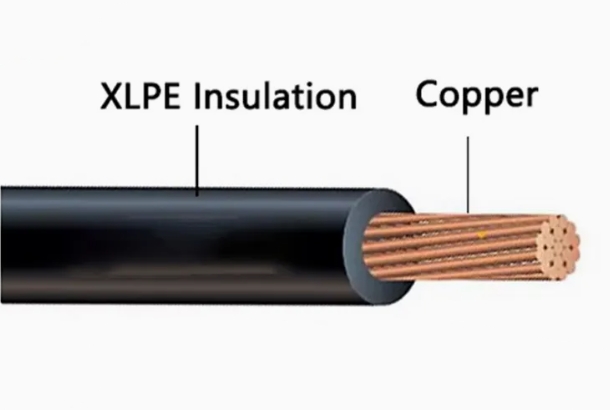

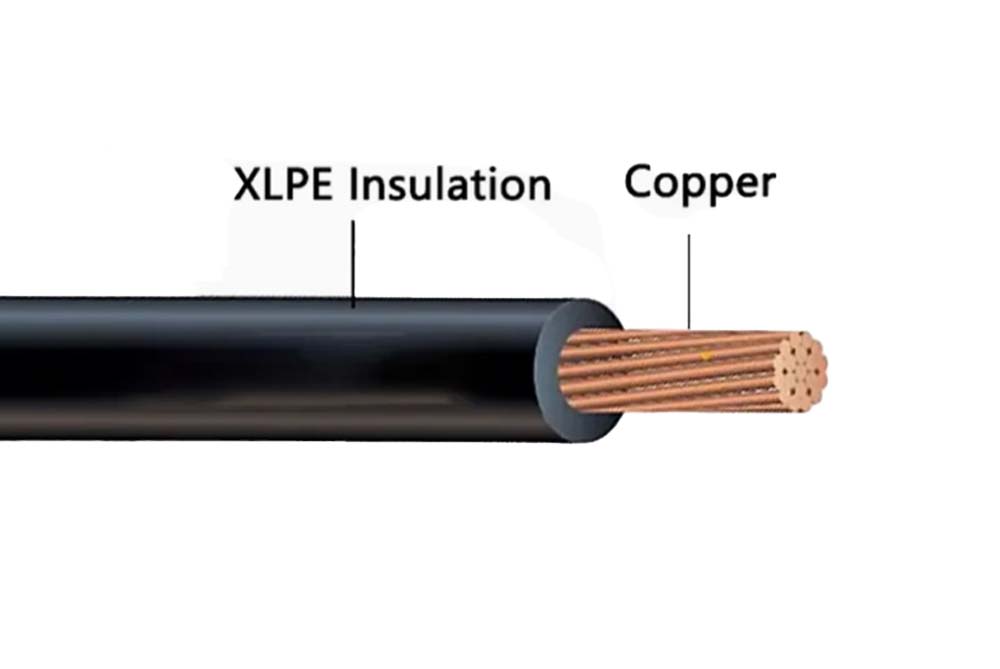

| Insulation | Cross Linked Polyethylene (XLPE) , Silicone-Free, Abrasion, High-Heat, Moisture Resistant | |

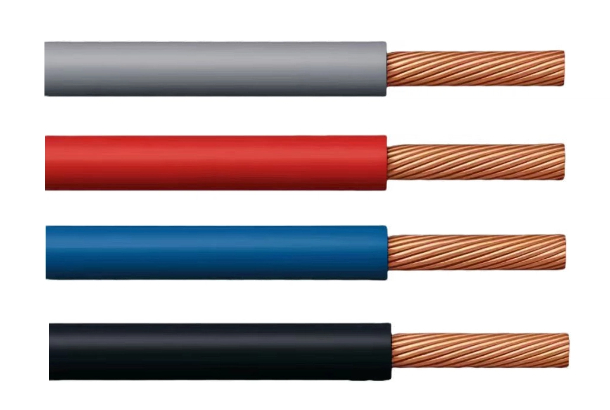

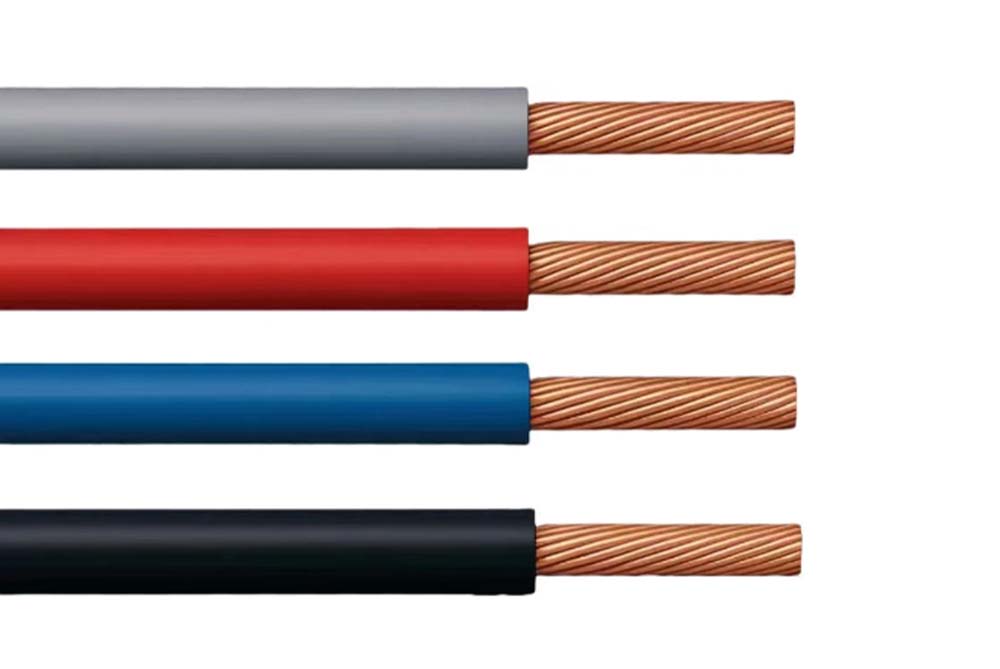

| Colour Code | Black, Customized as needed | |
XHHW-2 Wire can be used as a building line, widely used in highrise buildings, subways, commercial offices and other large public places, can also be used in photovoltaic power stations, mobile energy storage power stations, wind energy storage systems and other new energy fields.
XHHW wire is a heavy-duty electrical conductor designed for use in a variety of general-purpose applications, particularly in industrial, commercial, and residential settings. As XHHW-2 type wire, it is suitable for installation in conduit, underground conduit, or other approved raceways, and can be used for service, feeder, and branch circuit wiring in accordance with the National Electrical Code (NEC).
Class B stranded bare copper per ASTM B3 and ASTM B8
Cross Linked Polyethylene (XLPE) , Silicone-Free, Abrasion, High-Heat, Moisture Resistant
ASTM B3, B8
UL 1581 - Flame Exposure Test
UL 44 - Thermoset-Insulated Wires and Cables
National Electrical Code (NEC)
-40℃ - 90℃
600V
Insulation in colors according to the manufacturing standard.
| SIZE (AWG OR KCMIL) | STRAND QTY. |
Nominal Insulation Thickness | OUTSIDE DIAMETER | APPROX. NET WEIGHT | ALLOWABLE AMPACITY1 (AMPS) | ||||
| MM | IN | MM | IN | KG/MIL | LBS/1000FT | 75º C | 90º C | ||
| 14 | 7 | 0.76 | 0.03 | 3.33 | 0.131 | 25 | 17 | 20 | 25 |
| 12 | 7 | 0.76 | 0.03 | 3.81 | 0.15 | 37 | 25 | 25 | 30 |
| 10 | 7 | 0.76 | 0.03 | 4.39 | 0.173 | 57 | 38 | 35 | 40 |
| 8 | 7 | 1.14 | 0.045 | 5.99 | 0.236 | 94 | 63 | 50 | 55 |
| 6 | 7 | 1.14 | 0.045 | 6.96 | 0.274 | 150 | 101 | 65 | 75 |
| 4 | 7 | 1.14 | 0.045 | 8.18 | 0.322 | 228 | 153 | 85 | 95 |
| 3 | 7 | 1.14 | 0.045 | 8.89 | 0.35 | 280 | 188 | 100 | 115 |
| 2 | 7 | 1.14 | 0.045 | 9.70 | 0.382 | 348 | 234 | 115 | 130 |
| 1 | 19 | 1.40 | 0.055 | 10.60 | 0.417 | 451 | 303 | 130 | 145 |
| 1/0 | 19 | 1.40 | 0.055 | 11.50 | 0.453 | 557 | 374 | 150 | 170 |
| 2/0 | 19 | 1.40 | 0.055 | 12.60 | 0.496 | 690 | 464 | 175 | 195 |
| 3/0 | 19 | 1.40 | 0.055 | 13.80 | 0.543 | 859 | 577 | 200 | 225 |
| 4/0 | 19 | 1.40 | 0.055 | 15.10 | 0.594 | 1068 | 718 | 230 | 260 |
| 250 | 37 | 1.65 | 0.065 | 16.70 | 0.657 | 1229 | 826 | 255 | 290 |
| 300 | 37 | 1.65 | 0.065 | 18.00 | 0.709 | 1466 | 985 | 285 | 320 |
| 350 | 37 | 1.65 | 0.065 | 19.20 | 0.756 | 1702 | 1144 | 310 | 350 |
| 400 | 37 | 1.65 | 0.065 | 20.20 | 0.795 | 1937 | 1302 | 335 | 380 |
| 500 | 37 | 1.65 | 0.065 | 22.20 | 0.874 | 2408 | 1618 | 380 | 430 |
| 600 | 61 | 2.03 | 0.08 | 24.90 | 0.980 | 2929 | 1969 | 420 | 475 |
| 750 | 61 | 2.03 | 0.08 | 27.30 | 1.075 | 3588 | 2411 | 475 | 535 |
| 1000 | 61 | 2.03 | 0.08 | 31.20 | 1.228 | 3588 | 2411 | 475 | 535 |
