AAAC Conductor
AAAC Conductor

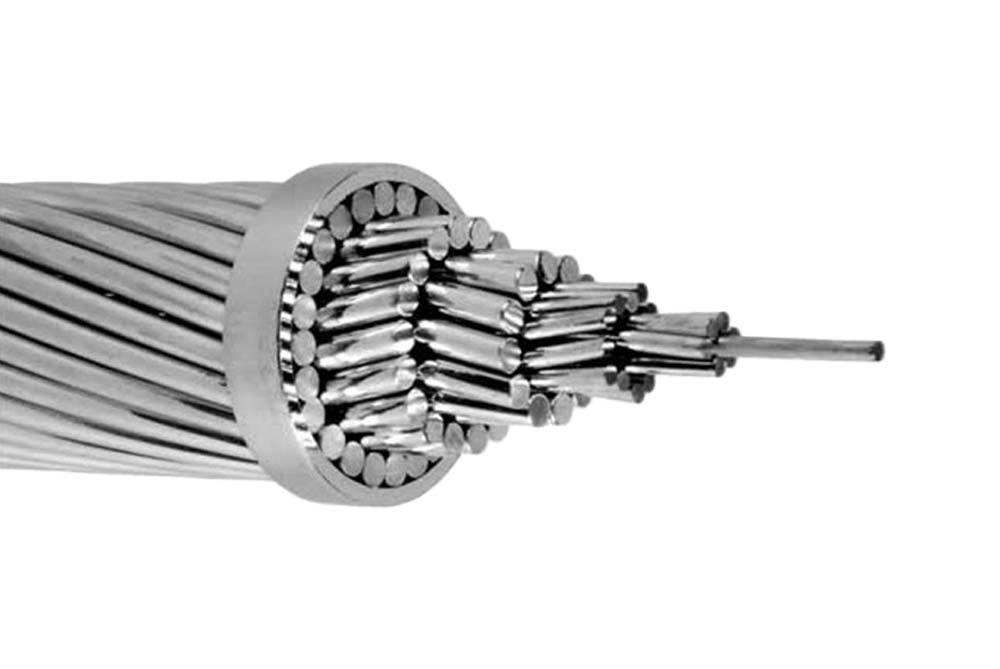

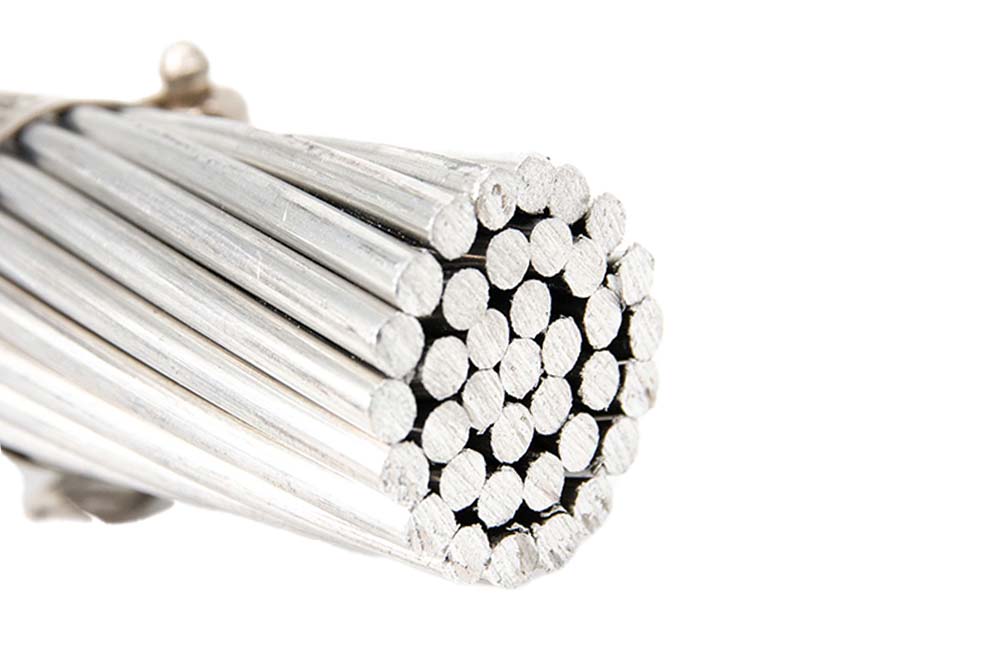

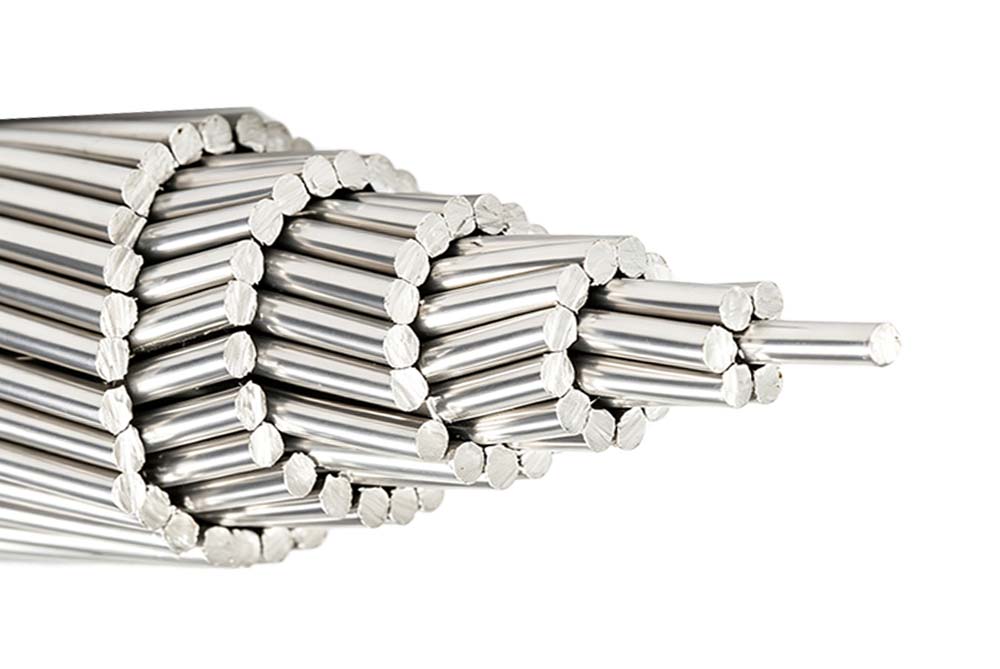

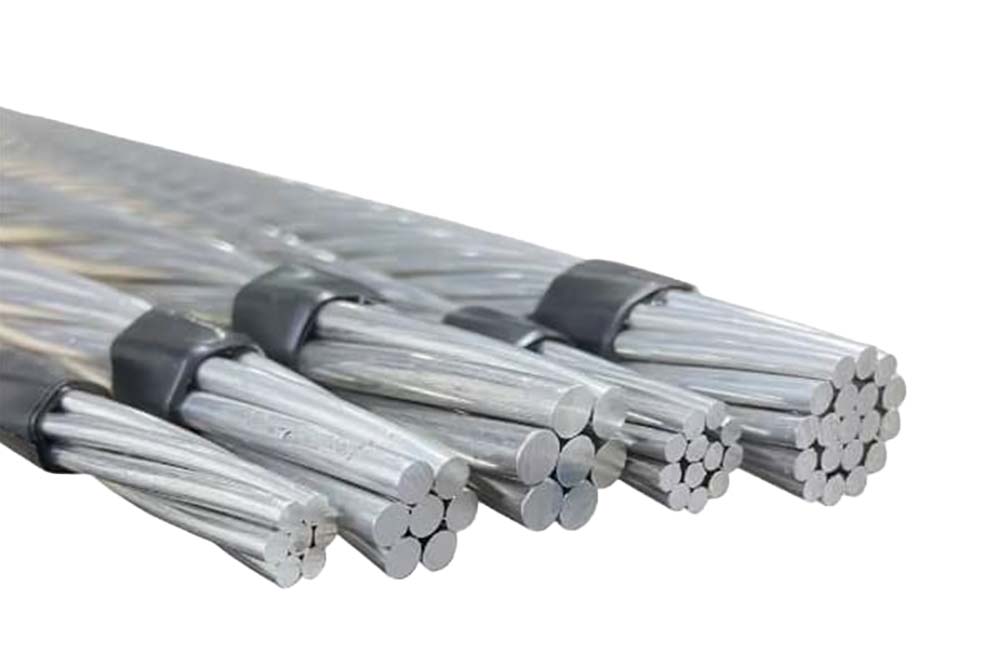

AAAC-All Aluminium Alloy Conductor
Voltage: Height Voltage
Structure: Conductor Aluminum alloy
Insulation no
Jacket no
Feature Bear conductor
  • Overview
  • Specifications
  • FAQ
  • Test&Acceptance
  • Send Message

Scope of application

Application

AAAC are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR.

Features

All Aluminum-Alloy Conductors (AAAC) can be used in Medium, High, and Extra-High voltage transmission lines.

AAAC offers better sag performance due to the high strength-to-weight ratio provided by the aluminum alloy.

In addition, AAAC conductor aluminum provides a higher corrosion resistance than ACSR conductors.

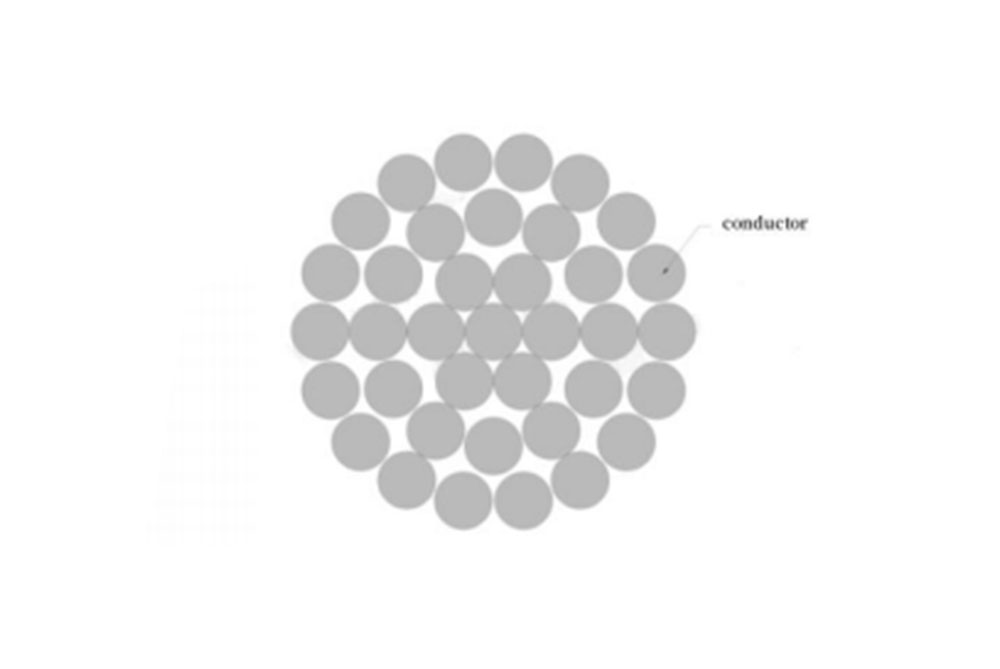

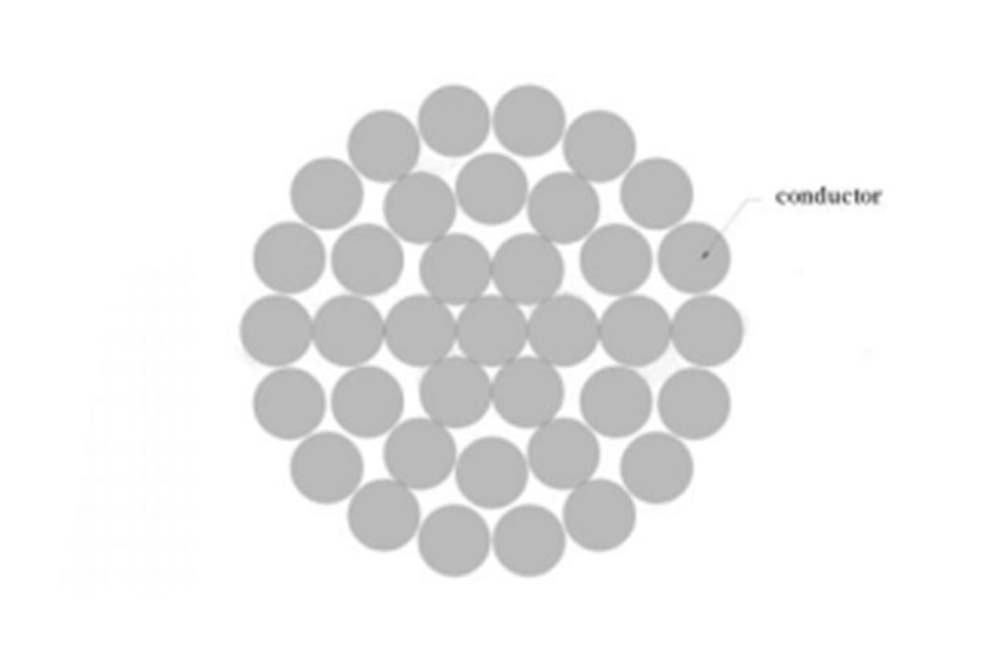

CONSTRUCTION

Conductor

Aluminium alloy conductor Type AL2 to AL7 as per EN 50183

AAAC conductors are made of a highly conductive aluminum-magnesium-silicon alloy (minimum 53% IACS).

It contains magnesium (0.6-0.9%) and silicon (0.5-0.9%), which gives it better mechanical properties after treatment. AAAC conductors are made of aluminum alloy 6201.

STANDARDS

ASTM B399, ASTM B231, TS IEC 1089, DIN 48201, BS 215, UNE 21.018

Additional Standards

CONDUCTOR MODEL SPECIFICATION (MM2) CORSS SECTIONAL(MM2) NO. OF
WIRES(N)
DIAMETER OR WIRE
(MM)
OVERALL DIAMETER
OF CONDUCTOR
(MM)
WEIGHT (KG/KM)
AAAC 10 10.02 7 1.35 4.05 27.4
16 16.08 7 1.71 5.13 44
25 24.94 7 2.13 6.39 68.2
35 34.91 7 2.52 7.56 95.5
50 50.14 7 3.02 9.06 137.2
70 70.07 7 3.57 10.7 191.7
95 95.14 7 4.16 12.5 261.5
150 149.96 19 3.17 15.9 412.2
210 209.85 19 3.75 18.8 576.8
240 239.96 19 4.01 20.1 661.1
300 299.43 37 3.21 22.5 825
400 399.98 37 3.71 26 1102
500 500.48 37 4.15 29.1 1380.9
630 631.3 61 3.63 32.7 1741.8
800 801.43 61 4.09 36.8 2211.3
1000 1000.58 61 4.57 41.1 2760.7
AAAC-(IEC) 20 18.6 7 1.84 5.52 50.8
30 29 7 2.3 6.9 79.5
45 46.5 7 2.91 8.72 127.1
75 73.2 7 3.65 10.9 200.2
120 116 19 2.79 14 319.3
145 145 19 3.12 15.6 399.2
185 186 19 3.53 17.6 511
230 232 19 3.95 19.7 638.7
300 290 19 4.41 22.1 798.4
360 366 37 3.55 24.8 1008.4
465 465 37 4 28 1280.5
520 523 37 4.24 29.7 1440.5
580 581 37 4.47 31.3 1600.6
650 651 61 3.69 33.2 1795.3
720 732 61 3.91 35.2 2019.8
825 825 61 4.15 37.3 2276.2
930 930 61 4.4 39.6 2564.8
1050 1046 91 3.83 42.1 2888.3
1150 1162 91 4.03 44.4 3209.3
1300 1301 91 4.27 46.9 3594.4
