| NMD 90 Copper Cable 300V | ||
| Voltage: | 300V | |

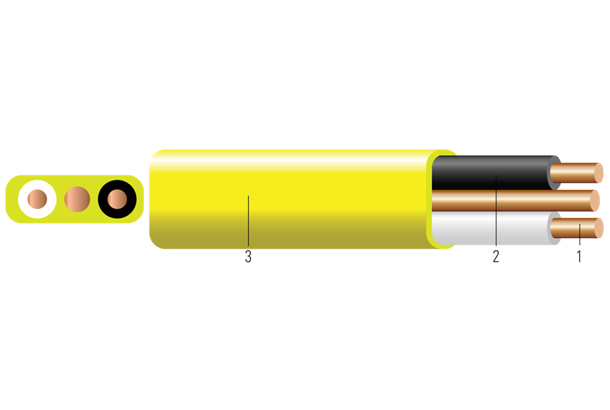

| Structure: | Conductor | Solid per ASTM B3 or Combination unilay-stranded copper conductors per ASTM B787 |
| Insulation |
All phases are insulated with Polyvinyl Chloride with Nylon Sheath |
|
| Jacket | Polyvinyl Chloride PVC | |
| Colour Code | Black, White and Red | |

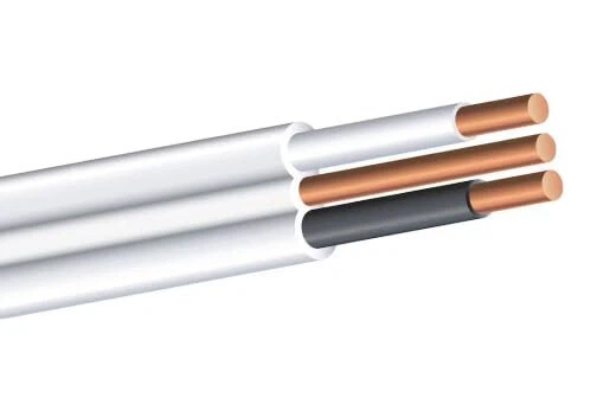

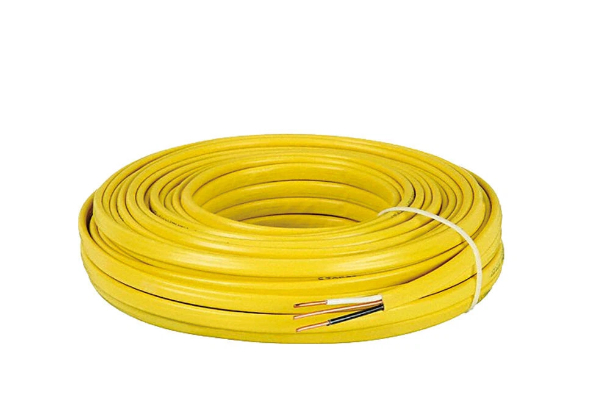

NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.

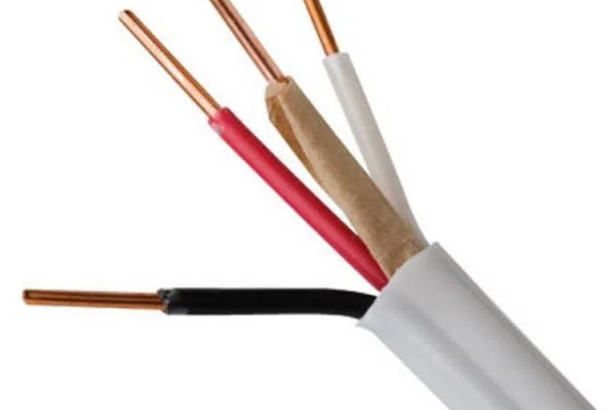

NMD90 cables are available in two or three cores with an exposed ground conductor.
NMD90 can be used in dry locations where it cannot be subject to mechanical damage. This product is available from #8 to #2 in two, three, or four copper conductors.
Solid per ASTM B3 or Combination unilay-stranded copper conductors per ASTM B787
All phases are insulated with Polyvinyl Chloride with Nylon Sheath
Polyvinyl Chloride PVC
ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
CSA C22.2 No. 48 non-metallic sheathed cable
ICEA S-95-658 (NEMA WC70) Power Cables Rated 2000 Volts or Less for the Distribution of Electrical Energy
IEEE 1202/FT4 Flame Test (70,000 BTU/hr) 350kcmil and Larger
Rated at 90°C dry
Rated at -25°C
300V
Insulation in colors according to the manufacturing standard.
| Stock Number | Cond. Size AWG/ Kcmil | Conductor Number | Diameter Over Conductor (inch) | Conductor Stranding | Thickness Insulation (mils) | Ground Size (No.xAWG) | Thickness Jacket (mil) | Approx. OD (inch) | Weight (lbs/1000ft) | Copper Weight Overall (lbs/1000ft) |
| 551373 | 14 | 2 | 0.064 | Solid | 35 | 1x14 | 30 | 0.196x0.396 | 37 | 69 |
| 672477 | 14 | 2 | 0.064 | Solid | 35 | 1x14 | 30 | 0.196x0.396 | 37 | 69 |
| 471748 | 14 | 2 | 0.064 | Solid | 35 | 1x14 | 30 | 0.196x0.396 | 37 | 69 |
| 471797 | 14 | 3 | 0.064 | Solid | 35 | 1x14 | 30 | 0.388 | 50 | 90 |
| 472308 | 12 | 2 | 0.08 | Solid | 35 | 1x14 | 30 | 0.213x0.430 | 51 | 88 |
| 471755 | 12 | 2 | 0.08 | Solid | 35 | 1x14 | 30 | 0.213x0.430 | 51 | 88 |
| 471805 | 12 | 3 | 0.08 | Solid | 35 | 1x14 | 30 | 0.428 | 72 | 118 |
| 471763 | 10 | 2 | 0.101 | Solid | 35 | 1x12 | 30 | 0.234x0.488 | 82 | 124 |
| 472316 | 10 | 2 | 0.101 | Solid | 35 | 1x12 | 30 | 0.234x0.488 | 82 | 124 |
| 471813 | 10 | 3 | 0.101 | Solid | 35 | 1x12 | 30 | 0.479 | 115 | 168 |
| 551038 | 8 | 2 | 0.141 | 7 | 40 | 1x10 | 45 | 0.316x0.694 | 133 | 210 |
| 471821 | 8 | 3 | 0.141 | 7 | 40 | 1x10 | 45 | 0.635 | 186 | 283 |
| 557881 | 6 | 2 | 0.177 | 7 | 50 | 1x8 | 45 | 0.374x0.800 | 213 | 339 |
| 471839 | 6 | 3 | 0.177 | 7 | 50 | 1x8 | 45 | 0.775 | 297 | 433 |
| 557727 | 4 | 2 | 0.225 | 7 | 50 | 1x8 | 60 | 0.839 | 311 | 463 |
| 557882 | 3 | 2 | 0.252 | 7 | 50 | 1x6 | 80 | 0.937 | 410 | 610 |
| 676254 | 3 | 3 | 0.252 | 7 | 50 | 1x6 | 80 | 1.029 | 574 | 822 |
| 557880 | 2 | 3 | 0.282 | 7 | 50 | 1x6 | 80 | 0.991 | 702 | 862 |
We are based in Henan, China, start from 2012,sell to Domestic Market(70.00%), Mid East(11.00%), South America(10.00%), Africa(3.00%), North America(2.00%), Southeast Asia(2.00%), Eastern Asia(00.00%), South Asia(00.00%). There are total about 101-200 people in our office.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have twenty years of experience in design and development
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Western Union;
Language Spoken: English,Chinese,French
Most quotes are returned within 24 hours
We can manage all of your low voltage cable Project requirements regardless of size or value. Throughout our 20 years of trading we have managed many projects.
Should you have any questions regarding your project please contact a member of our sales team who will be happy to help.
Henan Guowang Cable is the supplier of bespoke cable and temporary power cable. We can supply tailor made power leads to your exact any cable size, in any length. We have the enough stock and range of low voltage cables including all sizes and core configurations 0.3mm2 up to 6mm2. Additionally we hold the full range of flexible control both braided and unbraided up to 6mm2. Any of these cables can be incorporated into customised leads.
Our range of electrical cables include power, fire performance, shielded,, control and general wiring cables. All of our cables are manufactured to china, European and International standards where applicable.
