| NMD90 300V – Copper Conductors | ||
| Voltage: | 300V | |

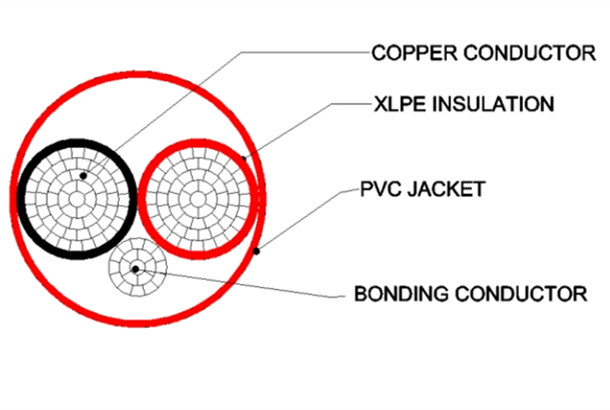

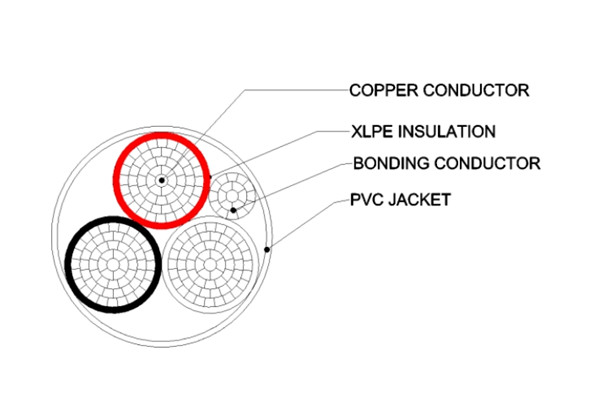

| Structure: | Conductor | Stranded Bare Soft Copper, ASTM B8 |
| Insulation |
Cross-linked Polyethylene (XLPE) |
|
| Jacket | Polyvinyl Chloride (PVC) | |
| Colour Code | Black, White and Red | |

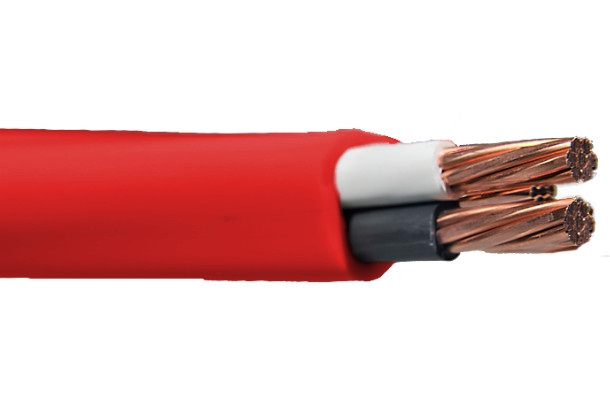

Guowang Cable Group manufactures NMD90 with cross-linked polyethylene insulation and an FT1 PVC jacket. NMD90 can be used in dry locations where it cannot be subject to mechanical damage. This product is available from #8 to #2 in two, three, or four copper conductors.
NMD90 can be used in dry locations where it cannot be subject to mechanical damage. This product is available from #8 to #2 in two, three, or four copper conductors.
Stranded Bare Soft Copper, ASTM B8
Cross-linked Polyethylene (XLPE)
Stranded Bare Soft Copper, ASTM B8
Polyvinyl Chloride (PVC)
CSA C22.2 No. 48, Nonmetallic sheathed cable
CSA C22.2 No. 38, Thermoset-insulated wires and cables
CSA C22.2 No. 2556, FT1 Vertical Propagation Flame Test
Rated at 90°C dry
Rated at -25°C
300V
Insulation in colors according to the manufacturing standard.
| Power Conductor | Bonding Conductor |
Insulation Thickness |
Jacket Thickness |
Cable Overall Diameter |
Cable Weight |
Ampacity | |||||
| Conductor Count | AWG | AWG | in | mm | in | mm | in | mm | lbs | kg | A |
| 2 | 8/7 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.498 | 12.6 | 193 | 287 | 55 |
| 2 | 6/7 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.608 | 15.4 | 287 | 426 | 75 |
| 2 | 4/7 | 8/7 | 0.045 | 1.14 | 0.060 | 1.5 | 0.750 | 19.1 | 431 | 641 | 95 |
| 2 | 3/7 | 8/7 | 0.045 | 1.14 | 0.080 | 2.0 | 0.844 | 21.4 | 558 | 831 | 115 |
| 2 | 2/7 | 8/7 | 0.045 | 1.14 | 0.080 | 2.0 | 0.906 | 23.0 | 662 | 985 | 130 |
| 3 | 8/7 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.529 | 13.4 | 256 | 381 | 55 |
| 3 | 6/7 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.647 | 16.4 | 383 | 570 | 75 |
| 3 | 4/7 | 8/7 | 0.045 | 1.14 | 0.060 | 1.5 | 0.797 | 20.3 | 586 | 873 | 95 |
| 3 | 3/7 | 8/7 | 0.045 | 1.14 | 0.080 | 2.0 | 0.895 | 22.7 | 747 | 1112 | 115 |
| 3 | 2/7 | 8/7 | 0.045 | 1.14 | 0.080 | 2.0 | 0.962 | 24.4 | 899 | 1338 | 130 |
