| NMD90 300V – Aluminum Conductors | ||
| Voltage: | 300V | |

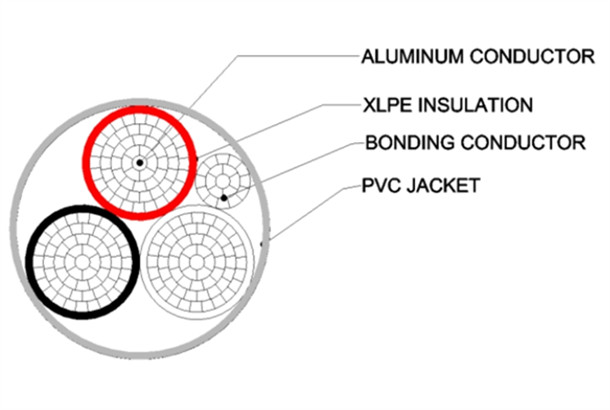

| Structure: | Conductor | Stranded AA-8000 Series Aluminum Alloy (ACM) |
| Insulation |
Cross-linked Polyethylene (XLPE) |
|
| Jacket | Polyvinyl Chloride (PVC) | |
| Colour Code | Black, White and Red | |

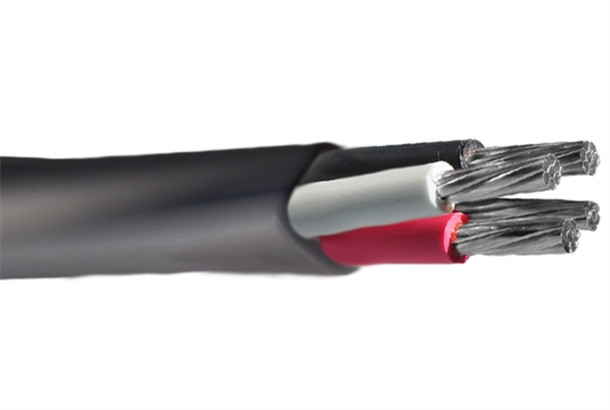

Guowang Cable Group manufactures CSA approved aluminum NMD90. Cables are manufactured with three 8000 series aluminum ACM conductors insulated with RW90 cross-linked polyethylene rated at 300 volts from #8 to #2 AWG. The bonding conductor is bare aluminum. These cables are made identically to the copper based ones.
NMD90 can be used in dry locations where it cannot be subject to mechanical damage. This product is available from #8 to #2 in two, three, or four copper conductors.
Stranded AA-8000 Series Aluminum Alloy (ACM)
Cross-linked Polyethylene (XLPE)
Stranded AA-8000 Series Aluminum Alloy (ACM)
Polyvinyl Chloride (PVC)
CSA C22.2 No. 48, Nonmetallic sheathed cable
CSA C22.2 No. 38, Thermoset-insulated wires and cables
CSA C22.2 No. 2556, FT1 Vertical Propagation Flame Test
Rated at 90°C dry
Rated at -25°C
300V
Insulation in colors according to the manufacturing standard.
| Power Conductor | Bonding Conductor |
Insulation Thickness |
Jacket Thickness |
Cable Overall Diameter |
Cable Weight |
Ampacity | |||||
| Conductor Count | AWG | AWG | in | mm | in | mm | in | mm | lbs | kg | A |
| 8 | 10 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.535 | 13.6 | 123 | 183 | 45 |
| 6 | 8 | 10/1 | 0.045 | 1.14 | 0.045 | 1.1 | 0.651 | 16.5 | 183 | 272 | 55 |
| 4 | 6 | 8/7 | 0.045 | 1.14 | 0.060 | 1.5 | 0.776 | 19.7 | 275 | 409 | 75 |
| 2 | 6 | 8/7 | 0.045 | 1.14 | 0.080 | 2.0 | 0.936 | 23.8 | 404 | 601 | 100 |
