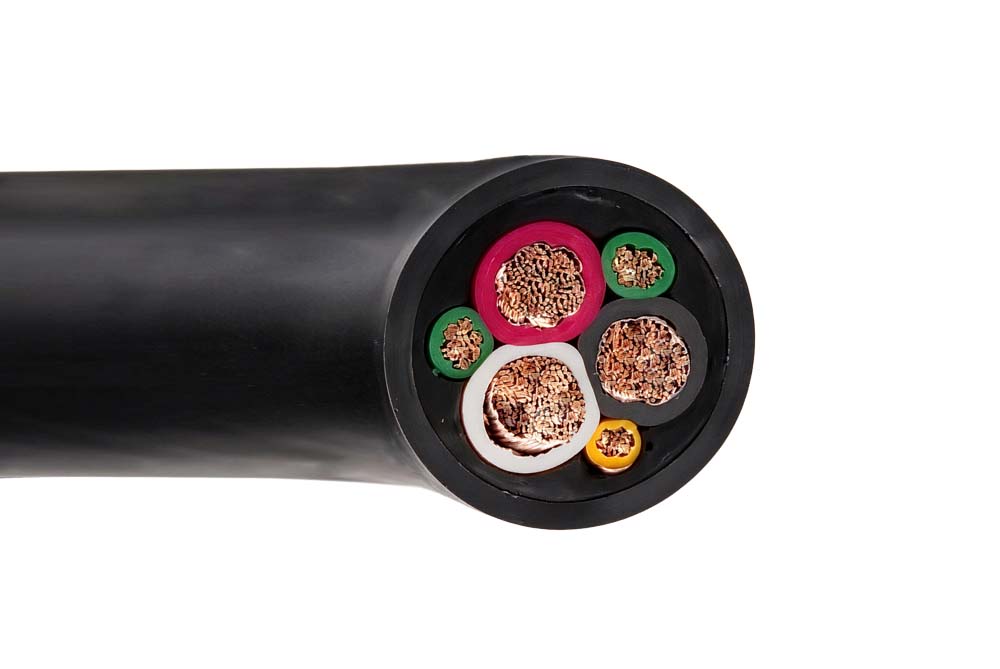

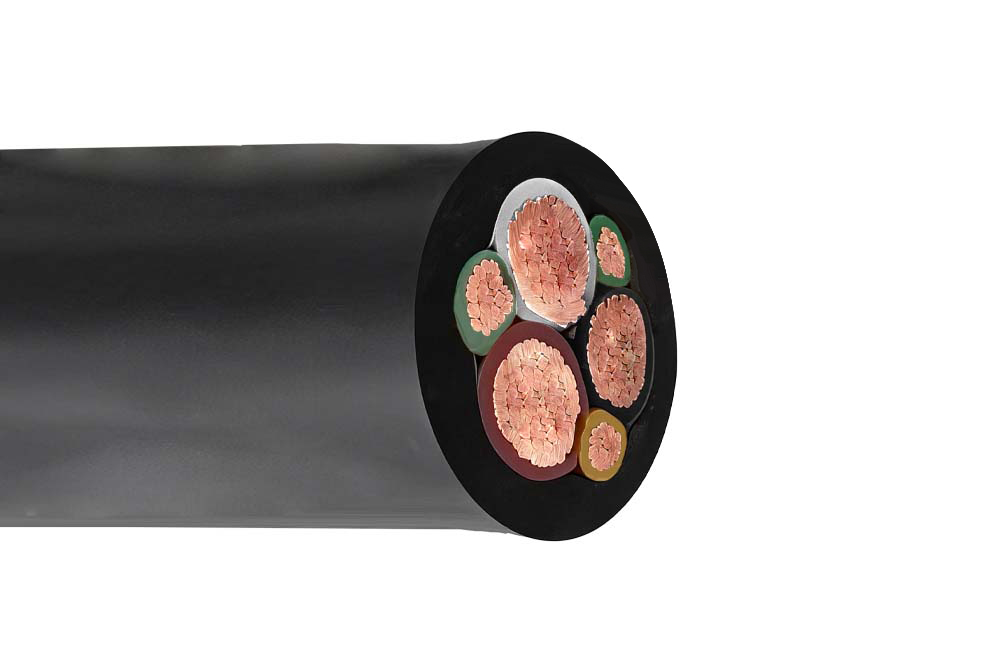

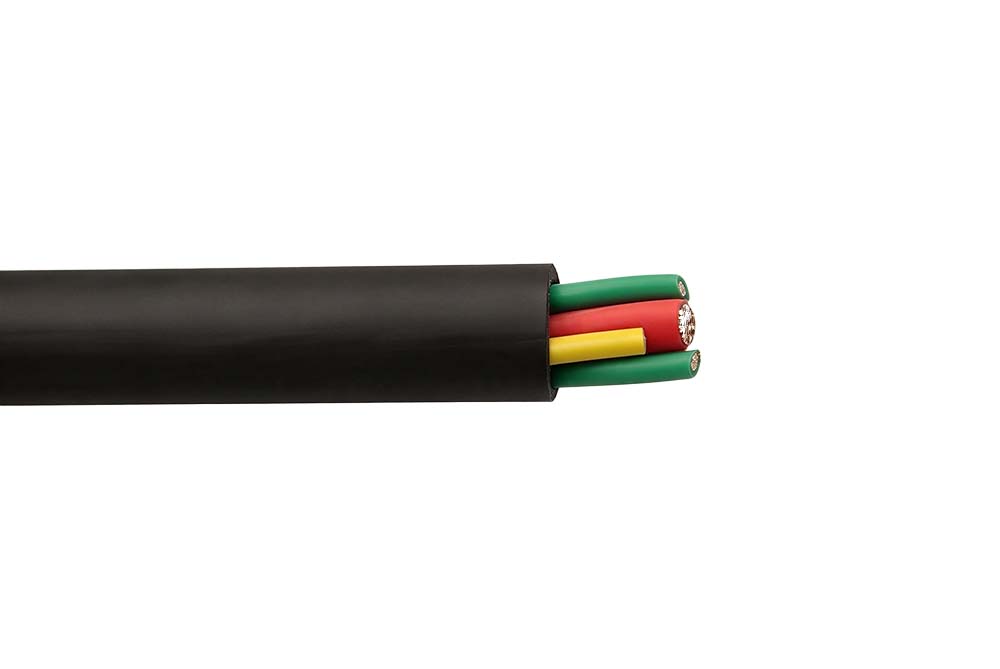

| Type G-GC Mining Cable | ||
| Voltage: | 2kV | |

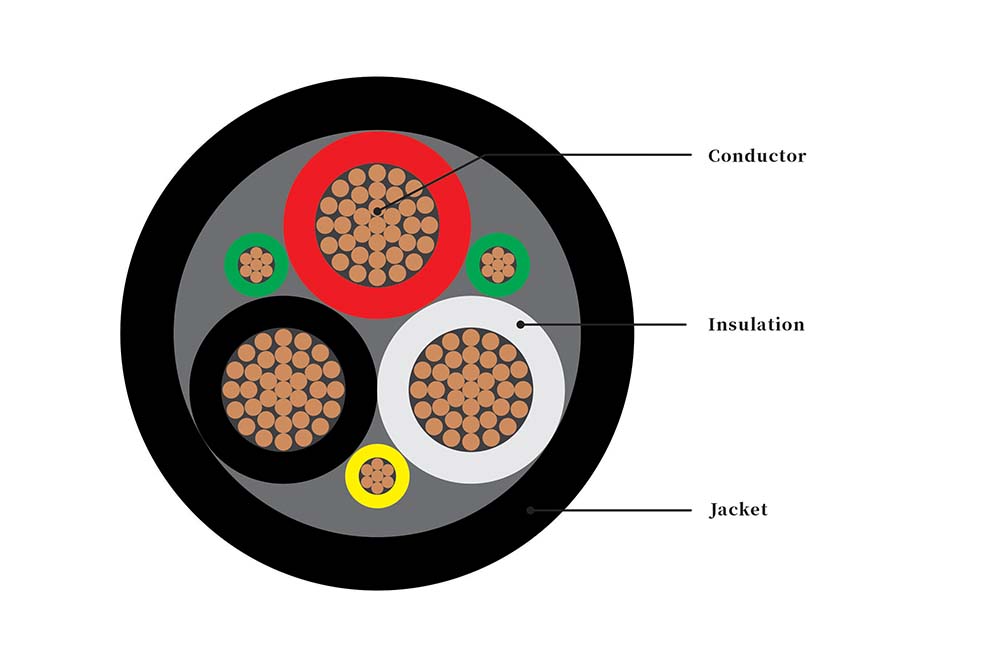

| Structure: | Conductor | Flexible strand soft drawn bare copper conductor, per ICEA S-75-381 |
| Insulation | Ethylene propylene diene monomer EPDM insulation | |
| Jacket | Black chlorinated polyethylene CPE jacket | |
| Color code | Black, White, Red, Yellow with Green Grounds | |
Type G-GC is for use in heavy duty service as a power supply cable for: mobile and portable mining equipment, loaders, conveyors, pumps, drills and cutters, where flex life is required and for systems that require an internal ground check conductor, for added safety. Type G-GC is for applications up to 2000 volts and temperatures from -40°C to +90°C.
2kV
-40°C to +90°C
UL 44, 1581
NEMA WC58
ICEA S-95-658
C(UL) FT1 & FT5 flame tests
Type G-GC has a flexible strand soft drawn bare copper conductor, per ICEA S-75-381
Type G-GC has ethylene propylene diene monomer EPDM insulation
Type G-GC has a black chlorinated polyethylene CPE jacket, which is water, chemical, sunlight and abrasion resistant.
Black White Red Yellow with Green Grounds
| Size AWG | No. of Cond. | Conductor Strand | Ground Conductor Size | Ground Check Size | Nominal Insulation Thickness | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Overall Diameter | Net Weight | Current Amps* |
| AWG | AWG | Inches | mm | Inches | mm | lbs./M | ||||
| 8 | 3 | 133 | 2#10 | 10 | 0.060 | 1.52 | 0.965 | 24.51 | 665 | 59 |
| 6 | 3 | 259 | 2#10 | 10 | 0.060 | 1.52 | 1.050 | 26.67 | 830 | 79 |
| 4 | 3 | 259 | 2#8 | 10 | 0.060 | 1.52 | 1.190 | 29.59 | 1145 | 114 |
| 2 | 3 | 259 | 2#7 | 10 | 0.060 | 1.52 | 1.340 | 34.04 | 1485 | 138 |
| 1 | 3 | 259 | 2#6 | 8 | 0.080 | 2.03 | 1.510 | 38.35 | 2100 | 161 |
| 1/0 | 3 | 259 | 2#5 | 8 | 0.080 | 2.03 | 1.650 | 41.91 | 2550 | 186 |
| 2/0 | 3 | 259 | 2#4 | 8 | 0.080 | 2.03 | 1.750 | 44.45 | 3020 | 215 |
| 3/0 | 3 | 259 | 2#3 | 8 | 0.080 | 2.03 | 1.890 | 48.01 | 3660 | 249 |
| 4/0 | 3 | 259 | 2#2 | 8 | 0.080 | 2.03 | 2.040 | 51.82 | 4410 | 287 |
| 250 | 3 | 627 | 2#1 | 8 | 0.095 | 2.41 | 2.390 | 60.71 | 6060 | 320 |
| 350 | 3 | 855 | 2#1/0 | 8 | 0.095 | 2.41 | 2.680 | 68.07 | 7400 | 394 |
| 500 | 3 | 1235 | 2#2/0 | 8 | 0.095 | 2.41 | 3.030 | 76.96 | 10100 | 487 |
