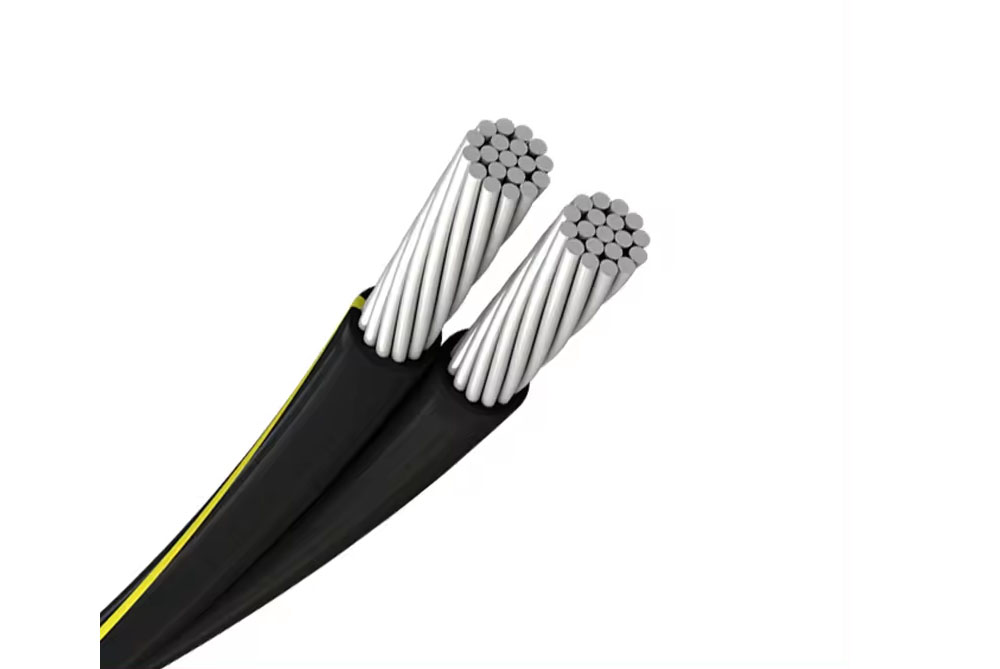

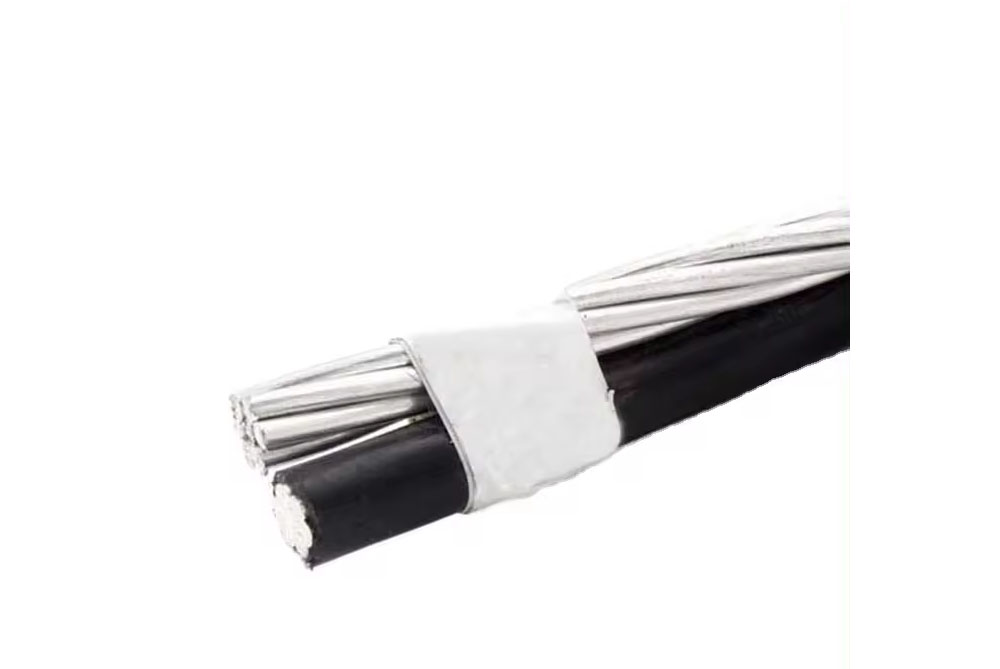

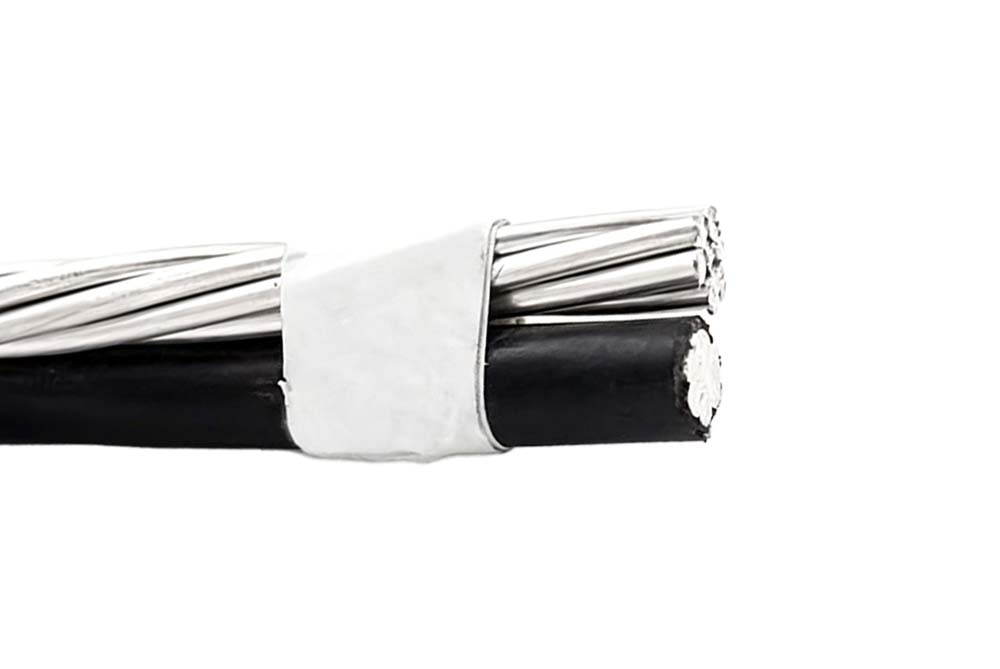

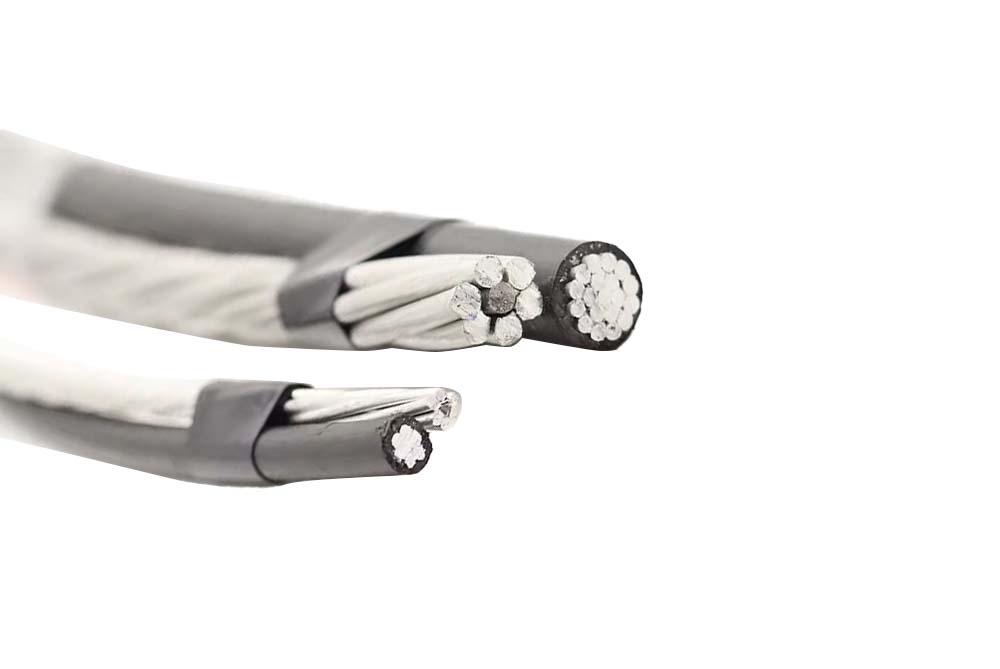

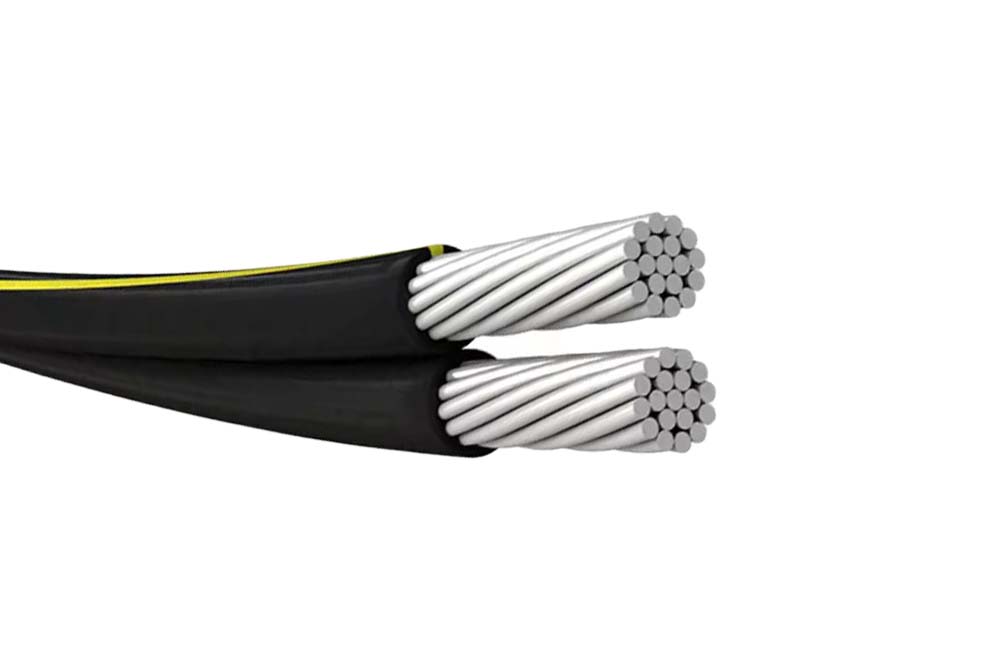

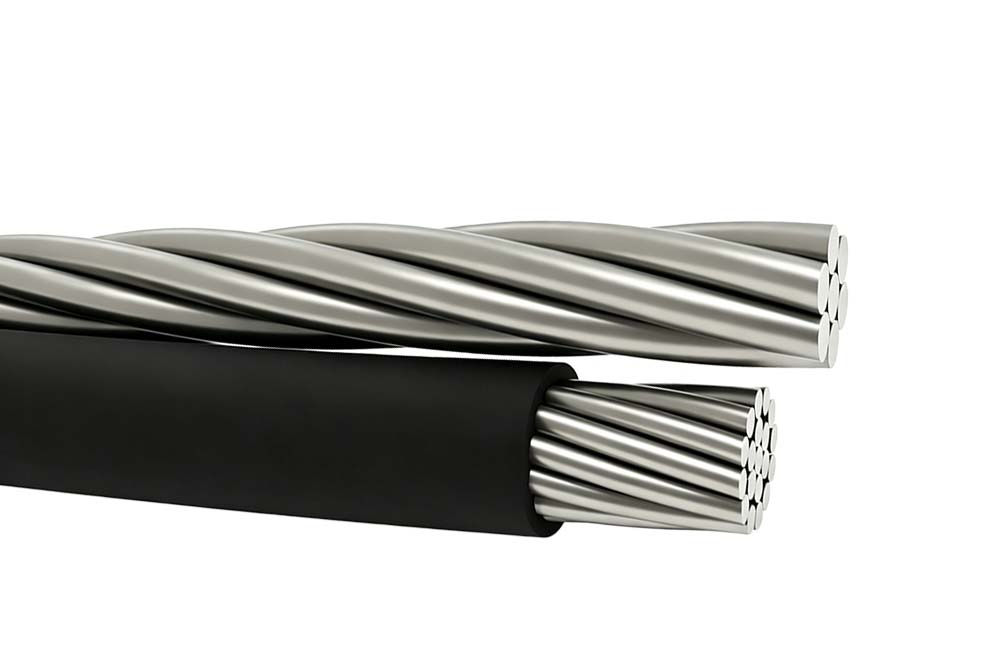

| Duplex Service Drop Wire | ||
| Voltage: | 0.6/1kV | |

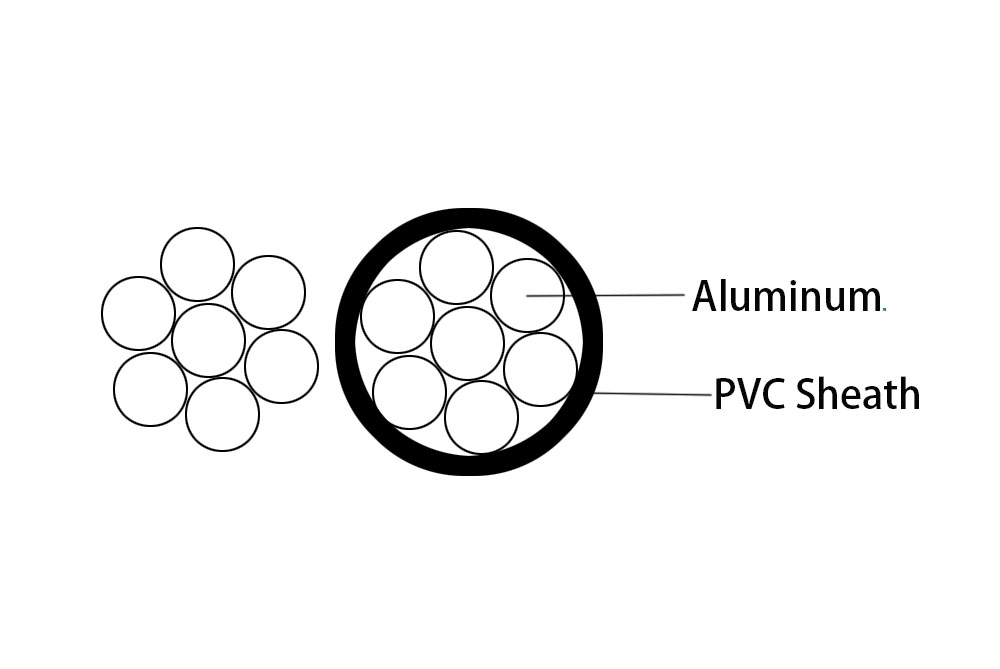

| Structure: | Conductor | ALUMINUM |
| Insulation | XLPE | |
| Armour | CAN | |
| Jacket | PVC | |
Primarily used for 120 volt overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. To be used at voltage of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene(XLPE) insulated conductors.
ASTM B230, B231, B232 and B-399 ,B498,ICEA S-76-474

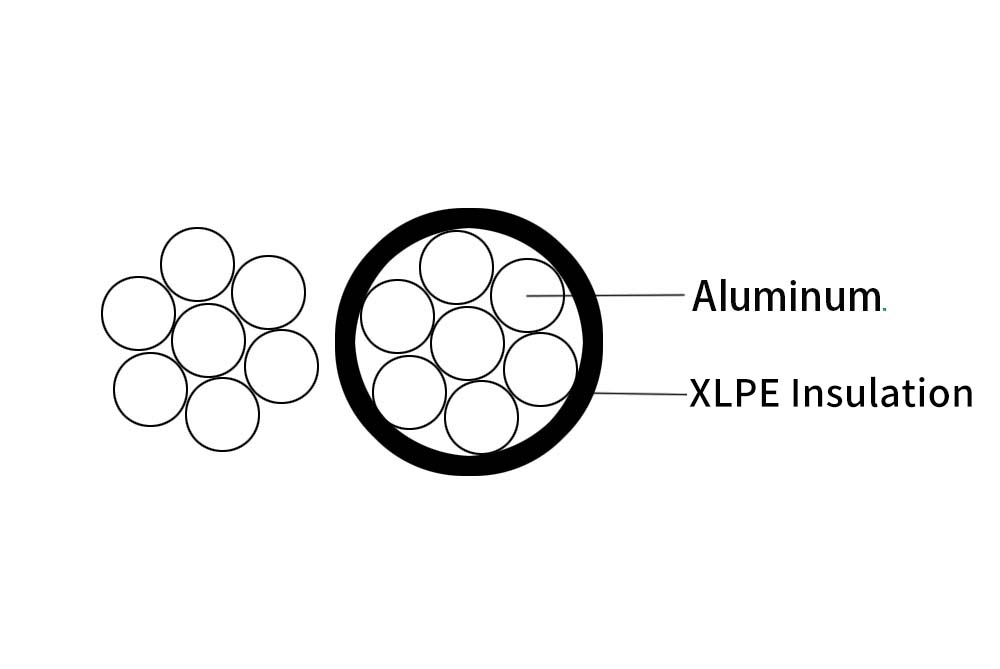

The phase conductors are concentrically stranded compressed 1350-H19 aluminum and insulated polyethylene or crosslinked polyethylene(XLPE), The neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy.
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | ||||
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | |
| AWG | - | mil | AWG | - | lbs/1000ft | ||
| AAC Neutral Messenger | |||||||
| Pekingese | 6 | Solid | 45 | 6 | 7/w | 63.5 | 61.7 |
| Collie | 6 | 7/w | 45 | 6 | 7/w | 66.8 | 63.1 |
| Dachshund | 4 | Solid | 45 | 4 | 7/w | 95.5 | 93.4 |
| Spaniel | 4 | 7/w | 45 | 4 | 7/w | 100.5 | 95.4 |
| Doberman | 2 | 7/w | 45 | 2 | 7/w | 152.7 | 145.7 |
| Malemute | 1/0 | 19/w | 60 | 1/0 | 7/w | 242.6 | 234.2 |
| 6201 Alloy Neutral Messenger | |||||||
| Chihuahua | 6 | Solid | 45 | 6 | 7/w | 67.6 | 65.8 |
| Vizsla | 6 | 7/w | 45 | 6 | 7/w | 70.9 | 67.2 |
| Harrier | 4 | Solid | 45 | 4 | 7/w | 102 | 99.9 |
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | ||||
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | |
| AWG | - | mil | AWG | - | lbs/1000ft | ||
| ACSR Neutral Messenger | |||||||
| Setter | 6 | Solid | 45 | 6 | 6/1 | 75 | 73.2 |
| Shepherd | 6 | 7/w | 45 | 6 | 6/1 | 78.3 | 74.6 |
| Eskimo | 4 | Solid | 45 | 4 | 6/1 | 113.7 | 111.6 |
| Terrier | 4 | 7/w | 45 | 4 | 6/1 | 118.7 | 113.6 |
| Chow | 2 | 7/w | 45 | 2 | 6/1 | 181.7 | 174.7 |
| Bull | 1/0 | 19/w | 60 | 1/0 | 6/1 | 288.7 | 280.3 |
| 6201 Alloy Neutral Messenger | |||||||
| Whippet | 4 | 7/w | 45 | 4 | 7/w | 107 | 101.9 |
| Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 163.3 | 156.2 |
| Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 259.2 | 250.8 |
Note:
(1)Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
(2)Conductor temperature of 90°C for XLPE, 75°C for PE; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
