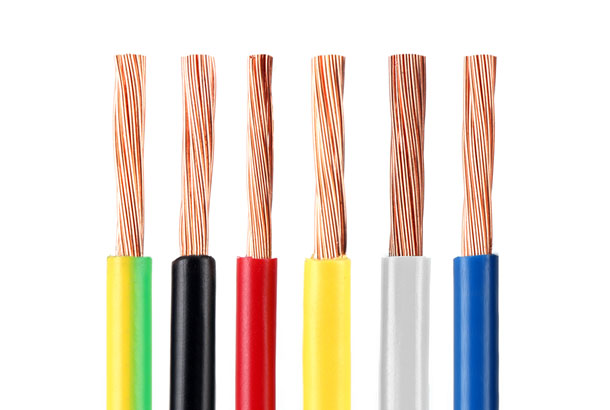

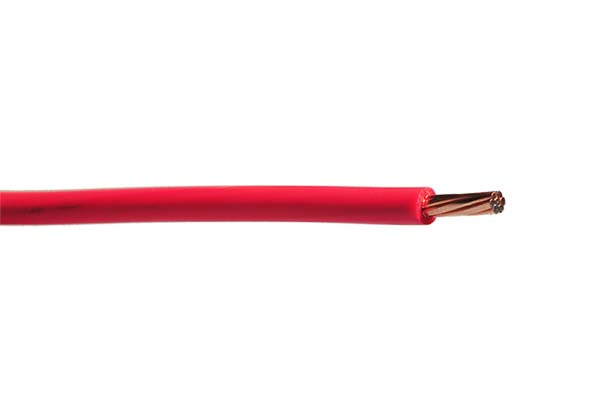

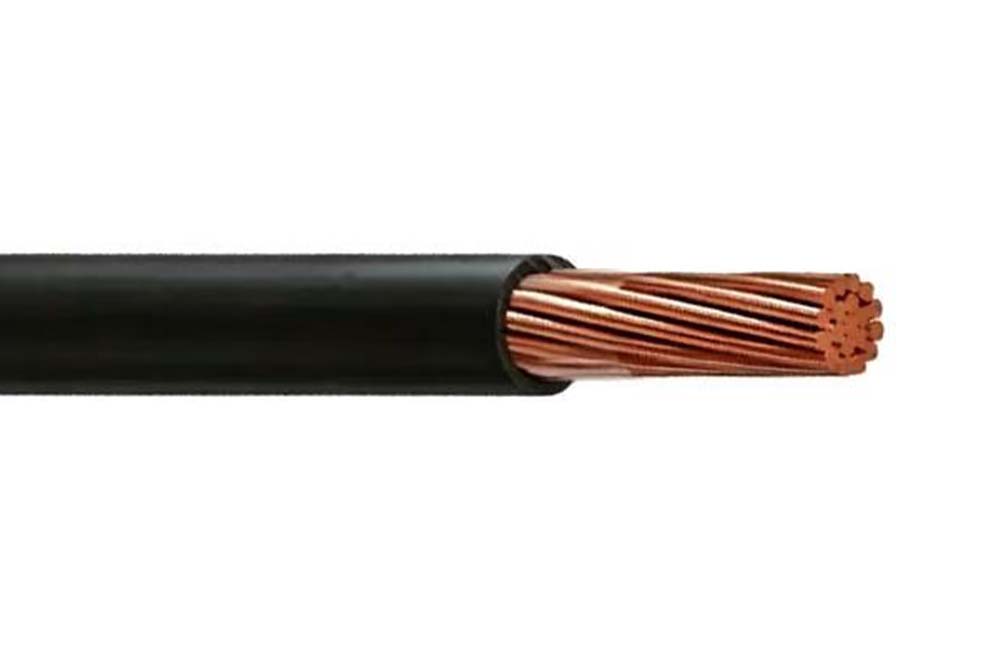

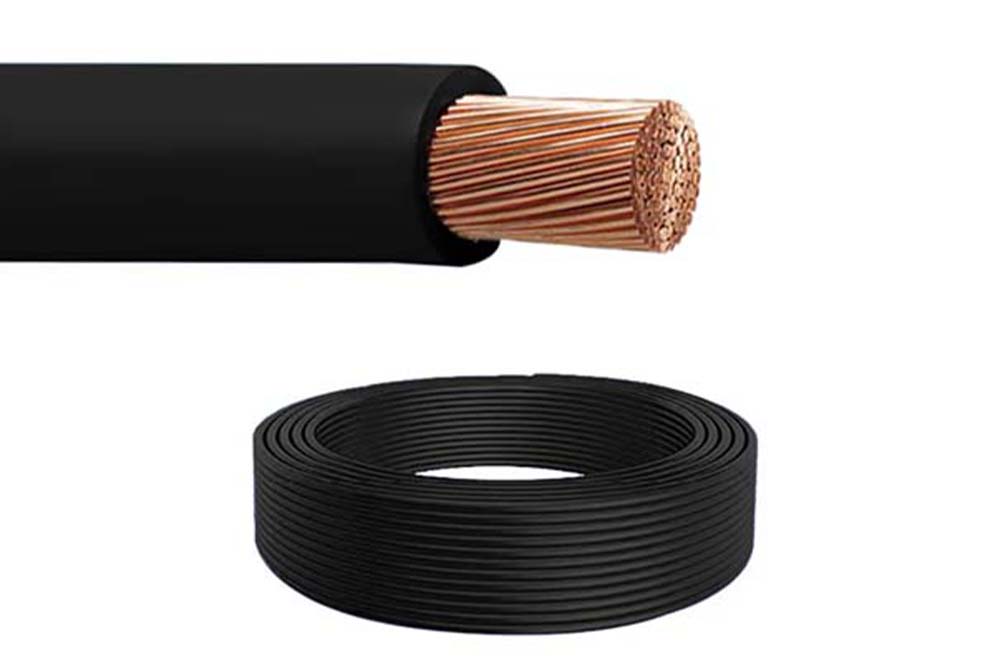

| RHH Copper Conductor Cable | ||
| Voltage: | 600V | |

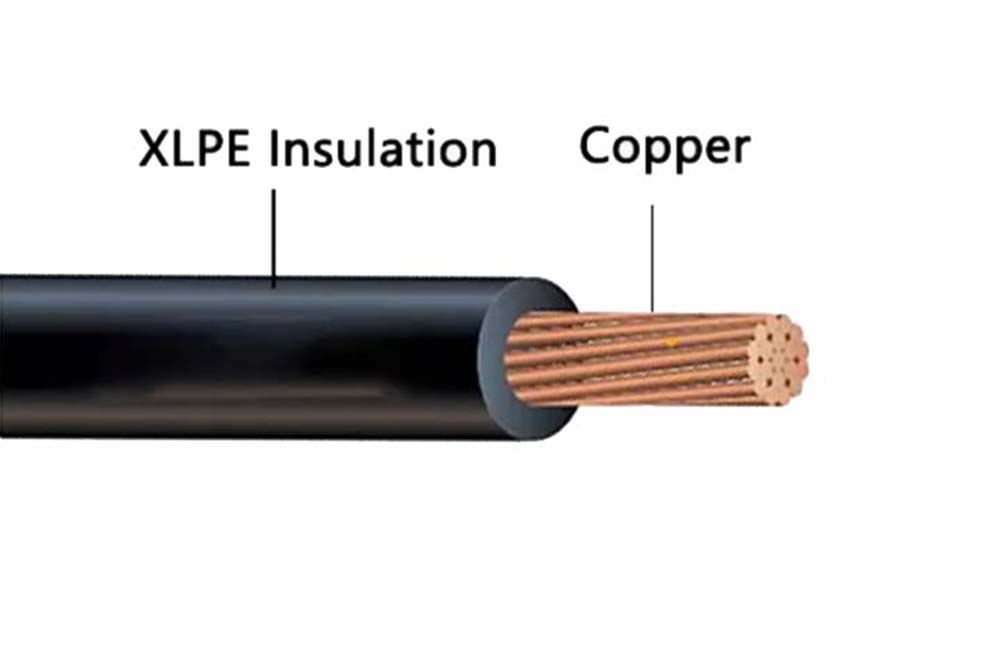

| Structure: | Conductor | Bare copper per ASTM B3. Stranding is either Class B compressed per ASTM B8 or combination unilay per ASTM B787 |
| Insulation | Cross Linked Polyethylene (XLPE) , Silicone-Free, Abrasion, High-Heat, Moisture Resistant | |

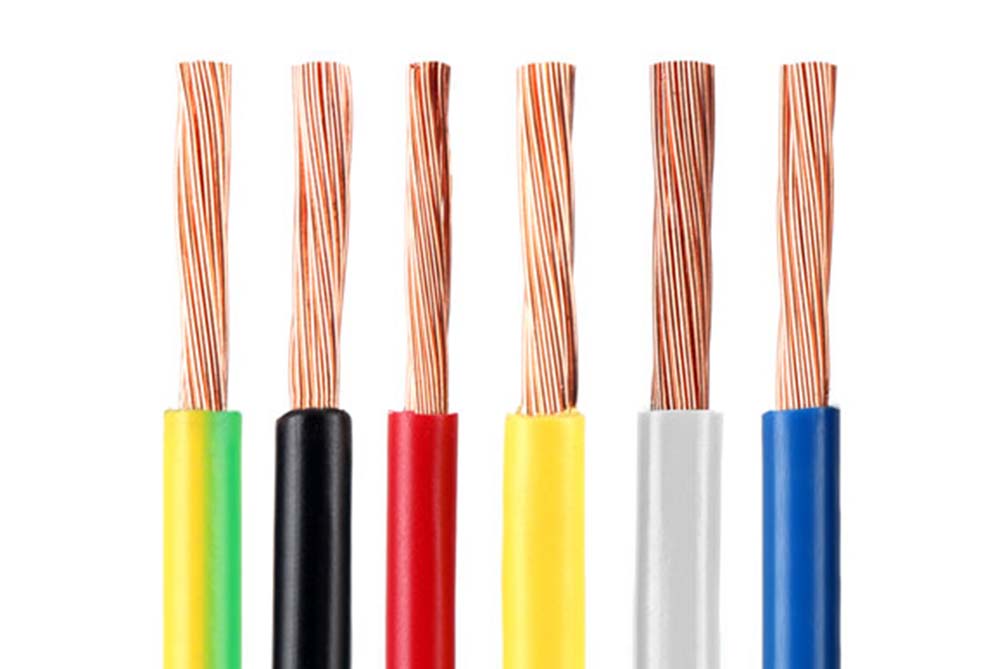

| Colour Code | Black, Customized as needed | |
RHH power cables are suited for use in wet and dry areas, conduits, ducts,troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired.
Bare copper per ASTM B3. Stranding is either Class B compressed per ASTM B8 or combination unilay per ASTM B787
Cross Linked Polyethylene (XLPE) , Silicone-Free, Abrasion, High-Heat, Moisture Resistant
ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
UL 44 Thermoset-Insulated Wires and Cables
90°C dry
600V
Insulation in colors according to the manufacturing standard.
| Cond. Size | Strand Count | Diameter Over Conductor | Insul. Thickness | Approx OD | Copper Weight | Approx Weight |
| AWG/Kcmil | No. of Strands | inch | mil | inch | lb/1000ft | lb/1000ft |
| 14 | 7 | 0.07 | 45 | 0.161 | 12 | 20 |
| 12 | Solid | 0.08 | 45 | 0.174 | 19 | 28 |
| 12 | 7 | 0.088 | 45 | 0.179 | 20 | 28 |
| 10 | 7 | 0.113 | 45 | 0.203 | 32 | 42 |
| 8 | 7 | 0.141 | 60 | 0.259 | 95 | 67 |
| 6 | 7 | 0.177 | 60 | 0.3 | 81 | 102 |
| 4 | 7 | 0.225 | 60 | 0.345 | 128 | 153 |
| 3 | 7 | 0.252 | 60 | 0.378 | 162 | 191 |
| 2 | 7 | 0.282 | 60 | 0.403 | 205 | 244 |
| 1 | 19 | 0.322 | 80 | 0.481 | 258 | 304 |
| 1/0 | 19 | 0.361 | 80 | 0.522 | 325 | 390 |
| 2/0 | 19 | 0.405 | 80 | 0.564 | 410 | 481 |
| 3/0 | 19 | 0.456 | 80 | 0.616 | 518 | 598 |
| 4/0 | 19 | 0.512 | 80 | 0.672 | 653 | 742 |
| 250 | 37 | 0.558 | 95 | 0.748 | 771 | 884 |
| 300 | 37 | 0.61 | 95 | 0.801 | 926 | 1023 |
| 350 | 37 | 0.661 | 95 | 0.851 | 1081 | 1213 |
| 400 | 37 | 0.705 | 95 | 0.896 | 1235 | 1345 |
| 500 | 37 | 0.789 | 95 | 0.956 | 1544 | 1696 |
| 600 | 61 | 0.865 | 110 | 1.085 | 1853 | 2028 |
| 750 | 61 | 0.968 | 110 | 1.171 | 2315 | 2492 |
| 1000 | 61 | 1.117 | 110 | 1.337 | 3088 | 3283 |
